XT90 High-Current Power Connectors

The Foundation of Reliable Power Delivery

The XT90 High-Current Power Connector is a robust electrical interface engineered for demanding applications in RC Lipo batteries, drones, boats, and electric vehicles. This connector system prioritizes secure, high-amperage power transfer, a critical requirement for performance and safety in hobby and light industrial contexts. Its design directly addresses the common failure points found in less capable connectors, ensuring consistent electrical integrity.

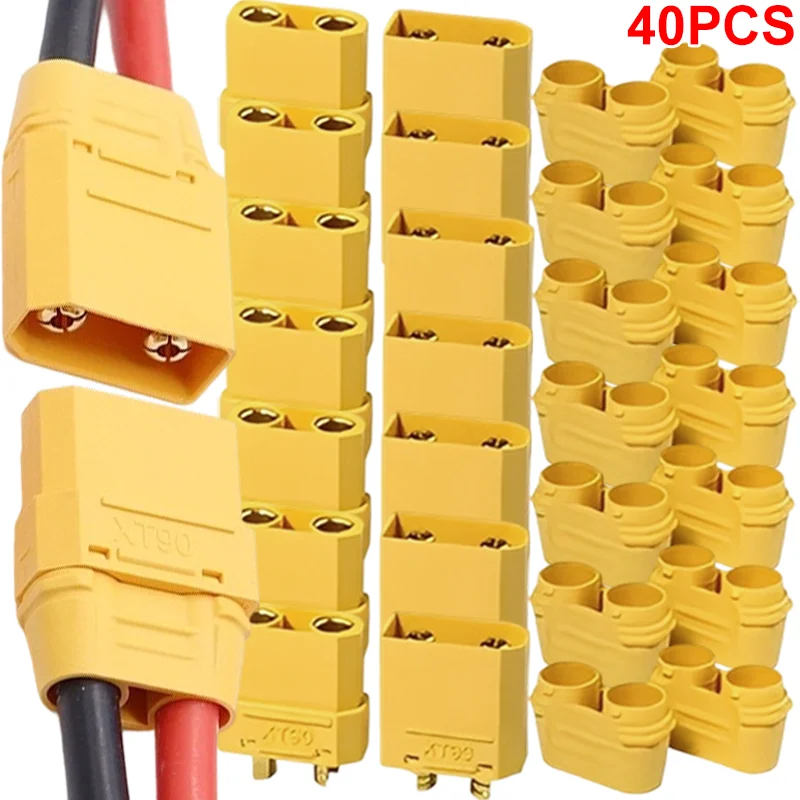

The visible construction immediately conveys a commitment to electrical safety and performance. The bright yellow housing, a hallmark of XT-series connectors, is crafted from a fire-retardant nylon material. This choice is not merely aesthetic; nylon offers superior thermal stability and mechanical strength compared to standard plastics, crucial for connectors handling significant power. The internal terminals are gold-plated copper, a material combination selected for its exceptional electrical conductivity and resistance to oxidation. Gold plating minimizes contact resistance, which directly translates to less heat generation and more efficient power delivery. This is a vital detail.

Compared to generic connectors that often utilize tin-plated brass or lower-grade plastics, the XT90's material specification represents a significant upgrade. Tin plating, while cost-effective, can degrade over time, leading to increased resistance and potential hotspots. The fire-retardant nylon housing provides an essential layer of protection against thermal runaway, a serious concern in high-current battery applications. This material choice directly contributes to preventing electrical fires, a paramount safety consideration for any certified electrician. The robust construction is evident.

Engineering for Simplified Assembly and Durability

One of the most compelling features of these XT90 connectors is their integrated cover caps, which simplify the assembly process considerably. Unlike many traditional bullet connectors that necessitate separate heat shrink tubing to insulate solder joints and provide strain relief, these XT90 connectors incorporate this functionality directly into their design. The cover caps click securely into place after soldering, providing a neat, insulated, and mechanically robust finish. This eliminates an entire step in the wiring process.

This integrated design offers tangible benefits for both experienced hobbyists and those new to electrical assembly. The removal of the heat shrink requirement saves time, reduces material costs, and results in a cleaner, more professional-looking installation. Furthermore, the cover caps provide a larger surface area for gripping, making plugging and unplugging the connectors easier and reducing strain on the soldered wire connections. This ergonomic improvement prevents accidental wire detachment, a common frustration. Secure handling is important.

Standard connectors often require meticulous application of heat shrink, which can be inconsistent if not done correctly, potentially leaving exposed conductors or inadequate strain relief. The XT90's integrated solution provides a consistent, factory-engineered level of protection every time. This consistency is a significant advantage, particularly in applications where connections are frequently made and broken, such as swapping Lipo batteries in RC models. The design is thoughtful.

Operational Resilience Across Environments

The operational resilience of these XT90 connectors is further underscored by their wide operating temperature range, specified from -20°C to 120°C. This broad thermal tolerance ensures reliable performance across a diverse array of environmental conditions, from cold outdoor flying sessions with drones to the elevated temperatures often found within enclosed RC car chassis or boat compartments. Extreme temperatures are managed.

For users operating RC vehicles in varied climates, this temperature rating is not merely a specification; it is a guarantee of consistent electrical performance. Connectors with narrower temperature ranges can become brittle in cold conditions, leading to cracking, or soften and deform under heat, compromising the integrity of the connection. The XT90's ability to withstand such a wide spectrum of temperatures means less concern about connector failure due to environmental stress. This enhances overall system reliability. Performance remains stable.

Many lower-cost connectors are not rated for such extremes, making them unsuitable for serious hobbyists or professional applications where reliability in harsh conditions is paramount. The fire-retardant nylon, combined with the robust terminal design, maintains its structural and electrical properties throughout this range. This capability ensures that the power delivery system remains stable and safe, regardless of whether the drone is flying in winter or the RC car is running hard on a hot track. This is a key differentiator.

The Critical Role of Proper Wiring

The product imagery explicitly recommends using 10AWG wire to connect with XT90 connectors. This recommendation is not arbitrary; it is a critical safety and performance guideline that must be strictly adhered to. American Wire Gauge (AWG) specifies the diameter of electrical conductors, with lower numbers indicating thicker wires capable of carrying higher currents without excessive resistance or heat generation. Wire gauge matters greatly.

In high-current applications, selecting the correct wire gauge is paramount to prevent overheating, voltage drop, and potential fire hazards. An undersized wire attempting to carry the 90A continuous current that XT90 connectors are rated for would quickly become a resistive heater, melting insulation, damaging components, and posing a severe safety risk. The 10AWG recommendation ensures that the wire itself can safely handle the current capacity of the connector, creating a balanced and safe electrical circuit. This prevents dangerous situations.

Unlike situations where users might guess or use whatever wire is on hand, the explicit 10AWG recommendation for these XT90 connectors provides a clear directive for safe operation. Ignoring this guideline can lead to catastrophic failure, even if the connectors themselves are robust. A properly sized wire ensures that the entire power path, from battery to motor, operates efficiently and safely, maximizing the lifespan of components and protecting the user. Safety protocols are non-negotiable.

Mitigating Common Electrical Frustrations

Many enthusiasts and professionals encounter frustrations with electrical connections: intermittent power, accidental disconnections, or difficult assembly. These issues often stem from poorly designed connectors or inadequate installation methods. The XT90 system directly addresses these pain points through its thoughtful engineering. Unreliable connections are a major headache.

The click-lock mechanism integrated into the XT90 design provides a tactile and audible confirmation of a secure connection. This feature is invaluable in preventing accidental disconnections caused by vibration, impacts, or simply pulling on the wires during handling. Once engaged, the connection resists separation, ensuring continuous power flow to critical components. This prevents unexpected power loss during operation, which can be dangerous for drones or RC vehicles. A firm connection is assured.

Furthermore, the robust gold-plated copper terminals maintain consistent contact pressure over time, resisting the loosening and corrosion that can plague cheaper connectors. This sustained low-resistance connection minimizes power loss and heat buildup, contributing to the longevity of both the connector and the connected devices. The design ensures that the user spends less time troubleshooting and more time enjoying their hobby or working on their project. Reliability is built-in.

Imagine the confidence of knowing your high-power RC drone will maintain its connection through aggressive maneuvers, or that your electric boat will not suffer power interruptions mid-race. These XT90 connectors provide that assurance, allowing you to focus on performance rather than worrying about electrical failures. The simplified assembly means less time soldering and more time enjoying your creations, knowing that the power delivery system is robust, safe, and engineered for the demands of high-current applications. This is an investment in peace of mind and operational excellence, ensuring your projects run smoothly and safely for years to come.
