XH2.54 2.54mm Pitch Connector Kit

Precision Interconnects for Modern Electronics

The XH2.54 Connector Kit is a fundamental assortment of electrical interconnects, critically important for reliable low-current signal and power distribution in various electronic assemblies. This collection provides a standardized solution for creating secure, detachable wire-to-board and wire-to-wire connections. The components are designed to meet the demands of prototyping, repair, and small-scale manufacturing, ensuring electrical continuity and mechanical stability. It is a practical investment.

The Architecture of Connection: Housing Integrity

The kit prominently features white plastic housings for both male and female connectors, available in common pin configurations: 2-pin (2P), 3-pin (3P), 4-pin (4P), and 5-pin (5P). These housings are molded from a dielectric polymer, typically nylon or a similar engineering plastic, chosen for its insulating properties and moderate mechanical strength. The visual consistency across the various pin counts suggests a uniform manufacturing process. Each housing is designed to precisely mate with its counterpart, ensuring a snug fit.

This range of pin counts allows for flexible wiring solutions, accommodating simple power leads up to multi-channel signal lines. The modular nature of these connectors simplifies circuit design and modification. Unlike direct soldering, which creates permanent bonds, these connectors enable easy assembly and disassembly for maintenance or upgrades. This modularity is a significant advantage.

Compared to makeshift wire splices or less standardized connection methods, the XH2.54 system provides a professional, repeatable, and secure electrical interface. The standardized 2.54mm pitch is a widely adopted dimension in electronics, making these connectors compatible with many existing breadboards, prototyping boards, and PCB layouts. This broad compatibility reduces integration challenges. The housings protect the electrical contacts from accidental short circuits and environmental contaminants, enhancing overall system reliability.

Conductor Engagement and Terminal Integrity

Accompanying the plastic housings are a substantial quantity of metal terminals, visible as small, silver-colored components. These terminals are typically constructed from tin-plated brass or phosphor bronze, materials selected for their excellent electrical conductivity and resistance to corrosion. The tin plating further enhances conductivity and solderability, while protecting the base metal from oxidation. These terminals are the heart of the connection.

Proper crimping of these terminals onto the wire conductors is paramount for achieving low resistance and reliable current flow. A correctly crimped connection ensures a gas-tight seal between the terminal and the wire strands, preventing oxidation and minimizing voltage drop. Poor crimps can lead to intermittent connections, increased resistance, and potential overheating, which compromises safety and performance. The quality of the crimp directly impacts the circuit's longevity.

Unlike inferior terminals that may deform easily or corrode rapidly, the visible quality of these terminals suggests a standard level of durability for their intended low-current applications. The sheer volume provided in the kit allows for practice and error correction during the crimping process, which is beneficial for both novices and experienced technicians. This abundance minimizes waste. Investing in a proper crimping tool is essential to maximize the performance and reliability of these terminals, ensuring each connection is robust and secure.

The Value of a Comprehensive Assortment

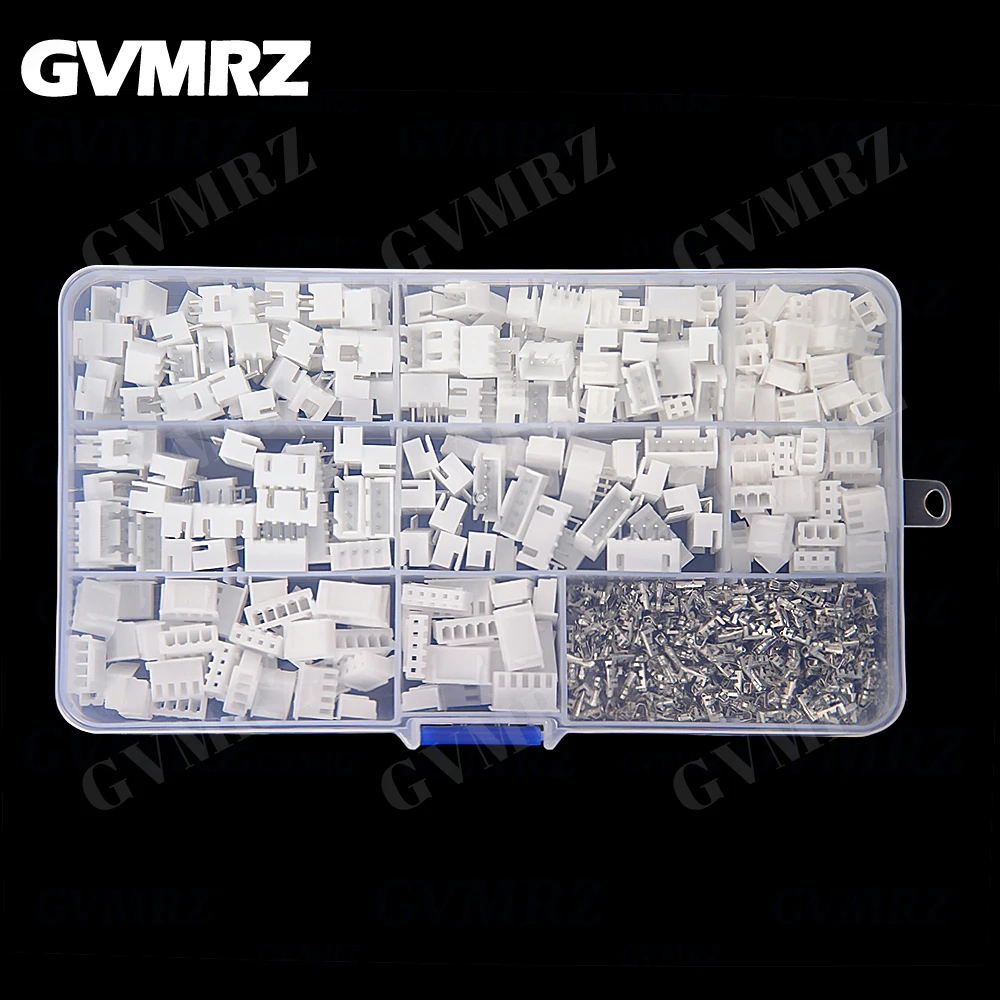

This kit boasts a substantial quantity of 720 pieces, encompassing a wide array of male and female housings and the necessary metal terminals. The components are neatly organized within a clear, compartmentalized plastic case, which is crucial for inventory management and ease of access. This organization prevents component mix-ups. The clear lid allows for quick visual identification of contents, saving valuable time during project assembly.

Such a comprehensive assortment significantly reduces project delays by ensuring that the required connectors are readily available. For hobbyists, students, or professionals engaged in prototyping and repair, having a diverse stock of common connectors on hand eliminates the need for frequent, small-quantity orders. This immediate availability streamlines workflow. It allows for continuous progress on projects without waiting for parts to arrive, which is a common frustration in electronics work.

From a value perspective, purchasing this bulk kit is considerably more cost-effective than acquiring individual components or smaller packs. The cost-per-connector is substantially lower, representing a smart investment for anyone regularly working with electronic circuits. This economic advantage is clear. It prevents the scenario where a project is stalled due to the lack of a single, inexpensive connector, ultimately saving both time and money in the long run. The kit provides a ready supply for multiple projects.

Ensuring Electrical Safety and Reliability

Electrical safety is non-negotiable in any circuit design. These XH2.54 connectors are designed for specific current and voltage ratings, typically in the low-amperage range suitable for signal and control applications. It is imperative to understand these limitations. Exceeding the rated current capacity can lead to connector overheating, insulation degradation, and potentially fire hazards. Proper circuit design must always account for these ratings.

Selecting the correct wire gauge for the intended current load is equally critical. The terminals are designed to accept specific wire sizes, usually 22-28 AWG. Using wires that are too thin for the current can cause excessive heat generation, while wires that are too thick may not crimp properly or fit into the housing. The integrity of the insulation on the wires and the connectors themselves prevents unintended contact and short circuits. Regular inspection of connections is advised.

Unlike high-power industrial connectors, these components are not typically rated for high voltage or high current applications. Misapplication can lead to serious safety risks. Compliance with relevant electrical safety standards, even for hobby projects, is a professional responsibility. The user must ensure that the entire circuit, including these connectors, operates within safe parameters. This vigilance prevents failures. Understanding the thermal characteristics of the connection under load is essential to prevent any form of electrical failure or fire.

Practical Applications and Prototyping Efficiency

This XH2.54 connector kit finds its primary utility in a wide array of low-voltage electronic applications. It is ideal for connecting components to printed circuit boards (PCBs), creating modular wiring harnesses for small embedded systems, and facilitating connections in RC models, robotics, and various DIY electronics projects. The connectors are versatile.

For prototyping new circuit boards, these connectors facilitate quick and easy connection and disconnection of sensors, displays, and power modules. This modularity allows for rapid iteration and testing of different circuit configurations without the need for constant soldering and desoldering. In a scenario where a hobbyist is building a drone, these connectors enable easy replacement of motors or flight controllers. This capability significantly speeds up the development cycle.

Furthermore, in situations requiring quick field repairs or modifications, the ability to easily swap out components connected via XH2.54 connectors is invaluable. This kit enhances the capability to build, repair, and prototype electronic circuits efficiently and reliably. The standardized nature of the XH2.54 pitch ensures that these connectors will integrate seamlessly into a vast ecosystem of existing electronic components and development boards. This broad compatibility is a major asset.

Installation Best Practices for Longevity

Achieving reliable connections with these XH2.54 terminals requires adherence to specific installation best practices. The most critical tool for this process is a dedicated crimping tool designed for JST-style connectors. Pliers or generic crimpers will not produce a gas-tight, secure crimp, leading to unreliable connections. Proper tools are essential.

When crimping, the wire's insulation should be stripped to the correct length, allowing the conductor to be fully engaged by the terminal's wire barrel, while the insulation barrel grips the wire's jacket for strain relief. The terminal must then be inserted into the plastic housing in the correct orientation until it clicks securely into place. This ensures mechanical and electrical integrity. A gentle tug on the wire confirms proper seating within the housing.

Avoiding common installation errors, such as over-stripping insulation, under-crimping, or misaligning terminals, will significantly extend the lifespan and reliability of the connections. These errors can lead to intermittent faults or complete circuit failure. Regular inspection of connections, especially in applications subject to vibration or movement, helps identify and rectify potential issues before they escalate. A well-executed connection is a lasting connection.

Imagine the satisfaction of completing complex electronic projects with clean, organized, and utterly reliable wiring. This kit provides the foundational components to achieve that level of professional finish and operational integrity. It empowers creators to build with confidence, knowing their connections are secure and their systems will perform as intended. The ease of modification and repair ensures that projects remain adaptable and maintainable over time, fostering a seamless and efficient workflow for all electronic endeavors.
