Expert Analysis Overview
The Universal DC Power Connector Adapter kit is a pragmatic solution designed for electronics technicians and DIY enthusiasts managing diverse power requirements. This assortment of barrel jack adapters addresses common connectivity challenges in low-voltage DC applications. It provides essential flexibility for power supply modifications, repairs, and prototyping without extensive soldering or custom cable fabrication. The visible components suggest a focus on utility and broad compatibility across standard DC barrel jack sizes.

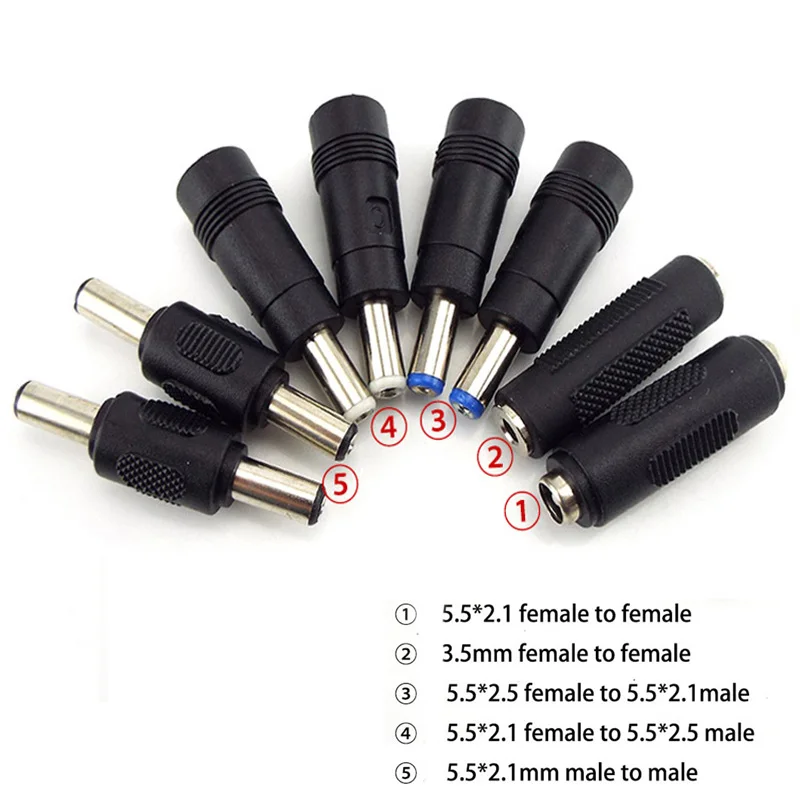

This collection primarily features adapters for 5.5x2.1mm and 5.5x2.5mm DC barrel connectors, alongside a 3.5mm audio-style jack adapter. The 5.5x2.1mm standard is prevalent in many consumer electronics, CCTV cameras, and LED lighting systems. The 5.5x2.5mm variant, slightly larger, is often found in laptops and higher-power devices, providing a more robust connection. The inclusion of 3.5mm adapters caters to legacy or specific audio equipment power needs.
Each adapter's construction appears to utilize a black molded plastic housing. This material choice offers electrical insulation and a degree of impact resistance for typical workshop environments. The metal contacts are visible, suggesting standard brass or nickel-plated steel, common for these types of low-cost connectors. Connections must be precise.
Unlike generic, unbranded adapters that often suffer from loose tolerances, these units appear to maintain consistent sizing. This consistency is critical for ensuring a secure physical fit and reliable electrical contact, preventing intermittent power loss or accidental disconnections. Many off-the-shelf power supplies provide only a single output type, making these adapters indispensable for adapting to various device inputs.
The kit offers a range of male-to-male, female-to-female, and male-to-female conversion options. For instance, the 5.5x2.1mm female-to-female adapter allows for extending existing DC power cables or converting a male-ended cable to a female connection. This simplifies wiring layouts. In contrast, the 5.5x2.1mm male-to-male adapter facilitates connecting two female-ended cables, often useful for bridging power sources or devices.
The 5.5x2.5mm female to 5.5x2.1mm male adapter is particularly useful for down-converting a power supply with a larger barrel jack to fit devices requiring the more common 5.5x2.1mm input. This avoids the need for multiple power bricks. Conversely, a 5.5x2.1mm female to 5.5x2.5mm male adapter allows for using a 5.5x2.1mm power supply with a device that demands the larger 5.5x2.5mm input. Such versatility is a significant advantage.
These adapters provide a quick, reversible connection, unlike direct soldering. This modularity is invaluable during troubleshooting or when experimenting with different power configurations. Standard power supplies often lack such inherent flexibility, forcing users into costly replacements or complex modifications. The ability to quickly swap connector types reduces downtime and increases project efficiency.
The external plastic molding provides insulation. The internal metal contacts are crucial for signal integrity. While the specific plating material is not explicitly stated, the metallic sheen suggests nickel or chrome over brass, which offers good conductivity and corrosion resistance for indoor use. These materials are standard. The ribbed texture on some adapters enhances grip during connection and disconnection.
For low-voltage DC applications, maintaining a clean signal pathway is paramount to prevent voltage drops and power fluctuations. Poorly constructed adapters can introduce resistance, leading to power loss or even damage to sensitive electronics. The visible construction implies a direct, unshielded connection, typical for barrel jacks. This design is adequate for its intended purpose.
Compared to cheap, flimsy alternatives, the apparent solid construction of these adapters suggests a reasonable level of durability. They are not designed for high-flex or high-stress environments, but for static connections in a workshop or home setup, they should perform reliably. The cost-effectiveness of these components makes them an attractive alternative to replacing entire power supplies or devices due to incompatible connectors.
Consider a scenario where a technician needs to power a new development board that requires a 5.5x2.5mm input, but only a 5.5x2.1mm power supply is available. This kit provides the necessary adapter, preventing project delays. Similarly, for repairing a laptop charger with a damaged barrel connector, these adapters can facilitate testing with alternative power sources without requiring immediate, invasive repairs. This saves time and money.
For hobbyists building custom circuits or powering various single-board computers, these adapters simplify power management. They eliminate the need to stock multiple power supplies for different devices, consolidating power solutions. The ability to adapt existing equipment extends its lifespan and utility. It is an investment in versatility.
The long-term value of these adapters lies in their ability to fix expensive equipment with affordable components. Instead of discarding a perfectly functional power supply or device due to a mismatched connector, these adapters offer a simple, cost-effective bridge. This approach minimizes electronic waste and maximizes the utility of existing hardware. They are a smart addition to any electronics toolkit.
The durability of these adapters hinges on the quality of the plastic housing and the internal metal contacts. Repeated insertion and removal can lead to wear on both the plastic and the metal. However, for typical use, these should last for a considerable period. Proper handling extends their life. Avoiding excessive force during connection is advisable.
Maintaining a clean contact surface is essential for optimal performance. Dust or debris inside the barrel can impede electrical flow. A simple blast of compressed air can clear most obstructions. Chemical cleaners are generally unnecessary and could potentially damage the plastic or internal contacts. Regular visual inspection is recommended.
Unlike soldered connections, which are permanent, these adapters offer the flexibility of being easily swapped. This modularity simplifies troubleshooting power issues; a faulty adapter can be quickly identified and replaced without affecting the entire power chain. This reduces diagnostic time. The design prioritizes ease of use and interchangeability.
Imagine the frustration of having a critical piece of electronics rendered useless by a simple connector mismatch, only to find a quick, inexpensive solution in a small adapter. This kit provides that peace of mind, ensuring that your projects and repairs proceed smoothly, without unnecessary delays or expenses. It equips you with the adaptability to tackle diverse power challenges, keeping your valuable equipment operational and your workflow uninterrupted. This is a toolkit essential.
