TRMODS Universal Lever Wire Connectors

Precision Connections for Sustainable Power Systems

The TRMODS Universal Lever Wire Connectors are a pragmatic, efficiency-driven solution for secure electrical connections, catering to solar energy enthusiasts and DIYers seeking reliable, tool-free wiring. These connectors simplify complex wiring tasks, ensuring robust and safe junctions within various electrical setups, from residential solar arrays to off-grid battery banks.

Engineering for Enduring Performance

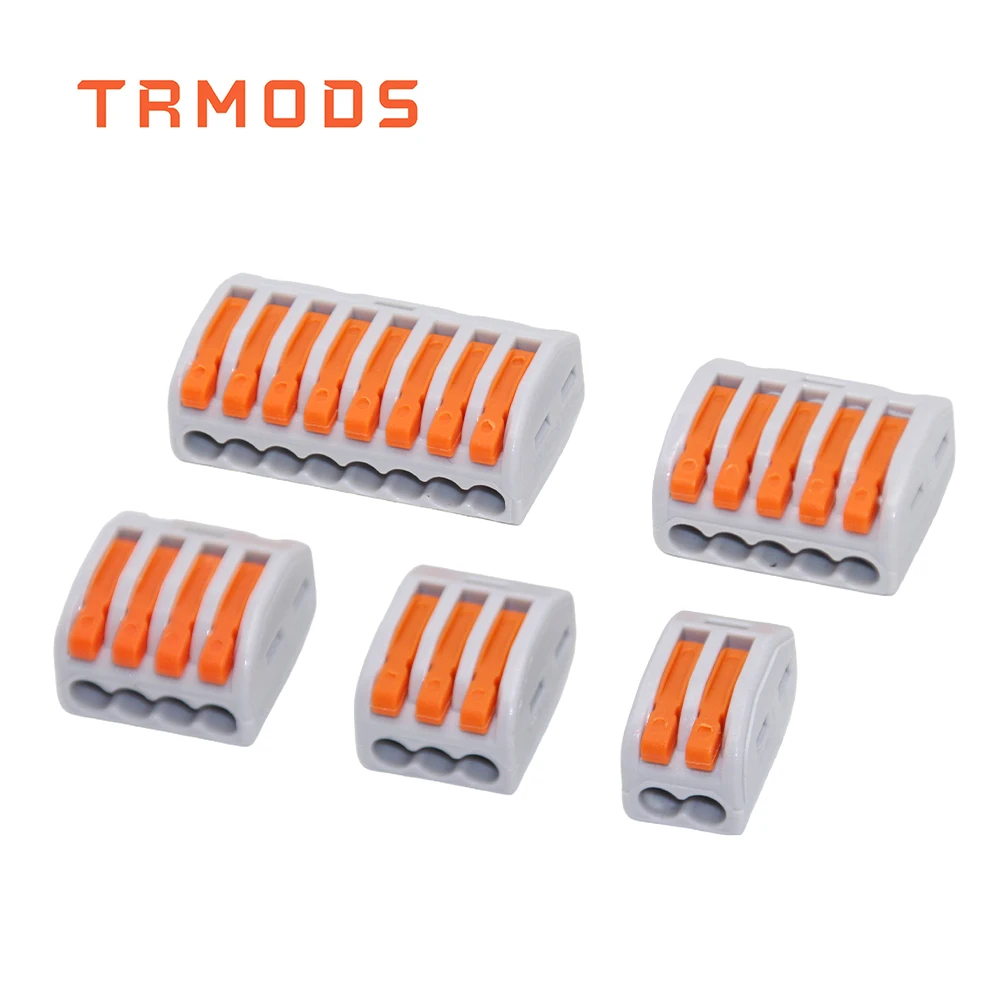

The visible construction of these connectors highlights a robust design. They feature a grey housing and bright orange levers, a common color scheme for quick identification. This visual clarity is crucial for rapid assembly.

The core material for both the housing and the levers is specified as PA66 flame-retardant plastic. This material choice is not arbitrary; PA66 is a polyamide 66, known for its high mechanical strength, rigidity, good resistance to heat, and excellent electrical insulation properties. Its inherent flame-retardant characteristics provide a critical safety layer, especially in enclosed spaces or applications where thermal stability is paramount.

Compared to conventional PVC or cheaper plastics, PA66 offers superior thermal endurance. This means the connectors maintain their structural integrity and insulating properties even under moderate temperature fluctuations, a common occurrence in solar installations exposed to varying environmental conditions.

Streamlined Installation and Versatile Compatibility

Installation mechanics are straightforward. The design incorporates a lever-actuated clamping system. This mechanism allows for quick wire insertion and release without the need for specialized crimping tools or twisting, which often leads to inconsistent connections.

Users simply strip the wire to the recommended 10mm (3/8 inch) length. The lever is then lifted, the stripped conductor inserted, and the lever pressed down to secure the connection. This process is intuitive. It minimizes installation errors.

The connectors accommodate a broad range of wire types and gauges. They are compatible with solid and stranded wires from 0.08 to 2.5mm² (approximately 28-14 AWG). For fine-stranded wires, the compatibility extends up to 4.0mm² (approximately 12 AWG). This versatility is highly beneficial for solar energy projects, which often involve a mix of wire types, from rigid panel wiring to more flexible battery cables or inverter connections.

Traditional screw terminals often require careful torqueing to prevent loose connections or wire damage. These lever connectors eliminate that variable. They provide a consistent clamping force.

Electrical Integrity and System Reliability

These TRMODS connectors are rated for 32A current and 250V AC/DC voltage. This rating makes them suitable for a wide array of applications within a solar energy system. Many 12V or 24V DC solar panel strings operate well within this current limit, as do the AC outputs of smaller inverters.

Maintaining electrical integrity is paramount for system efficiency and safety. A poor connection can lead to resistance, generating heat and causing power loss. These connectors aim to provide a low-resistance pathway. They ensure efficient energy transfer.

For off-grid systems, where every watt-hour counts, minimizing connection losses is critical. The secure clamping mechanism helps prevent intermittent connections that could lead to flickering lights, inconsistent charging, or even system failures. The ability to quickly disconnect and reconnect wires also aids in troubleshooting or system expansion, reducing downtime significantly.

Design Considerations for Solar Applications

The compact form factor of these connectors is a distinct advantage. They are available in 2-way, 3-way, and 5-way configurations, offering flexibility for various branching or splicing needs. Their small footprint allows for efficient use of space within junction boxes, combiner boxes, or electrical enclosures, which are often constrained.

Visual inspection ports are integrated into the design. These clear sections allow for a quick check to confirm that the wire is fully inserted and that no stray strands are exposed, preventing potential short circuits or ground faults. This simple feature enhances safety. It streamlines quality control.

In a solar setup, components are frequently housed in tight, weather-resistant enclosures. The ability to make secure connections without bulky tools or excessive manipulation of wires simplifies the installation process in these confined spaces. This design choice directly addresses common installation challenges.

Durability and Reusability in the Field

The durability of the PA66 material, combined with the robust lever mechanism, suggests a long operational life. Unlike some single-use connectors, these are designed for reusability. This feature is invaluable for solar hobbyists who frequently modify or expand their systems.

Reusing connectors reduces waste and overall project costs. It also allows for easy component swapping or circuit reconfigurations without having to cut and re-strip new wires every time. The tensile strength test shown in the product imagery, indicating a pull strength of 12.8kg, underscores the mechanical robustness of the connection, resisting accidental dislodgement.

This level of mechanical integrity is crucial for installations where vibrations or accidental tugs might occur. A secure connection stays secure. It provides peace of mind.

Concluding Thoughts on System Integration

These TRMODS lever wire connectors represent a significant upgrade over traditional methods like twist-on wire nuts or less reliable crimp connectors. Their focus on speed, safety, and reusability aligns perfectly with the demands of modern electrical installations, particularly within the dynamic field of solar energy.

Imagine the efficiency gains in wiring a new solar panel array, where dozens of connections must be made quickly and reliably. Consider the peace of mind knowing that each connection is secure, flame-retardant, and easily inspectable. These connectors empower users to build and maintain their sustainable energy systems with greater confidence and less effort, ensuring optimal performance and longevity for their solar investments.

Key System Integration Points

Enhanced Wiring Efficiency

Lever-actuated clamping ensures rapid, tool-free wire termination.
This significantly reduces the time spent on electrical connections in any solar project.
Unlike screw terminals that demand specific torque settings, these offer consistent, reliable clamping.

Material Science for Safety

Constructed from PA66 flame-retardant plastic, these connectors resist high temperatures.
This material choice provides a crucial safety buffer against overheating in enclosed solar junction boxes.
Standard connectors without flame-retardant properties pose a greater risk in demanding electrical environments.

Versatile Conductor Handling

Compatibility spans solid, stranded, and fine-stranded wires from 0.08-4.0mm².
This broad compatibility simplifies inventory and ensures suitability for diverse solar wiring needs, from panels to inverters.
Many generic connectors are limited to a narrower range of wire types, forcing multiple connector purchases.

Robust Electrical Performance

Rated for 32A and 250V AC/DC, these units handle common solar circuit loads effectively.
Such ratings ensure stable power delivery and minimize resistive losses in both DC and AC segments of a solar system.
Lower-rated connectors risk thermal breakdown and reduced system longevity under similar loads.

Optimized Space Utilization

The compact design, available in 2, 3, and 5-way configurations, fits well into tight enclosures.
This small footprint is essential for maximizing space within solar combiner boxes and electrical panels.
Bulky traditional connectors can complicate wiring layouts and increase enclosure size requirements.

Reusability for Project Flexibility

Designed for repeated use, these connectors support system modifications and expansions.
This feature is invaluable for hobbyists and professionals who frequently reconfigure or upgrade their solar installations.
Single-use connectors necessitate cutting and re-stripping wires, adding time and material waste during changes.
