TOMZN 2P DC 1000V Solar Mini Circuit Breaker for PV Systems
Official Store Deal
Expert Analysis Overview
The TOMZN 2P DC 1000V Solar Mini Circuit Breaker is a critical safety component engineered for robust protection within photovoltaic (PV) systems. This device is specifically designed to safeguard DC circuits from overcurrents and short circuits, a fundamental requirement for reliable solar energy installations. Its technical specifications and visible construction suggest a focus on essential functionality and adherence to industry standards, crucial for preventing electrical hazards in high-voltage DC environments.
This circuit breaker features a 2-pole configuration and is rated for 1000V DC operation. It handles currents up to 63A, offering a wide range of selectable amperages from 3A to 63A. The device is clearly marked with its model number, TOB7Z-63, and its interrupting capacity (Icu) of 6kA.
Such specifications are paramount for modern solar arrays, which often operate at high DC voltages to maximize efficiency. The 2-pole design ensures that both the positive and negative conductors of a DC circuit are simultaneously interrupted during a fault. This complete isolation is vital for safety and effective fault clearing in PV systems. Inadequate protection can lead to catastrophic system failures.
Unlike standard AC circuit breakers, this unit is purpose-built for the unique characteristics of direct current. DC faults are more challenging to interrupt due to the absence of a natural zero-crossing point in the waveform. This breaker's design addresses that. It provides dedicated protection where AC breakers would fail.

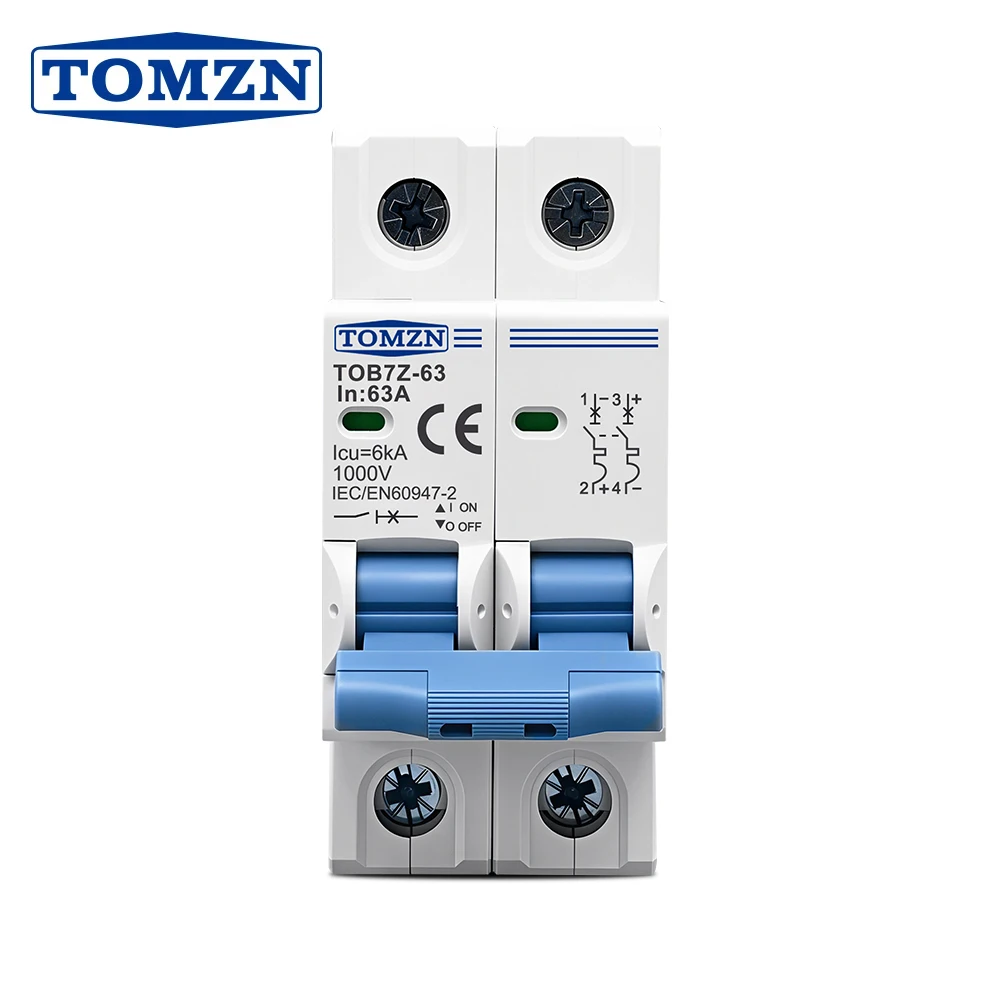

The visible construction of the TOMZN breaker indicates a sturdy, DIN rail mountable housing. Screw terminals are present for secure wire connections. The overall aesthetic is functional and industrial, typical for electrical safety devices.
Robust terminals are non-negotiable for high DC current applications. Loose connections generate heat, leading to power loss and potential fire risks. The visible screw-type terminals allow for firm clamping of conductors, minimizing resistance and ensuring a reliable electrical path. Proper torque is essential during installation.
This design contrasts sharply with quick-connect or spring-loaded terminals often found in lower-current applications. For the demanding environment of a PV system, the secure, mechanical connection offered by screw terminals is a distinct advantage. It reduces the likelihood of intermittent faults. This is a significant safety feature.
The breaker incorporates a visual indicator window that changes color based on its operational status. A green indicator signifies the circuit is closed (power on), while a red indicator appears when the breaker has tripped (power off/fault). The manual toggle switch is prominently displayed in blue.
This clear visual feedback is invaluable for system operators and maintenance personnel. Rapid identification of a tripped breaker allows for quicker troubleshooting and minimizes system downtime. There is no guesswork involved.
Many basic protection devices offer no immediate visual cue beyond the position of the toggle. The dedicated indicator window provides an unambiguous status. This enhances safety protocols. It simplifies fault diagnosis considerably.
Compatibility with a standard 35mm DIN rail is a key feature for this device. The images show the mounting clips clearly, indicating straightforward installation into existing electrical enclosures. Terminal access appears unhindered for wiring.
DIN rail mounting streamlines the installation process, allowing for modular and organized panel layouts. Electricians can quickly snap the breaker into place, reducing installation time and complexity. This is a common industry practice.
The ease of integration into standard electrical panels is a significant benefit. It avoids the need for custom mounting solutions or extensive modifications to existing infrastructure. This modularity saves time and effort. It ensures system scalability.
The breaker's Icu rating of 6kA and compliance with IEC/EN60947-2 standards are critical technical details. These ratings define the device's ability to safely interrupt a short-circuit current without sustaining damage itself.
An interrupting capacity of 6kA means the breaker can withstand and clear a fault current up to 6,000 amperes. This capability is vital in PV systems where short circuits can generate substantial current surges. The IEC/EN60947-2 standard confirms its design and testing meet rigorous international requirements for low-voltage switchgear. Safety is paramount.
The consequences of an inadequately rated breaker are severe. It could fail to interrupt a fault, leading to arc flashes, equipment damage, or even fire. This breaker's specified ratings provide confidence in its protective capabilities. It protects valuable assets.
The visible plastic housing and robust screw heads suggest a design intended for longevity. The materials appear capable of withstanding the typical environmental conditions found in solar installations, including temperature fluctuations.
Electrical components in PV systems are often exposed to wide temperature swings, from freezing cold to intense heat. The material selection must resist degradation over time. A durable housing ensures the internal mechanisms remain protected and functional. This extends operational life.
Unlike indoor-only electrical components, PV system breakers must endure more challenging conditions. The construction implies a resilience to these stresses. It ensures consistent performance. This is crucial for long-term reliability.
Considering its technical specifications and safety compliance, the TOMZN 2P DC 1000V Solar Mini Circuit Breaker offers a compelling value proposition. Its price point, especially when compared to the cost of potential system damage, is a minor investment.
Preventing electrical fires and equipment destruction far outweighs the initial cost of this protective device. A single overcurrent event can render expensive solar panels, inverters, or batteries inoperable. This breaker acts as an affordable insurance policy. It protects your investment.
The true cost of component failure in a PV system extends beyond replacement parts; it includes downtime, lost energy generation, and potential safety hazards. Investing in reliable overcurrent protection like this breaker is a prudent decision. It ensures system integrity. This is a smart choice.
Imagine the peace of mind knowing your solar investment is safeguarded by a purpose-built protection device. Envision a system that operates reliably day after day, year after year, free from the constant worry of electrical faults. This breaker provides that foundational security, allowing you to focus on the clean energy it generates, confident in its robust electrical defense. It ensures continuous power delivery.
