SINOTIMER Din Rail Over/Under Voltage & Current Protector with kWh Meter
Official Store Deal
Expert Analysis Overview
The SINOTIMER SVP-719 Din Rail Protector is a critical electrical safety device engineered for precise circuit monitoring and protection in 110V/120VAC systems. This unit integrates multiple essential functions into a compact, DIN rail-mountable form factor, making it an indispensable component for modern electrical installations. It offers a comprehensive solution for safeguarding sensitive equipment and ensuring the longevity of electrical infrastructure.
This device provides robust over-voltage and under-voltage protection. Voltage fluctuations are a common cause of damage to electronic appliances and can significantly shorten their lifespan. An unexpected surge can instantly fry sensitive components. Conversely, prolonged under-voltage conditions can cause motors to overheat and fail prematurely. This protector actively monitors the incoming line voltage.
When the voltage deviates beyond user-defined safe thresholds, the device automatically disconnects the load. This prevents costly repairs or replacements of connected equipment. It acts as a vigilant guardian for your electrical system.
Compared to basic surge protectors that offer limited defense, this unit provides active, continuous monitoring and immediate disconnection. It is a proactive defense against grid instability.
Beyond voltage, the SVP-719 also incorporates over-current and under-current protection. Over-current conditions, often caused by short circuits or overloaded circuits, are a primary cause of electrical fires and damage to wiring. Under-current situations, while less common, can indicate a fault in the load or a partial connection, potentially leading to inefficient operation or component stress.
The protector continuously measures the current flowing through the circuit. If the current exceeds a preset maximum or drops below a minimum, the device trips, isolating the faulty section. This prevents overheating of conductors and protects connected appliances from drawing excessive current. Safety is paramount.
Unlike standard circuit breakers that primarily react to severe overloads, this device offers adjustable current thresholds, allowing for more nuanced protection tailored to specific loads. This precision minimizes nuisance trips while maximizing safety. It provides a layer of protection beyond what a typical breaker offers.
A significant feature of this unit is its integrated kilowatt-hour (kWh) meter. Understanding energy consumption is crucial for managing electricity costs and identifying inefficient appliances. Many users are unaware of their real-time power usage.
The bright LED display provides a clear, real-time readout of accumulated energy consumption. This allows for immediate feedback on power usage. Users can track energy consumption over time, helping to pinpoint energy-hungry devices or periods of high usage. This data empowers informed decisions.
This functionality transforms the protector from a purely safety device into an energy management tool. It offers a tangible return on investment through potential energy savings. This is a smart addition for any energy-conscious household or business.

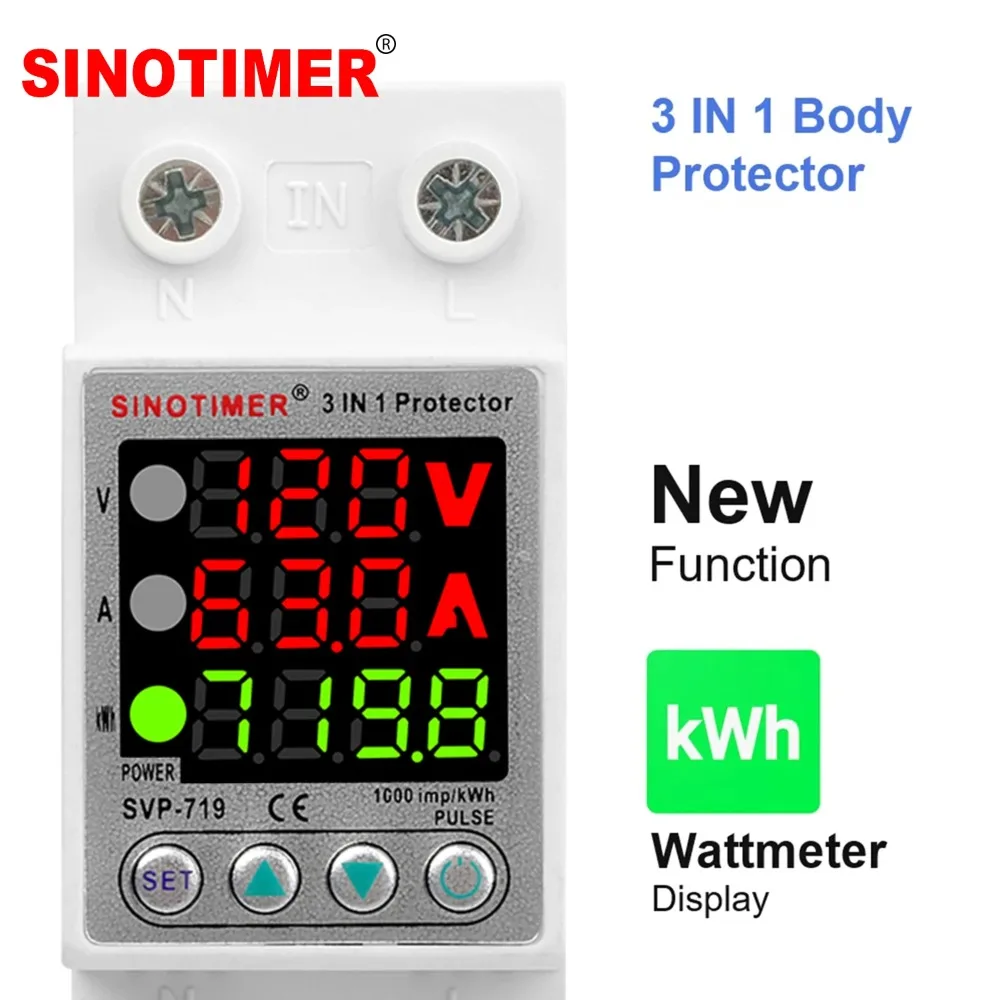

The device features a multi-segment LED display that simultaneously shows voltage (V), current (A), and kilowatt-hours (kWh). Clear visibility is essential for quick assessment. The red and green segments are distinct.
This real-time data allows for immediate visual confirmation of circuit status. Electricians can quickly diagnose issues. Users can monitor their electrical parameters at a glance, ensuring everything operates within normal limits. It provides critical operational feedback.
Traditional protectors often lack any visual feedback, requiring external meters for diagnostics. This integrated display simplifies monitoring and troubleshooting, saving time and effort. It puts vital information directly at the user's fingertips.
One of the most valuable aspects of the SVP-719 is its user-configurable protection parameters. Different electrical loads have varying tolerance levels for voltage and current fluctuations. A one-size-fits-all approach is often insufficient.
Through intuitive buttons, users can set precise upper and lower limits for both voltage and current. This customization ensures optimal protection for specific appliances or entire circuits. It adapts to diverse requirements. The settings are easily accessible.
This adjustability provides a level of control not found in fixed-setting protective devices. It allows for fine-tuning the protection to match the exact needs of the connected equipment, preventing both under-protection and unnecessary tripping. This flexibility enhances system reliability.
Designed for DIN rail mounting, this protector seamlessly integrates into standard electrical distribution boards and consumer units. DIN rail compatibility is an industry standard. This ensures a neat and organized installation.
Installation involves simply clipping the device onto the DIN rail and connecting the input and output wires. The process is straightforward for qualified personnel. The compact form factor minimizes space requirements within the electrical panel. It is a professional installation.
This standardized mounting method simplifies upgrades and maintenance compared to panel-mounted devices requiring custom cutouts. It ensures compatibility with existing infrastructure. The design promotes efficient panel layout.
The visible materials imply a durable plastic housing, suitable for electrical enclosure environments. The device carries CE certification, indicating compliance with European safety, health, and environmental protection standards. This certification is a mark of quality.
The construction appears robust enough for its intended application within an electrical panel. The terminals are clearly marked for N (Neutral) and L (Live) inputs and outputs, facilitating correct wiring. Proper connections are vital.
While not designed for harsh outdoor environments, its internal panel placement ensures protection from direct elements. The CE mark provides assurance regarding its manufacturing standards. It meets recognized safety benchmarks.
The front panel features four tactile buttons: 'SET', 'Reduce', 'Increase', and 'ON/OFF'. These controls allow for easy navigation through settings and manual operation. Simple controls are always appreciated.
Setting the protection parameters is an intuitive process, guided by the clear display. The ON/OFF button provides immediate control over the circuit. This user-friendly interface minimizes the learning curve. It is easy to operate.
This straightforward control scheme ensures that adjustments can be made efficiently, even by those with moderate technical proficiency. It avoids complex menu structures. The design prioritizes ease of use.
This SINOTIMER protector offers a robust, multi-functional solution for electrical circuit protection and energy monitoring. Its ability to safeguard against voltage and current anomalies, coupled with real-time kWh tracking, makes it a valuable asset for any electrical system. The adjustable thresholds provide unparalleled customization, ensuring optimal protection for diverse loads. Imagine the peace of mind knowing your valuable electronics are shielded from unpredictable power fluctuations, while simultaneously gaining insight into your energy consumption habits, leading to smarter, more efficient electrical management and potentially significant cost savings over time. This device empowers users with control and confidence in their electrical infrastructure.
