Red/Black Tinned Copper Hookup Wire (16-28 AWG)
Official Store Deal
Expert Analysis Overview
The Red/Black Tinned Copper Hookup Wire (16-28 AWG) is a foundational electrical conductor offering, meticulously engineered for precision and reliability across a spectrum of low-voltage applications. This product is designed for electronics repair technicians and DIY enthusiasts who demand consistent performance and ease of use in their projects, from automotive wiring to intricate LED installations. It addresses the common frustrations of unreliable connections and difficult soldering by providing a robust, clearly specified solution.
At its core, this hookup wire features tinned copper conductors. The visual evidence confirms a stranded wire construction, with specific examples like 18AWG showing 34 individual strands of 0.14mm diameter. This multi-strand configuration is critical.
The tin plating on the copper strands significantly enhances the wire's long-term performance. It acts as a protective barrier against oxidation, a common issue with bare copper that can lead to increased resistance and poor solderability over time. This pre-tinned surface ensures that when a technician needs to solder a connection, the process is cleaner, faster, and results in a more reliable electrical and mechanical bond. The high conductivity of copper is preserved, while its susceptibility to environmental degradation is substantially reduced.
Unlike standard untinned copper wire, which can degrade when exposed to air and moisture, tinned copper maintains its electrical properties and solderability for extended periods. This makes it a superior choice for projects requiring longevity and consistent performance, particularly in environments where moisture or corrosive elements might be present. It's a clear upgrade.
The conductors are encased in PVC insulation, a widely recognized material in electrical wiring for its balance of flexibility, dielectric strength, and cost-effectiveness. The product specifications clearly state a high voltage rating of 300V and a high temperature rating of 80°C.
These insulation properties dictate the wire's suitability for various applications. A 300V rating means it can safely handle typical low-voltage DC circuits found in automotive systems, LED lighting, and many household electronic devices. The 80°C temperature rating indicates its resilience in environments where moderate heat might be generated, preventing insulation breakdown under normal operating conditions. This ensures operational safety.
Compared to specialized insulation materials like silicone or PTFE, PVC offers a more rigid yet still flexible solution at a lower cost. While silicone might offer superior flexibility and higher temperature resistance for extreme applications, the PVC used here is perfectly adequate for the vast majority of general-purpose wiring tasks, providing robust protection without unnecessary expense. It is a practical choice for everyday use.

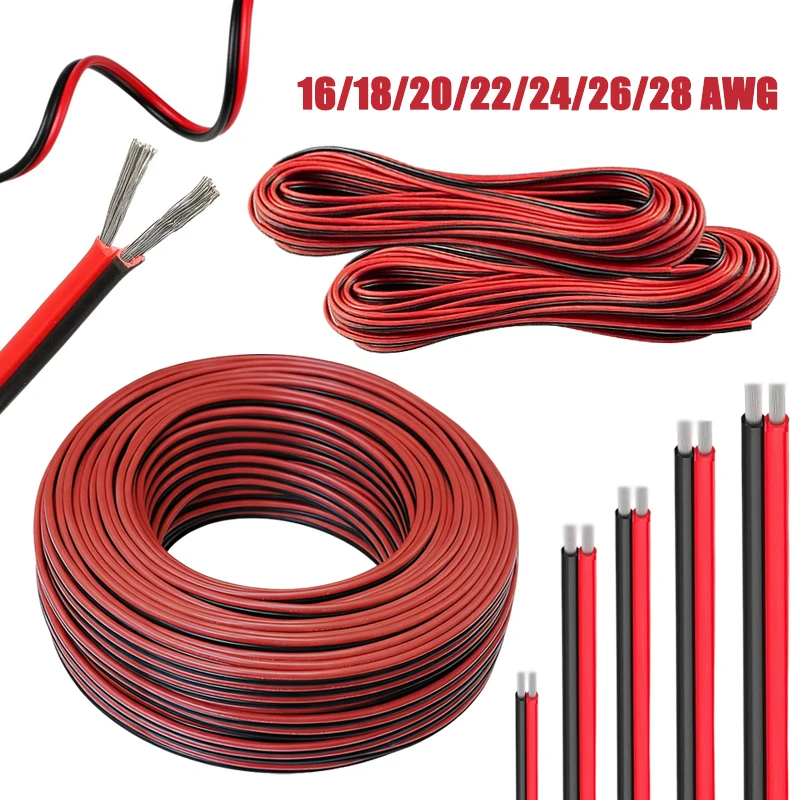

This hookup wire is available in a wide range of American Wire Gauge (AWG) sizes, from 16 AWG to 28 AWG. This comprehensive selection is a significant advantage for any technician or hobbyist. The flat, parallel cable design is also a notable feature.
Each gauge serves distinct current requirements and physical constraints. For instance, 28 AWG is ideal for low-current signal transmission or very small LED arrays where space is at a premium. Conversely, 16 AWG can handle higher current loads, making it suitable for automotive accessories, longer LED ribbon runs, or doorbell power. The flat configuration simplifies routing in tight spaces and ensures consistent polarity identification, which is crucial for preventing miswiring in DC circuits. This versatility is key.
Many projects often require multiple wire gauges. Instead of sourcing different gauges from various suppliers, this product offers a convenient, single-source solution. This streamlines project planning and execution, ensuring the right wire is always on hand. It avoids the common pitfall of using an undersized wire for a load, which can lead to overheating, or an oversized wire, which adds unnecessary bulk and cost. This range provides true flexibility.
Several images display the wire with exposed, pre-stripped ends, indicating a product designed for straightforward termination. The visible flexibility of the spooled wire further suggests ease of handling during installation. This simplifies the workflow.
The stranded, flexible nature of the wire, combined with its tinned copper conductors, makes it exceptionally easy to work with. It bends readily without kinking, facilitating routing through complex pathways in vehicles or electronic enclosures. The pre-tinned strands are ready for immediate soldering, ensuring strong, low-resistance connections. For crimped connections, the strands compress effectively, creating a secure mechanical and electrical bond. This reduces installation time.
Unlike solid-core wires which are prone to fatigue and breaking when repeatedly flexed, or overly stiff insulated wires that are difficult to route, this product offers a balance of durability and workability. Its design prioritizes ease of installation and reliable long-term connections, which is paramount in both repair and new build scenarios. It ensures dependable operation.
The product appears to be offered in convenient 5-meter or 10-meter lengths, suggesting a focus on providing sufficient material for multiple projects without excessive waste. Its straightforward construction contributes to its affordability.
For electronics repair, having a reliable and cost-effective supply of hookup wire is crucial. This product allows technicians to fix expensive equipment with affordable components, extending the lifespan of devices without incurring high material costs. For DIY enthusiasts, it provides the freedom to create custom wiring harnesses and integrate components precisely as needed, fostering innovation and reducing reliance on pre-made, often ill-fitting, solutions. This is a smart investment.
Compared to purchasing pre-made harnesses or smaller, more expensive spools from specialty electronics stores, this bulk offering presents significant cost savings. The ability to cut custom lengths minimizes waste and ensures that projects are completed efficiently and economically. It empowers users to tackle a wider array of electrical tasks with confidence, knowing they have a dependable and versatile wiring solution at their disposal. This wire is an enabler.
Imagine completing your next automotive electrical upgrade with perfectly routed, corrosion-resistant wiring that you know will last. Envision effortlessly connecting new LED strips, achieving brilliant, consistent illumination without the frustration of brittle or poorly conductive wires. Picture the satisfaction of repairing a beloved electronic device, knowing the internal connections are now more robust than ever. This wire empowers you to achieve reliable, professional-grade results in all your electrical endeavors, ensuring every connection is a testament to quality and precision. It's about confidence in your craft.
