QRPGuys No Tune End Fed Half Wave Antenna Module

Precision in Portable Antenna Deployment

The QRPGuys No Tune End Fed Half Wave Antenna Module is a precisely engineered impedance matching unit designed for amateur radio operators seeking reliable, portable HF antenna deployment. This module simplifies the often-complex process of antenna tuning, providing a consistent 50-ohm impedance match across multiple bands. It is a compact solution.

The Science of Impedance Matching

Antenna systems require careful impedance matching to ensure maximum power transfer from the transceiver to the antenna. Mismatched impedances lead to reflected power, increased Standing Wave Ratio (SWR), and reduced efficiency. This module addresses a common pain point for field operators: the need for a separate, often bulky, antenna tuner. It integrates the matching network directly.

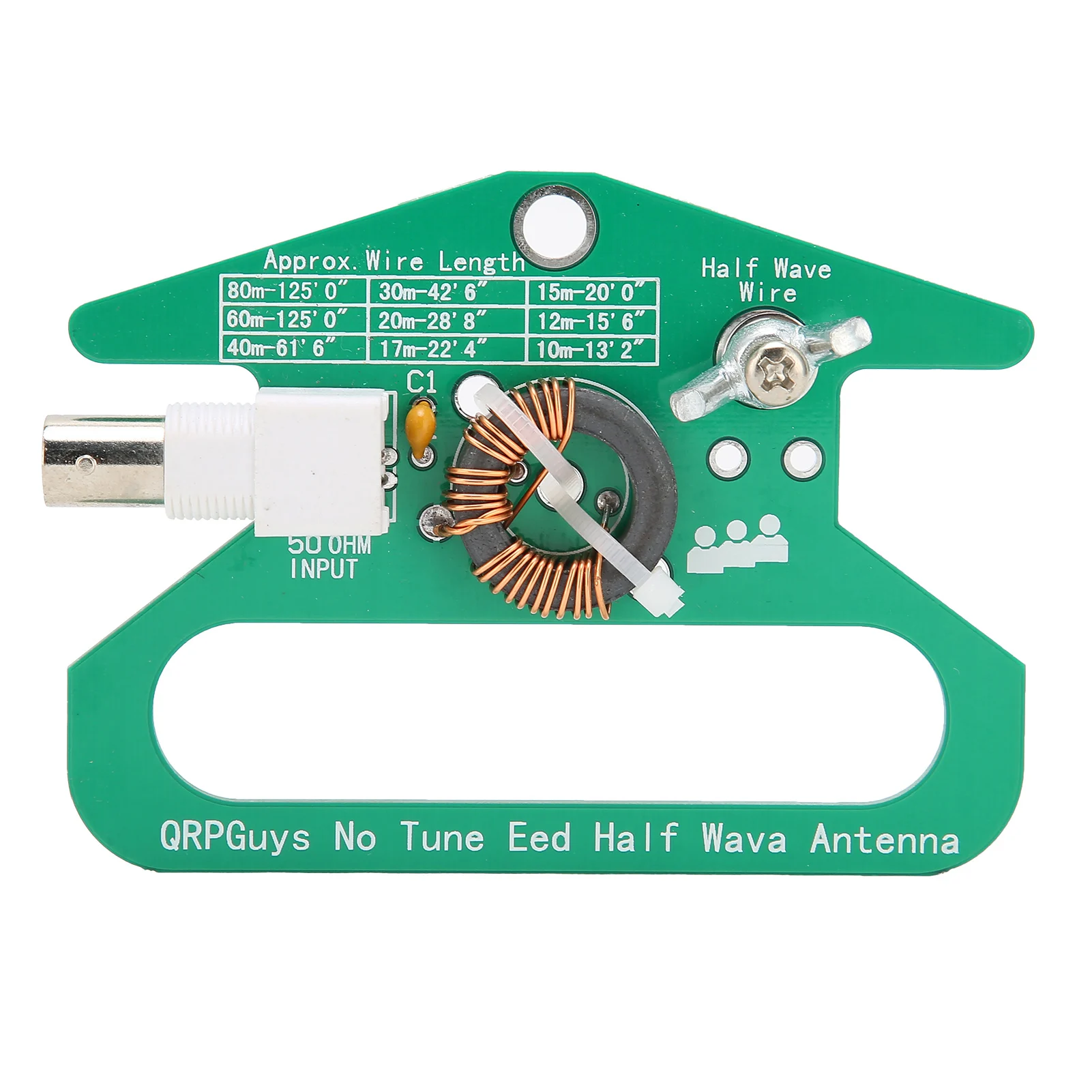

The visible toroidal transformer, secured with a zip tie, is central to this function. This component is critical. It transforms the high impedance of an end-fed half-wave wire into a standard 50-ohm impedance suitable for most amateur radio transceivers. The design aims for a broad frequency response, minimizing the need for manual adjustments. This saves significant setup time.

Compared to traditional end-fed half-wave antennas that typically present impedances ranging from several hundred to several thousand ohms, necessitating an external tuner, this module provides a pre-engineered solution. This eliminates the guesswork. It ensures that the transceiver 'sees' a near-perfect 50-ohm load, optimizing power output and minimizing stress on the final amplifier stage. This is a significant operational advantage.

Calibration and Repeatability

The module's 'no tune' designation implies a factory-calibrated impedance transformation. This is a key metrological aspect. The printed circuit board (PCB) itself features a table detailing approximate wire lengths for various amateur radio bands (80m-10m). These lengths are crucial for achieving resonance. For example, the 80m band suggests a wire length of 125-130 feet, while 10m requires 15-20 feet. These are precise guidelines.

Achieving repeatable results in portable operations is paramount. The fixed nature of this matching unit contributes to high repeatability. Once the correct wire length is deployed for a given band, the impedance match should remain consistent, assuming environmental factors are stable. This reduces operational variability. Unlike manual tuners, which can be subject to operator error or drift, this module offers a predictable electrical interface. This ensures consistent performance across deployments. It is a reliable component.

For operators who prioritize rapid deployment and consistent performance over fine-grained tuning flexibility, this module offers a compelling solution. The inherent design minimizes variables. It allows for quick setup and operation, making it ideal for QRP (low power) field operations where every watt counts. The efficiency gain is measurable.

Durability and Field Readiness

The module is constructed on a robust green PCB, suggesting a design intended for field use. The board appears to be single-sided. The components, including the toroidal transformer and the BNC connector, are securely mounted. The screw terminal for the half-wave wire connection is a practical choice for quick attachment and detachment of antenna wire. This is a simple connection.

While the PCB itself is durable, the exposed components, particularly the toroidal transformer, would benefit from protection in harsh environments. A simple enclosure or weatherproofing would enhance its longevity. This is a minor consideration. The overall form factor is compact, making it easy to integrate into a portable go-kit. Its small size is advantageous.

Compared to bulkier, enclosed antenna tuners, this bare-board module prioritizes minimalism and weight reduction. This makes it highly suitable for backpacking or ultralight portable operations. The trade-off is a lack of inherent weather protection, which operators must address. However, its simplicity contributes to reliability. Fewer moving parts mean less to fail.

Connectivity and Integration

The module features a standard BNC connector for the 50-ohm input, a common interface for QRP transceivers and test equipment. This ensures broad compatibility. The 'Half Wave Wire' connection is a simple screw terminal, accommodating various wire gauges. A wing nut secures the connection. This is user-friendly.

Proper connection is vital for optimal performance. The BNC connector provides a secure, low-loss connection to the coaxial cable leading to the transceiver. The screw terminal ensures a solid electrical contact with the radiating element. This minimizes resistive losses. The clear labeling on the PCB, indicating '50 Ohm Input' and 'Half Wave Wire', simplifies setup. This aids correct assembly.

Unlike systems requiring specialized connectors or complex wiring, this module uses widely available and easily managed interfaces. This reduces the barrier to entry for new operators. The straightforward design facilitates quick integration into existing portable antenna setups. It is highly adaptable.

Operational Considerations and Performance Metrics

The 'no tune' aspect is a significant performance metric. It implies a low SWR across the specified bands without manual adjustment. This is achieved through the careful design of the impedance matching network. The efficiency of this transformation directly impacts radiated power. A low SWR is critical.

While the module is designed for 'no tune' operation, verifying the SWR with an external analyzer is always recommended for initial setup. This confirms optimal performance. This ensures the wire length is correct. The module's performance is directly tied to the accuracy of the deployed half-wave wire length. Deviations will impact SWR. Precision is key.

Compared to resonant dipole antennas, which offer a naturally low SWR at their design frequency, end-fed half-wave antennas with matching units provide multi-band capability with a single wire. This offers greater flexibility. The module's role is to make this multi-band operation as efficient as possible without the need for constant tuning. It streamlines operation significantly.

Value Proposition for the Field Operator

This module offers substantial value by streamlining portable antenna deployment. It eliminates the need for a separate antenna tuner, reducing both equipment weight and setup complexity. The cost-effectiveness is clear. For its price point, it provides a crucial function that would otherwise require a more expensive and heavier piece of equipment. This is a smart investment.

Consider the time saved in the field. Instead of spending minutes or even hours tuning an antenna, operators can deploy the wire, connect the module, and begin transmitting. This efficiency is invaluable. The consistent 50-ohm match also protects the transceiver from high SWR, potentially extending its lifespan. This offers long-term benefits.

Unlike generic impedance transformers that may not be optimized for specific amateur radio bands or power levels, this module is purpose-built for QRP end-fed half-wave applications. This specialization ensures optimal performance within its intended use case. It is a focused solution. The QRPGuys brand is known for practical, minimalist amateur radio gear, reinforcing its suitability for this niche. This is a trusted name.

Imagine deploying your antenna in minutes, knowing your transceiver is operating into a perfectly matched load, maximizing your signal's reach. Envision the simplicity of setting up a multi-band station with minimal gear, allowing you to focus on making contacts rather than wrestling with tuning adjustments. This module empowers efficient, reliable portable operations, transforming complex antenna theory into practical, field-ready performance. It simplifies your entire setup. The freedom to operate quickly and effectively, anywhere, becomes a tangible reality. This is true operational freedom.
