Precision Banana Plug to Hook Clip Test Leads

Precision Interconnection for Metrology Applications

The Precision Banana Plug to Hook Clip Test Leads are essential interconnects designed for accurate signal transmission in diverse metrology and electrical testing environments. These leads are engineered for reliable, repeatable connections, crucial for maintaining measurement integrity across various instruments. The gold-plated contacts and robust insulation ensure minimal signal degradation, a critical factor in sensitive diagnostic work. This design directly addresses the common issue of inconsistent contact resistance found in lower-grade test leads, which can introduce significant errors into measurement data.

Core Design and Material Integrity

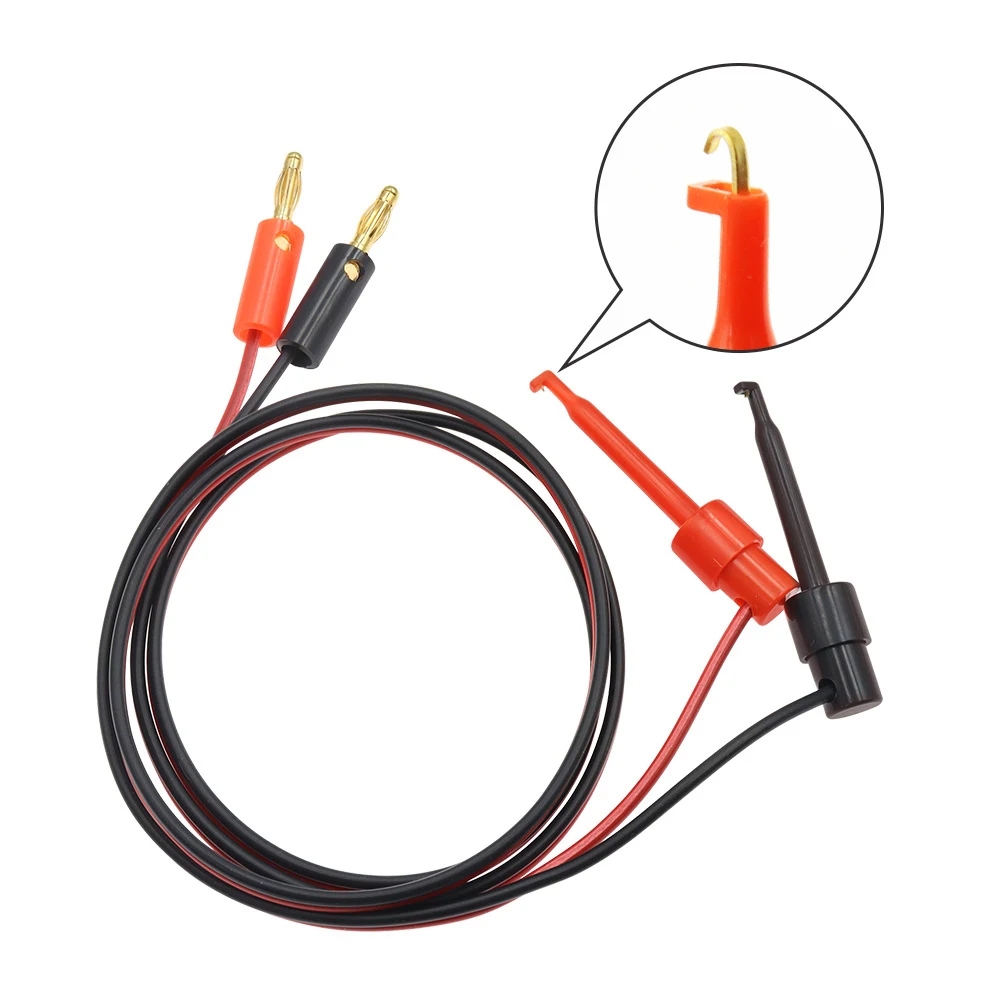

The visible construction features gold-plated 4mm banana plugs and insulated electric hook clips, connected by flexible red and black wires. The gold plating on the banana plugs is a deliberate choice, offering superior conductivity and corrosion resistance compared to standard nickel-plated alternatives. This material selection is paramount for applications requiring stable electrical contact over extended periods, preventing the accumulation of oxides that can skew resistance readings. The insulation appears to be a durable PVC or similar polymer, providing necessary electrical isolation and mechanical protection for the conductors.

In practical use, the material integrity translates directly into enhanced measurement reliability. When performing sensitive voltage or resistance measurements, the stability of the connection directly impacts the observed values. The gold plating ensures that the contact interface itself does not become a variable in the measurement chain. This is a significant advantage over leads that utilize less noble metals, which can quickly degrade in humid or corrosive environments, leading to fluctuating readings and increased measurement uncertainty.

Compared to generic test leads often bundled with entry-level multimeters, these leads prioritize contact quality. Standard leads frequently employ brass or nickel-plated connectors, which, while functional for basic continuity checks, introduce higher contact resistance and are more susceptible to environmental degradation. The gold-plated design positions these leads as a superior option for professionals requiring consistent, low-resistance connections for precise diagnostic and calibration tasks.

Connection Fidelity and Repeatability

The 4mm banana plugs provide a secure, standardized connection to a wide array of test equipment, including multimeters, power supplies, and function generators. The spring-loaded design of the banana plug ensures a tight fit within compatible jacks, minimizing accidental disconnections during testing. This secure mechanical interface is fundamental for achieving repeatable measurement results, as any movement at the connection point can introduce transient electrical noise or resistance changes.

For a metrologist, connection fidelity is non-negotiable. The ability to repeatedly connect and disconnect these leads without altering the electrical characteristics of the test setup is vital for comparative analysis and calibration procedures. A stable connection ensures that variations observed in measurements are attributable to the device under test, not the test leads themselves. This consistency is a cornerstone of reliable data acquisition.

Many standard test leads, particularly those with simpler, non-spring-loaded designs, can exhibit variable contact resistance. This variability makes it challenging to obtain consistent readings, especially when measuring small resistances or voltages. The design of these leads, with their robust banana plugs, offers a distinct advantage in maintaining a stable electrical path, thereby improving the overall accuracy and repeatability of measurements.

Ergonomics and Operational Efficiency

The electric hook clips, featuring a spring-loaded mechanism, allow for quick and secure attachment to component leads, pins, or terminals. The slender profile of the hook tip facilitates access to densely populated circuit boards, a common challenge in modern electronics. The red and black color coding adheres to standard electrical safety practices, clearly distinguishing positive and negative connections, which reduces the risk of incorrect polarity during setup.

Operational efficiency is significantly enhanced by the ease of use these clips provide. Technicians can rapidly connect and disconnect from test points, streamlining diagnostic workflows. The secure grip of the hook clip prevents accidental dislodgement, allowing for hands-free operation during complex measurement sequences. This ergonomic design minimizes user fatigue during prolonged testing sessions.

Unlike alligator clips, which can sometimes slip or damage delicate component leads due to their aggressive jaw design, these hook clips offer a gentler yet firm grip. This makes them particularly suitable for working with sensitive integrated circuits or fine-pitch components where mechanical stress must be minimized. The precision of the hook tip allows for targeted contact without shorting adjacent pins, a common frustration with less refined test probes.

Cable Length and Flexibility

The 1-meter cable length provides ample reach for most benchtop testing scenarios without introducing excessive cable clutter. The flexibility of the wire, implied by its coiled appearance, suggests ease of routing and storage. A flexible cable reduces mechanical stress on the connectors and the test points, contributing to the longevity of both the leads and the components being tested. This length is a practical compromise between reach and signal integrity.

Adequate cable length is crucial for maintaining a comfortable and efficient workspace. Shorter cables restrict movement and can lead to awkward test setups, while excessively long cables can introduce unwanted inductance and capacitance, potentially affecting high-frequency measurements. The 1-meter length strikes a balance, offering sufficient reach for most multimeter applications without compromising signal quality. This is a practical consideration for any test bench.

Many generic test leads often come in shorter lengths or with stiffer insulation, making them cumbersome to use. The specified 1-meter length and apparent flexibility of these leads offer a tangible improvement in usability. This allows technicians to position their instruments and test subjects optimally, reducing strain and improving the overall testing experience. The thoughtful consideration of cable dynamics is evident in this design choice.

Signal Integrity and Noise Reduction

The combination of gold-plated connectors and quality cabling contributes to superior signal integrity. Gold's excellent conductivity and resistance to oxidation ensure that the electrical path remains stable, minimizing signal loss and distortion. The insulation around the conductors also plays a role in reducing external electromagnetic interference, which is critical for accurate low-level signal measurements. This design aims to preserve the fidelity of the measured signal.

For precision measurements, maintaining signal integrity is paramount. Any degradation in the signal path can lead to inaccurate readings, particularly when dealing with small voltages or high-frequency signals. The robust construction of these leads helps to ensure that the signal reaching the measurement instrument is as close as possible to the actual signal at the test point. This directly impacts the confidence in the acquired data.

In contrast, poorly constructed test leads can act as antennas, picking up ambient electrical noise and introducing it into the measurement. This can manifest as fluctuating readings or an elevated noise floor, making it difficult to discern true signal characteristics. These leads, with their focus on quality materials and construction, offer a significant advantage in minimizing such extraneous influences, providing a cleaner signal for analysis.

Value Proposition for Precision Work

These test leads represent a strategic investment for any professional engaged in electrical diagnostics, circuit development, or calibration. The enhanced durability and measurement consistency offered by the gold-plated connectors and robust construction translate into reduced downtime and more reliable data. The initial cost is offset by the improved accuracy and longevity, making them a cost-effective solution in the long term. This is an upgrade from standard accessories.

Considering the potential for measurement errors introduced by inferior leads, the value proposition of these precision leads becomes clear. Accurate measurements save time and prevent costly mistakes in design, troubleshooting, and quality control. The ability to trust the integrity of the test setup allows engineers and technicians to focus on the actual problem at hand, rather than questioning the reliability of their tools. This directly impacts project timelines and outcomes.

Unlike disposable or low-cost leads that require frequent replacement due to wear or performance degradation, these leads are built for sustained use in demanding environments. The investment in higher-quality materials and construction ensures a longer operational lifespan and consistent performance over time. This reduces the total cost of ownership and provides a more stable foundation for all measurement activities, making them an indispensable tool for serious metrology.

Imagine a testing environment where every connection is reliable, every measurement is consistent, and every diagnostic step is executed with unwavering confidence. These test leads facilitate such an environment, allowing for precise fault isolation and accurate performance verification. They empower technicians to achieve repeatable results, ensuring that critical decisions are based on the most accurate data possible. This level of precision elevates the quality of all electrical work, from intricate circuit debugging to routine system maintenance, providing peace of mind and operational excellence.
