Precision 18650 Battery Terminal Insulators (200-Pack)

The Imperative of Precision in Battery Insulation

The Precision 18650 Battery Terminal Insulators are a critical component for ensuring electrical safety and longevity in 18650 battery pack construction, specifically designed for precise terminal isolation. From a metrological perspective, the consistent dimensional accuracy of these pre-cut rings is paramount, directly influencing the reliability and safety profile of assembled battery modules. The application of such insulators is not merely a convenience; it is a fundamental step in mitigating the risks associated with short circuits and thermal runaway in high-energy density cells.

Dimensional Integrity and Fitment

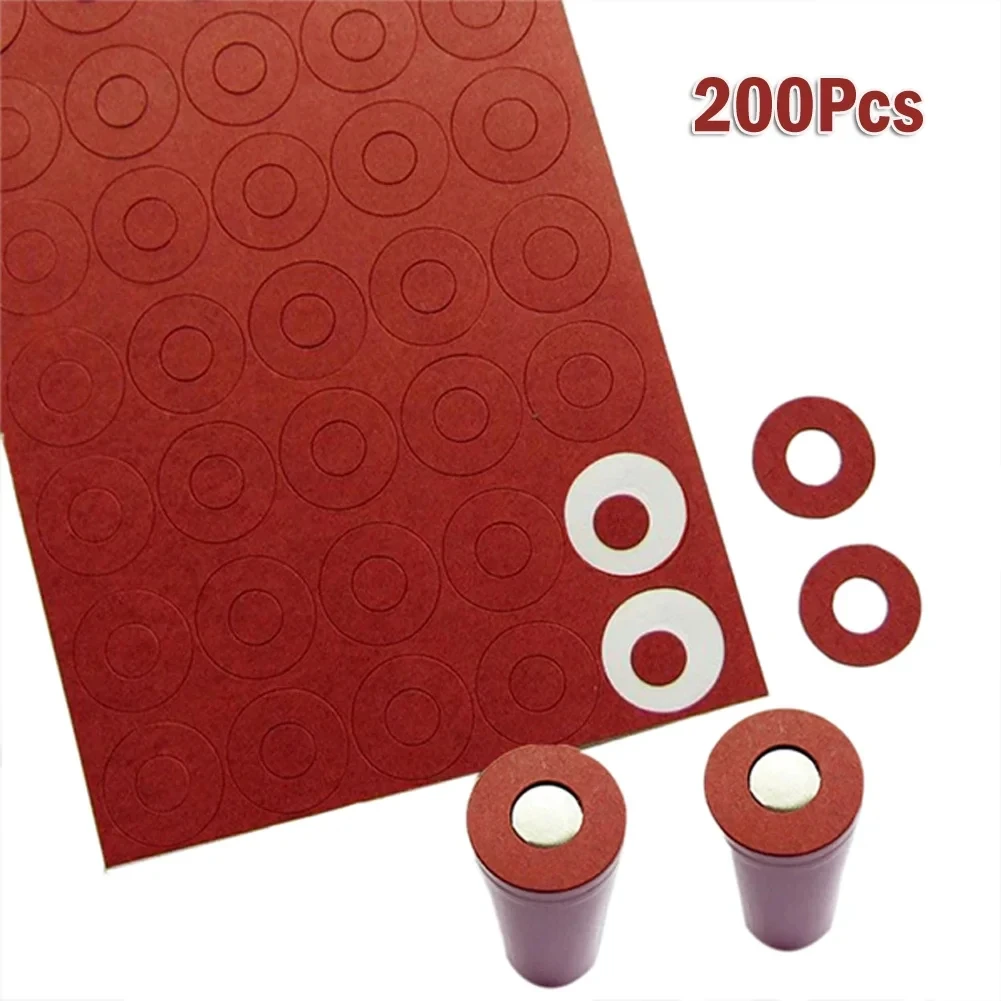

The product images clearly indicate key dimensions: an outer diameter of 17mm (0.67") and an inner diameter of 10mm (0.39"). These specifications are crucial for ensuring a proper fit around the positive terminal of a standard 18650 lithium-ion battery cell. A deviation of even a fraction of a millimeter in either dimension could compromise the insulation, leading to potential contact between the positive terminal and the battery wrapper or adjacent components. The consistency of these measurements across the entire batch of 200 pieces is a primary concern for any serious battery builder or repair technician.

Such precise dimensions are not arbitrary. They are engineered to provide optimal coverage without encroaching on the active contact area of the terminal or interfering with subsequent spot welding processes. The ability to maintain these tolerances across a production run speaks to the manufacturing quality. Without this level of dimensional control, the utility of pre-cut insulators would be significantly diminished, forcing users to resort to less reliable, manual cutting methods.

Compared to generic insulation tapes or hand-cut solutions, these pre-formed rings offer factory-level consistency. This consistency translates directly into repeatable results in battery pack assembly, a critical factor for both safety and performance. The elimination of manual cutting reduces human error and ensures that every cell in a pack receives the same level of terminal protection.

Material Science and Insulative Properties

The insulators are described as "adhesive cardboard paper." The choice of material is significant for its dielectric properties and mechanical stability. Cardboard paper, when properly selected and treated, offers a balance of insulation capability, flexibility, and cost-effectiveness. The thickness of this material, while not explicitly stated in numerical terms, is visually consistent across the provided samples, suggesting a uniform dielectric barrier.

Uniformity in material thickness is essential for consistent insulation performance. Any localized thinning could create a weak point, increasing the risk of dielectric breakdown under electrical stress. The material must also possess sufficient mechanical strength to resist tearing or deformation during application and subsequent handling within a battery pack. Its ability to withstand minor abrasions or impacts without compromising its insulative integrity is a key performance indicator.

Unlike thin plastic films that can easily tear or crinkle, the cardboard paper offers a more robust physical barrier. This material choice provides a degree of rigidity that aids in application while still allowing for slight conformity to the battery terminal's contours. The inherent properties of the cardboard also contribute to its thermal stability, an important consideration for components in close proximity to heat-generating battery cells.

Adhesive Performance and Application Repeatability

The presence of an adhesive layer is a critical feature, ensuring the insulator remains securely in place once applied. From a metrological standpoint, the consistency of this adhesive layer—its thickness, tackiness, and long-term bond strength—is vital. An uneven adhesive application could lead to areas of poor adhesion, allowing the insulator to shift or peel, thereby exposing the terminal.

Reliable adhesion is paramount for maintaining the insulator's position throughout the battery assembly process, including spot welding, heat shrinking, and general handling. The adhesive should provide sufficient initial tack for easy placement, yet offer a durable bond that resists environmental factors such as temperature fluctuations and vibration over the battery's lifespan. The ease of peeling the insulators from the backing sheet without damaging them also speaks to the quality of the adhesive and the die-cutting process.

In contrast to non-adhesive solutions that rely on friction or external clamping, these self-adhesive rings simplify the assembly process. This feature significantly reduces the time and effort required for each cell, allowing for faster and more efficient battery pack construction. The consistent adhesive application across all 200 pieces ensures that each insulator performs as expected, contributing to the overall reliability of the finished product.

Quantity Verification and Batch Consistency

The product is offered as a "200pcs" pack. For bulk users, the accuracy of this count is a practical consideration. More importantly, the consistency of the physical and material properties across all 200 pieces in a single batch is crucial for maintaining uniform quality in larger battery builds. Any significant variation in dimensions, material thickness, or adhesive quality within a single pack would introduce variability into the final product.

Batch consistency is a hallmark of quality control in manufacturing. When working with a large number of cells, knowing that each insulator will perform identically simplifies the assembly process and reduces the need for individual inspection. This level of uniformity allows for predictable outcomes in terms of safety and performance across an entire production run.

This bulk offering provides significant value for hobbyists and professionals alike who frequently work with 18650 cells. Stocking up now prevents running out later, ensuring continuous workflow for projects requiring numerous battery builds. The consistent supply of high-quality insulators streamlines operations and minimizes potential delays.

Operational Efficiency and Safety Enhancement

The primary function of these insulators is to prevent short circuits at the positive terminal of 18650 cells, particularly when building multi-cell battery packs. The pre-cut, adhesive design significantly streamlines the assembly process, reducing the time and effort required compared to manual cutting and application of insulation tape. This efficiency gain is particularly noticeable in projects involving dozens or hundreds of cells.

Beyond efficiency, the safety enhancement is undeniable. A properly insulated positive terminal minimizes the risk of accidental contact with conductive materials, which could lead to dangerous short circuits, overheating, and even fire. The precise fit ensures that the critical areas are covered, providing a robust barrier against electrical faults. This is a small investment that yields substantial safety dividends.

Consider the scenario of assembling a large battery pack for an electric bicycle or a portable power station. The consistent application of these insulators ensures that every cell is protected to the same standard, contributing to the overall reliability and safety of the entire pack. This systematic approach to insulation is a cornerstone of best practices in battery pack design and construction.

Conclusion: Enabling Reliable Battery Builds

These precision-cut 18650 battery terminal insulators offer a metrologically sound solution for enhancing the safety and reliability of battery pack assemblies. Their consistent dimensions, appropriate material choice, and reliable adhesive properties make them an indispensable component for anyone working with 18650 cells. The focus on repeatable results and consistent quality directly addresses the critical need for robust insulation in high-performance battery applications. Imagine completing complex battery builds with confidence, knowing that each cell's positive terminal is precisely and reliably insulated, contributing to a safer and more durable power source for your projects. This product empowers users to achieve professional-grade insulation with minimal effort, ensuring the longevity and safety of their battery investments.
