Multi-Pitch JST/XH/ZH/PH Connector Kit

Precision Interconnection for Low-Voltage Systems

This multi-pitch JST/XH/ZH/PH connector kit is a critical organizational solution designed for electronics enthusiasts, hobbyists, and professional technicians working with low-voltage DC circuits. It provides a comprehensive assortment of male plugs, female sockets, and corresponding pin headers across several common pitches, ensuring a reliable connection for intricate board layouts. The kit's utility lies in its ability to streamline prototyping and repair tasks, offering immediate access to the correct connector type. This is a fundamental requirement for efficient electrical work.

Connector Variety and Application Suitability

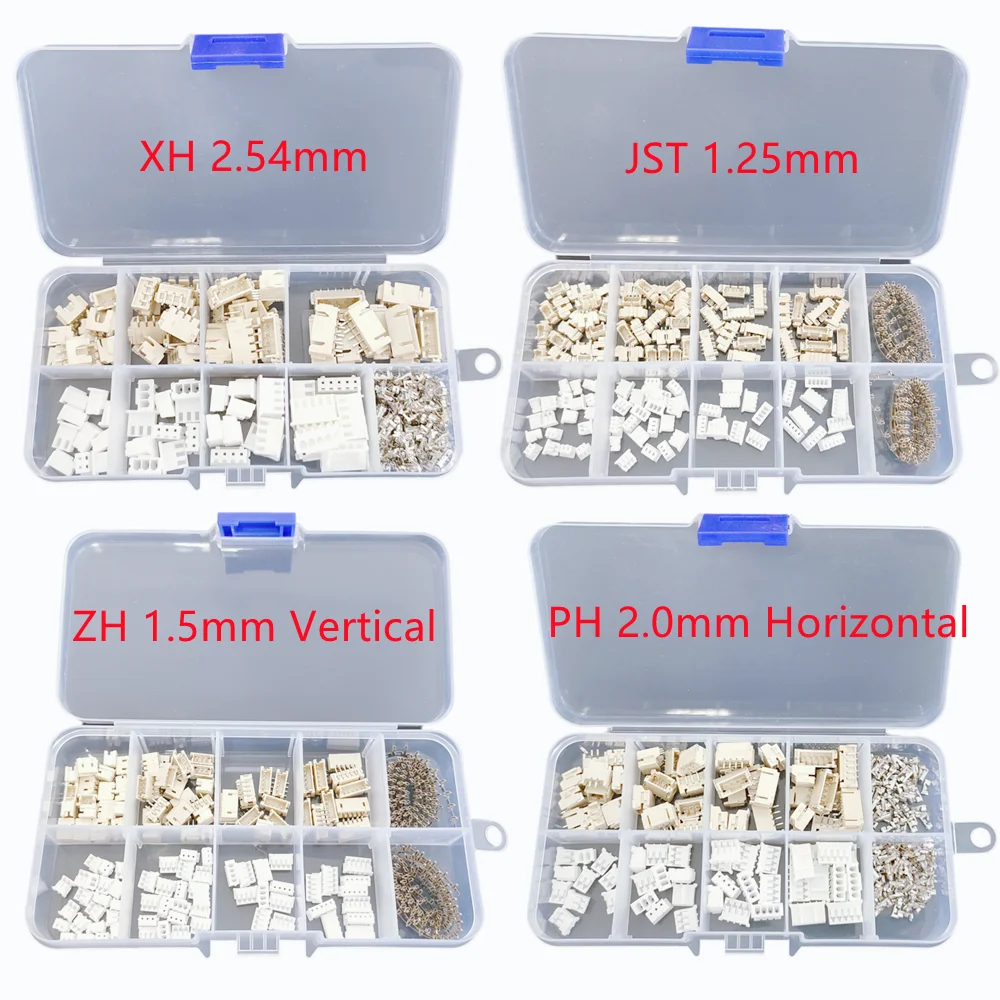

The kit includes JST 1.25mm, SH 1.0mm, ZH 1.5mm, PH 2.0mm, and XH 2.54mm pitch connectors. Each pitch serves distinct applications, from ultra-compact drone components (SH 1.0mm) to more robust general-purpose connections (XH 2.54mm). The inclusion of both horizontal and vertical pin headers further enhances versatility, allowing for flexible board design and space optimization. Proper pitch selection prevents mechanical stress on solder joints and ensures electrical continuity. This variety is essential.

These various connector types are not interchangeable. A JST 1.25mm connector, for instance, will not mate with a ZH 1.5mm header. Understanding these distinctions is paramount for preventing damage to components and ensuring circuit integrity. The kit's broad selection minimizes the need to source individual components for diverse projects, saving considerable time and effort. It simplifies inventory management.

Unlike generic assortments that often lack specific pitches or orientations, this kit provides a targeted selection of the most frequently encountered small-pitch connectors. This focused approach ensures that the user has the right component for the job, reducing frustration and project delays. It's a practical investment.

Terminal Integrity and Connection Reliability

The quality of the crimp terminals is directly linked to the long-term reliability of any electrical connection. The terminals visible in the kit appear to be constructed from tinned brass or phosphor bronze, standard materials known for good conductivity and corrosion resistance. Proper crimping of these terminals onto wires is crucial for establishing a low-resistance, mechanically secure joint. A poor crimp can lead to intermittent connections, increased resistance, and potential overheating. This demands attention.

Achieving a professional-grade crimp requires a dedicated crimping tool matched to the terminal size. While the kit provides the terminals, the user must supply the appropriate tool. Without a proper crimp, the electrical path can be compromised, leading to signal degradation or power loss in low-voltage applications. This directly impacts circuit performance. Consistent connections are vital.

Compared to soldering wires directly to PCBs, which can be prone to fatigue failures or difficult to rework, these crimp-and-plug connectors offer a more modular and serviceable solution. They allow for easy disconnection and reconnection, facilitating testing, maintenance, and component replacement. This modularity enhances the longevity of electronic assemblies. It offers flexibility.

Housing Design and Insulation Properties

The plastic housings for both male and female connectors are designed to provide electrical insulation and mechanical protection for the crimped terminals. The images show a clean, consistent molding, suggesting adequate manufacturing quality for low-voltage applications. The distinction between horizontal and vertical pin headers is critical for board layout, with horizontal headers typically used for side-entry connections and vertical headers for top-entry. Each serves a purpose.

These housings prevent accidental short circuits between adjacent pins and protect the delicate crimp connections from physical stress. The material, likely a nylon or similar engineering plastic, offers sufficient dielectric strength for the intended low-voltage range. However, these are not designed for high-temperature environments or exposure to harsh chemicals. Environmental factors matter.

Unlike bare wire connections or poorly insulated splices, these connector housings provide a standardized, secure, and insulated interface. This significantly reduces the risk of electrical faults and improves the overall safety profile of the electronic assembly. It's a safer alternative. The design promotes order.

Organizational Efficiency and Value Proposition

The kit's segmented storage boxes are a significant advantage. Each connector type and pitch is neatly separated, preventing the common issue of mixed components that plagues many bulk purchases. This organization saves considerable time during assembly or repair, as the correct part is easily identifiable and accessible. Time is money.

For individuals or small businesses frequently working with various electronic projects, the cost-effectiveness of this kit becomes apparent. Purchasing individual bags of each connector type and pitch would be significantly more expensive and logistically challenging. This consolidated kit offers a practical solution for maintaining a well-stocked workbench. It's a smart investment.

Compared to the frustration of searching for a specific connector in a disorganized parts bin, this kit provides immediate visual identification and access. This efficiency translates directly into faster project completion and reduced labor costs. It streamlines workflow. The convenience is undeniable.

Safety Considerations for Low-Voltage DC

While these connectors are primarily for low-voltage DC applications, adherence to proper wiring practices remains essential. Overloading these small-gauge terminals with excessive current can lead to overheating, insulation breakdown, and potential fire hazards. Always verify the current rating of the specific connector series and ensure it matches the circuit's requirements. Safety is paramount. Never exceed ratings.

Proper wire stripping and crimping techniques are not just about reliability; they are also about safety. Exposed wire strands or poorly insulated connections can lead to short circuits, which can damage components or pose an electrical hazard. Double-checking all connections before applying power is a fundamental safety protocol. Preventative measures save trouble.

Unlike high-voltage AC applications where specialized insulation and grounding are critical, low-voltage DC systems still require careful attention to detail. The small size of these connectors means less margin for error in wiring. Always use appropriate wire gauges for the expected current load. This ensures operational integrity. Precision is key.
