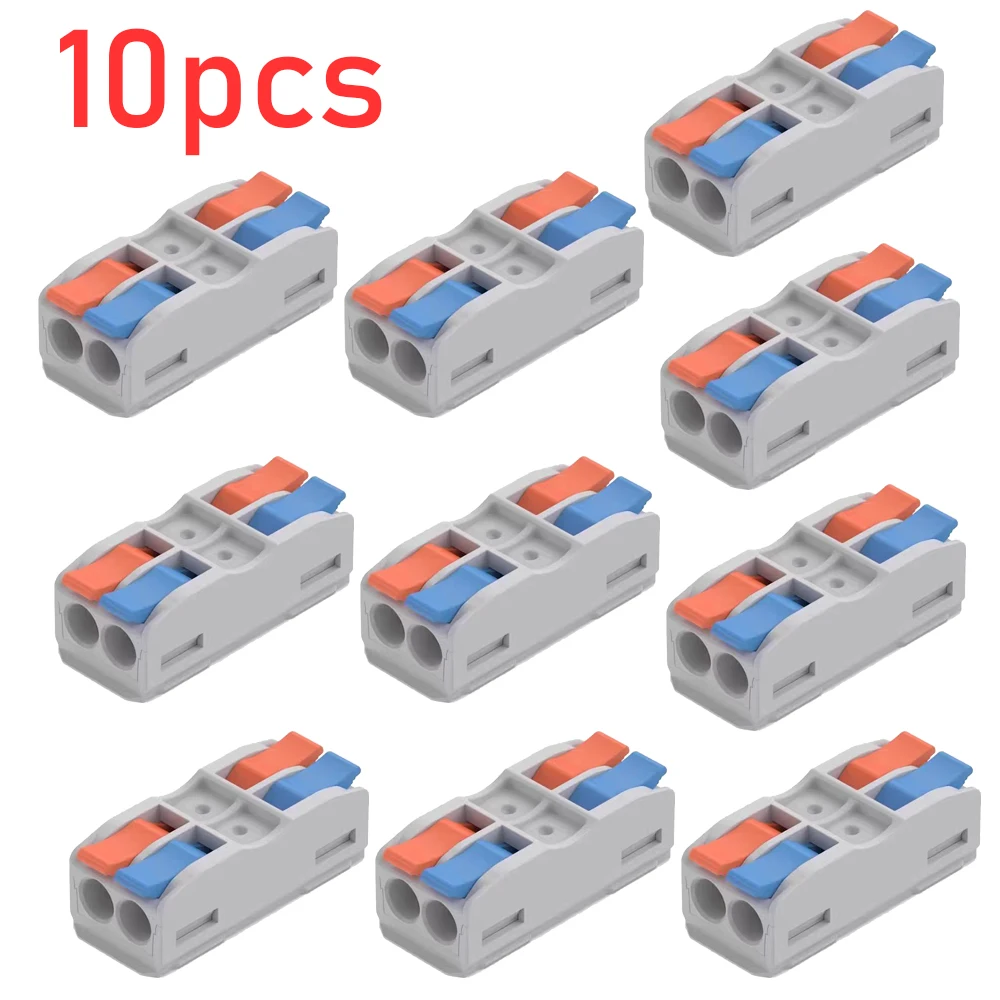

Mini Lever-Nut 2-In-2-Out Fast Wire Connector (10-Pack)

Precision in Electrical Connections: The Mini Lever-Nut Connector

The Mini Lever-Nut 2-In-2-Out Wire Connector is a practical wiring solution designed for rapid, secure electrical connections in lighting and general electrical installations. This component streamlines the process of joining wires, offering a distinct advantage over traditional methods. Its design prioritizes both efficiency and safety in electrical work.

Engineering for Expedited Wiring

These connectors, often referred to as lever-nuts, represent a significant evolution from older wiring techniques. They eliminate the need for twisting wires together or using crimp connectors, which can be time-consuming and require specialized tools. The visible mechanism involves a lever-actuated clamp system.

The core functionality centers on a spring-loaded clamping mechanism. This allows for a quick, tool-free insertion and securing of stripped wire ends. The levers, typically colored for easy identification (orange and blue in this instance), provide a visual cue for their open or closed state. This simplifies installation considerably.

Compared to conventional screw terminals, which demand precise torque and can loosen over time, the lever-nut design offers a consistent clamping force. This ensures a reliable electrical contact, crucial for preventing intermittent connections or potential arcing. It's a reliable alternative.

Current Handling and Voltage Resilience

The product specifications indicate a current rating of 32 Amperes and a voltage rating of 250 Volts. These figures are critical for understanding the connector's operational envelope.

A 32A current rating signifies suitability for a broad spectrum of common household and light commercial electrical circuits. This capacity ensures the connector can handle significant electrical loads without overheating, maintaining stable power delivery. It prevents thermal stress.

Operating at 250V accommodates standard line voltages found in many regions, including 120V and 240V systems. This versatility makes the connector applicable for various lighting circuits, small appliance connections, and general power distribution within its current limits. The voltage rating is adequate.

Unlike lower-rated connectors that might struggle with sustained loads, these units are engineered to maintain their integrity under their specified maximum current and voltage. This contributes to the long-term reliability of the electrical installation, reducing the risk of component failure. It offers peace of mind.

Wire Compatibility and Stripping Requirements

Effective use of these connectors depends heavily on proper wire preparation. The specifications indicate compatibility with wire gauges ranging from 0.2-2.5mm² for solid and stranded wires, and 0.2-4mm² for flexible stranded wires. A stripping length of 10mm is also specified.

The wide range of compatible wire gauges means these connectors can accommodate most common electrical wires encountered in residential and commercial settings. This flexibility is a key benefit, allowing electricians and DIY enthusiasts to use a single type of connector for various tasks. Wire gauge flexibility is high.

Adhering to the 10mm stripping length is paramount for a secure connection. Too little insulation stripped, and the wire might not make full contact; too much, and exposed conductors could lead to short circuits. The visual instructions clearly demonstrate this preparation step. Proper stripping is vital.

In contrast to traditional methods that might be less forgiving of minor variations in wire preparation, the lever-nut system provides a visual confirmation of proper insertion. The wire should be fully seated within the connector, with no stray strands. This visual feedback enhances installation quality and safety. It simplifies verification.

Durability and Material Science

The visible construction of these connectors suggests a robust plastic housing, likely a flame-retardant thermoplastic. The levers themselves appear to be made from a durable, colored plastic. The internal clamping mechanism would involve conductive metal, typically copper or a copper alloy.

The choice of flame-retardant plastic for the housing is a critical safety feature. In the event of an electrical fault or overheating, this material is designed to resist ignition and prevent the spread of fire. This enhances the overall safety profile of the installed electrical system. Fire safety is paramount.

The conductive elements, presumably copper or a similar alloy, are selected for their excellent electrical conductivity and corrosion resistance. This ensures minimal resistance across the connection, reducing power loss and heat generation. A low resistance path is essential.

Unlike older plastic connectors that could become brittle or degrade over time due to UV exposure or temperature fluctuations, modern thermoplastics used in these connectors are formulated for enhanced longevity and stability. This contributes to the long-term reliability of the electrical infrastructure. Material quality matters.

Installation Methodology and Reusability

The installation process is straightforward, as depicted in the visual guide. First, strip the wire to the specified 10mm length. Next, open the lever, insert the stripped conductor fully into the port, and then close the lever to secure the wire. This sequence ensures a firm mechanical and electrical connection.

This intuitive installation method significantly reduces the time required for wiring, especially in projects involving multiple connections like lighting arrays. The visual confirmation of the closed lever provides immediate assurance of a secure connection, minimizing guesswork. Installation is quick and easy.

A key advantage of these lever-nut connectors over crimp or solder connections is their reusability. If a wiring configuration needs to be changed or a component replaced, the levers can be easily opened, wires removed, and then reconnected without damaging the connector or the wire. This flexibility is invaluable.

Traditional methods often require cutting and re-stripping wires, or even replacing the entire connector, making modifications more cumbersome. The reusability of these lever-nuts saves time and material, offering a more sustainable approach to electrical work. It promotes adaptability.

Addressing Common Wiring Frustrations

Many common electrical issues stem from poor connections: loose wires, inadequate insulation, or corroded terminals. These connectors are designed to mitigate such problems directly. The secure clamping action minimizes the risk of loose connections that can lead to flickering lights or intermittent power.

By providing a clear visual guide for stripping length and insertion, the connectors help prevent common installation errors. This reduces the likelihood of exposed conductors, which are a significant safety hazard. Correct installation is simplified.

For those working on lighting projects, where numerous connections are often required in confined spaces, the compact size and ease of use of these connectors are particularly beneficial. They allow for neat and organized wiring, which is critical for both aesthetics and troubleshooting. Wiring becomes manageable.

Unlike traditional wire nuts that can be bulky or difficult to manipulate in tight spaces, the mini lever-nut design offers a more streamlined profile. This makes them ideal for junction boxes or light fixtures where space is at a premium. They fit into tight spots.

Long-Term Reliability and Maintenance

The design of these connectors aims for long-term reliability. The spring-loaded mechanism maintains constant pressure on the conductor, counteracting the effects of thermal expansion and contraction that can loosen screw terminals over time. This consistent pressure ensures stable electrical contact.

Regular inspection of electrical connections is always recommended, but the robust nature of these connectors reduces the frequency of necessary adjustments. Their sealed nature also offers some protection against dust and debris, which can degrade connections over time. Maintenance is reduced.

In scenarios where equipment needs to be serviced or replaced, the reusability of these connectors simplifies the process. Technicians can quickly disconnect and reconnect wires without needing to cut or re-strip, saving valuable time during troubleshooting or upgrades. Serviceability improves.

This contrasts sharply with soldered connections, which are permanent and require specialized tools and skills to undo, or crimped connections that are single-use. The lever-nut system offers a balance of security and flexibility, making it a modern choice for many applications. It balances security and flexibility.

Imagine completing a complex lighting installation with confidence, knowing each connection is secure and reliable, installed quickly and without the fatigue of traditional methods. These connectors provide that assurance, allowing for efficient project completion and enduring electrical integrity. They simplify the task.
