Metric Screw & Thread Pitch Gauge

Precision in Fastener Identification: A Metrologist's Perspective

The Metric Screw & Thread Pitch Gauge is an essential calibration instrument designed for precise identification of metric fasteners, targeting professionals and hobbyists who demand accuracy in their assembly and repair tasks. This tool eliminates the guesswork associated with screw and bolt selection, providing definitive measurements for diameter, length, and thread pitch. Its robust construction and clear markings position it as a superior alternative to less reliable methods, ensuring compatibility and preventing costly errors in various applications.

The Imperative of Accurate Fastener Sizing

In any mechanical or construction endeavor, the correct fastener is paramount. Using an incorrectly sized screw or bolt can lead to stripped threads, loose connections, or even catastrophic structural failure. The frustration of sifting through a bin of unidentified hardware, or the delay caused by ordering the wrong part, is a common pain point for many. This gauge directly addresses these challenges by offering a rapid and unambiguous identification solution.

Unlike relying on visual estimation or imprecise rulers, this gauge provides dedicated apertures and thread profiles. It offers a direct comparison. This capability significantly reduces the time spent on fastener identification, thereby enhancing workflow efficiency and project accuracy. The investment in such a tool quickly translates into savings from avoided material waste and rework.

Engineering for Durability: The 410 Stainless Steel Advantage

The visible material composition of this gauge is 410 stainless steel, a choice that speaks volumes about its intended longevity and performance. This specific alloy is known for its excellent hardness and corrosion resistance, particularly in environments where tools are exposed to varying conditions or frequent handling.

This material selection ensures the gauge maintains its dimensional stability over extended periods of use. It resists bending or deforming, which is critical for a precision measuring instrument. The integrity of the measurement apertures and thread profiles remains uncompromised, guaranteeing consistent accuracy throughout its lifespan. This is a significant upgrade from tools made of softer metals or plastics, which can quickly wear down or deform, leading to inaccurate readings.

Compared to standard carbon steel tools, the 410 stainless steel offers superior protection against rust and oxidation. This extends the tool's operational life. It also reduces the need for frequent replacement, offering a better long-term return on investment for the user. The material choice underscores a commitment to reliable metrology.

Comprehensive Metric Measurement Capabilities

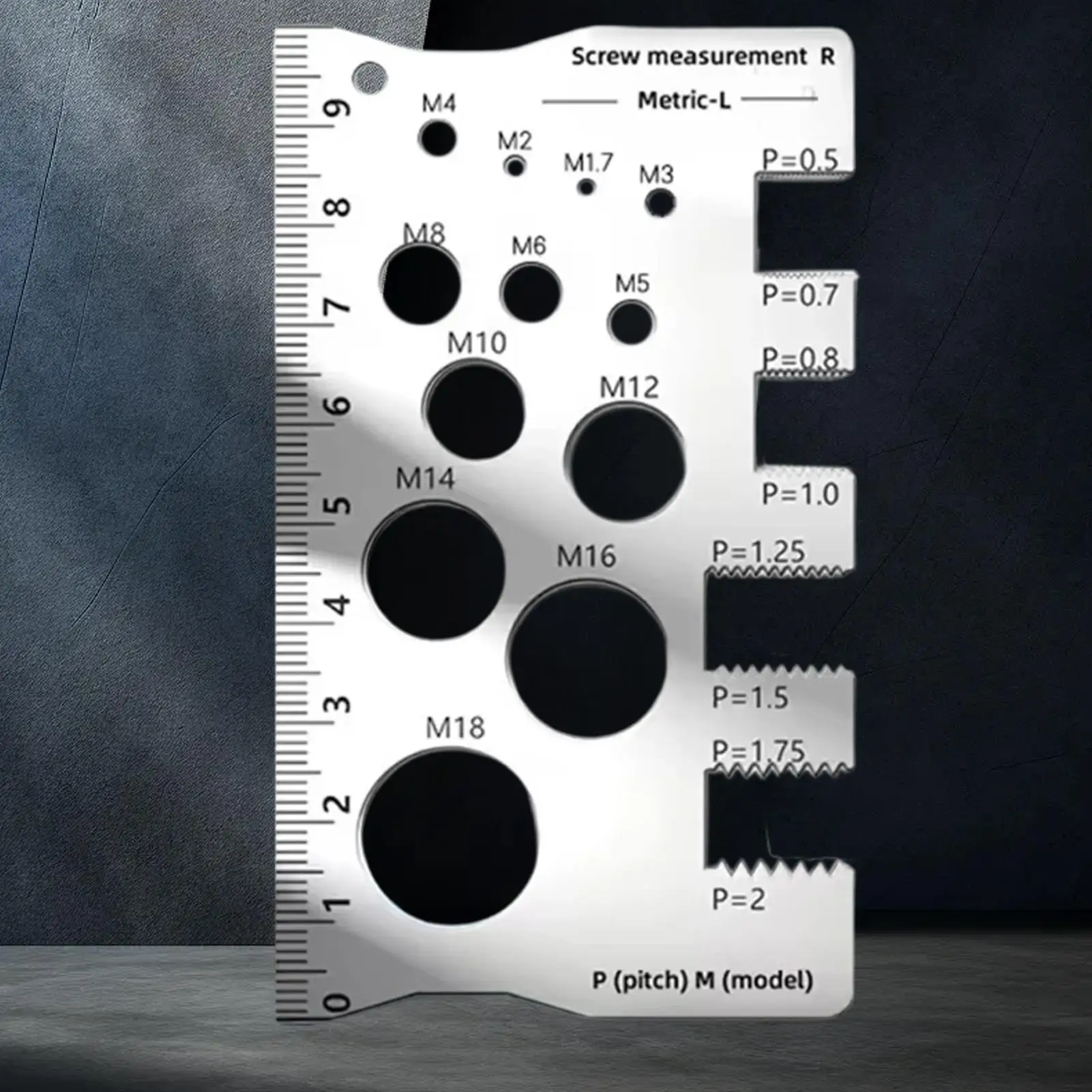

The gauge incorporates a comprehensive range of metric screw diameter measurements, from M2 up to M18. This broad spectrum covers the vast majority of fasteners encountered in common industrial, automotive, and DIY applications. Each diameter is represented by a precisely machined hole, allowing for quick verification of a bolt's nominal diameter.

Beyond diameter, the tool also features a series of thread pitch gauges, covering standard metric pitches from P=0.5 to P=2. These serrated sections allow for direct comparison of a bolt's thread spacing, a critical dimension often overlooked but vital for proper engagement. This dual functionality ensures a complete profile of the fastener can be determined rapidly.

This integrated approach to measurement streamlines the identification process. Users no longer need multiple specialized tools. The inclusion of a linear ruler, marked in centimeters up to 8 cm, further enhances its utility, allowing for quick length measurements of screws and bolts. This makes it a truly versatile instrument for fastener assessment.

Operational Precision and Repeatability

For any measurement tool, the ability to provide repeatable results is fundamental. The design of this gauge, with its fixed apertures and precisely cut thread profiles, inherently promotes high repeatability. Once a fastener fits snugly into a specific hole or aligns perfectly with a thread profile, that measurement is consistently reproducible.

This mechanical design minimizes the potential for user error. It removes subjective interpretation often associated with calipers or micrometers when measuring thread pitch. The direct comparison method ensures that different users can arrive at the same measurement for a given fastener, fostering consistency across projects or teams. This is crucial for quality control.

The clear, laser-etched markings on the stainless steel surface contribute to this precision. They are resistant to fading or wear, ensuring legibility over time. This maintains the instrument's utility and accuracy for years, unlike printed markings that can degrade, leading to misreadings and potential errors in critical applications.

Ergonomics and Portability for the Modern Craftsman

The compact and flat design of the gauge makes it exceptionally portable. Its slim profile allows it to be easily stored in a toolbox, a work apron pocket, or even a shirt pocket, ensuring it is always on hand when needed. This accessibility is a significant advantage for professionals who frequently move between workstations or job sites.

Its anti-slip properties, implied by the solid stainless steel construction and lack of moving parts, suggest a stable grip during use. The absence of complex mechanisms means there are no delicate components to break or misalign, contributing to its overall robustness. This simplicity enhances its reliability in demanding work environments. It is a tool built for the field.

This portability and robust design contrast sharply with bulkier, more delicate digital measuring devices that require batteries and careful handling. The mechanical nature of this gauge means it is always ready for use, without concerns about power sources or environmental sensitivities. It is a reliable companion for any task requiring fastener identification.

Value Proposition: An Investment in Efficiency and Accuracy

Considering its durable 410 stainless steel construction and comprehensive metric measurement capabilities, the gauge offers substantial long-term value. The initial cost is quickly offset by the time saved in fastener identification and the prevention of errors that could lead to material waste or project delays.

This tool is an upgrade from the common practice of trial-and-error or relying on worn-out, less precise measuring instruments. It provides a definitive, unambiguous answer to fastener sizing questions, which translates directly into increased productivity and reduced frustration. The cost-per-use becomes negligible over its extended lifespan.

For any individual or business involved in assembly, maintenance, or fabrication, this gauge represents a strategic investment. It enhances the capability to perform tasks with greater precision and efficiency. Imagine the confidence in selecting the exact fastener every time, knowing your connections are secure and your projects are built to specification. This tool empowers that level of certainty, allowing for smoother operations and superior results in every application.

Fastener Identification Essentials

Diameter Verification

To verify a bolt's diameter, simply insert the bolt into the various circular holes on the gauge. The correct diameter is indicated by the smallest hole the bolt can pass through without excessive force, or the largest hole it cannot pass through. This provides a clear, unambiguous reading.

Thread Pitch Matching

For thread pitch, align the bolt's threads with the serrated profiles on the right side of the gauge. The correct pitch is identified when the bolt's threads perfectly mesh with the gauge's profile, with no gaps or rocking. This visual comparison is highly effective.

Length Measurement

Utilize the integrated 8 cm ruler along the left edge of the gauge to measure the length of the bolt or screw. Place the head of the fastener at the zero mark and read the measurement at the end of the shank. This provides a quick length reference.

Material Durability

The 410 stainless steel construction ensures the gauge resists corrosion and wear. Regular cleaning with a dry cloth will maintain its pristine condition and legibility. Avoid abrasive cleaners that could damage the etched markings.

Storage Recommendations

Store the gauge in a clean, dry environment to prevent any potential surface contamination or damage. While robust, protecting it from impacts with heavier tools will preserve its precision and aesthetic. Its compact size makes storage simple.

Technical Specifications Overview

Material Composition

The gauge is constructed from 410 stainless steel, known for its hardness and corrosion resistance. This ensures long-term durability and maintains measurement accuracy. It is a robust alloy.

Metric Diameter Range

It features precisely machined apertures for metric screw diameters: M2, M3, M4, M5, M6, M8, M10, M12, M14, M16, M18. This covers a wide array of common fasteners. Each hole is clearly labeled.

Metric Thread Pitch Range

Integrated thread pitch gauges cover standard metric pitches: P=0.5, P=0.7, P=0.8, P=1.0, P=1.25, P=1.5, P=1.75, P=2. These profiles allow for accurate thread matching. They are clearly marked.

Linear Measurement Scale

An etched ruler provides linear measurements up to 8 centimeters. This allows for quick length verification. Markings are precise.

Overall Dimensions

Based on visual scaling, the tool measures approximately 10 cm (3.93 inches) in length. Its compact form factor enhances portability. It fits easily in a pocket.

Marking Method

Measurements and labels are applied via laser etching. This ensures high legibility and resistance to wear and fading. Markings are permanent.

Design Features

The design incorporates anti-slip characteristics due to its solid metal construction and lack of moving parts. This provides a secure grip during use. It is a single-piece design.

Measurement Type

This is a metric-only measurement tool. It is specifically designed for metric fasteners. No imperial measurements are included.
