The Lithium Battery Capacity Indicator is a practical power management module designed for electric drill and screwdriver battery packs, providing essential real-time charge status to prevent unexpected downtime on the job site. This compact unit integrates seamlessly into existing battery enclosures or custom power tool builds, offering a visual representation of remaining charge. It's a critical component for any carpenter or tradesperson relying on cordless tools.
Unexpected power loss is a significant frustration on any job. This battery display addresses that directly. It offers a clear, immediate visual cue regarding the battery's state of charge.
Without such an indicator, users often rely on the tool's performance degradation as a sign of low battery. This reactive approach frequently leads to interruptions, project delays, and the need to scramble for a charger. The indicator shifts this to a proactive strategy, allowing for timely battery swaps or recharges.
Unlike simply guessing battery levels or waiting for a tool to sputter, this module provides segmented LED feedback. This clarity ensures continuous workflow, a crucial factor in maintaining productivity and meeting project deadlines.
These modules are available in configurations like 5S and 10S, catering to different battery pack voltages. A 5S configuration typically refers to a battery pack made of five cells in series, resulting in nominal voltages around 18V (fully charged to 21V). Similarly, a 10S configuration uses ten cells in series, yielding nominal voltages of 36V (fully charged to 42V). Understanding these distinctions is vital for proper integration.
These specific voltage ratings (18V, 21V, 36V, 42V) are standard for many cordless power tools, including drills, impact drivers, and circular saws. The indicator's compatibility ensures it can be integrated into a wide range of popular battery platforms that utilize 18650 lithium-ion cells, a common power source for high-drain applications. Proper voltage matching is paramount.
Many generic battery packs lack integrated charge indicators, forcing users to rely on the tool itself or external voltmeters. This product fills that gap, providing a dedicated, always-on display. It offers precise voltage monitoring.

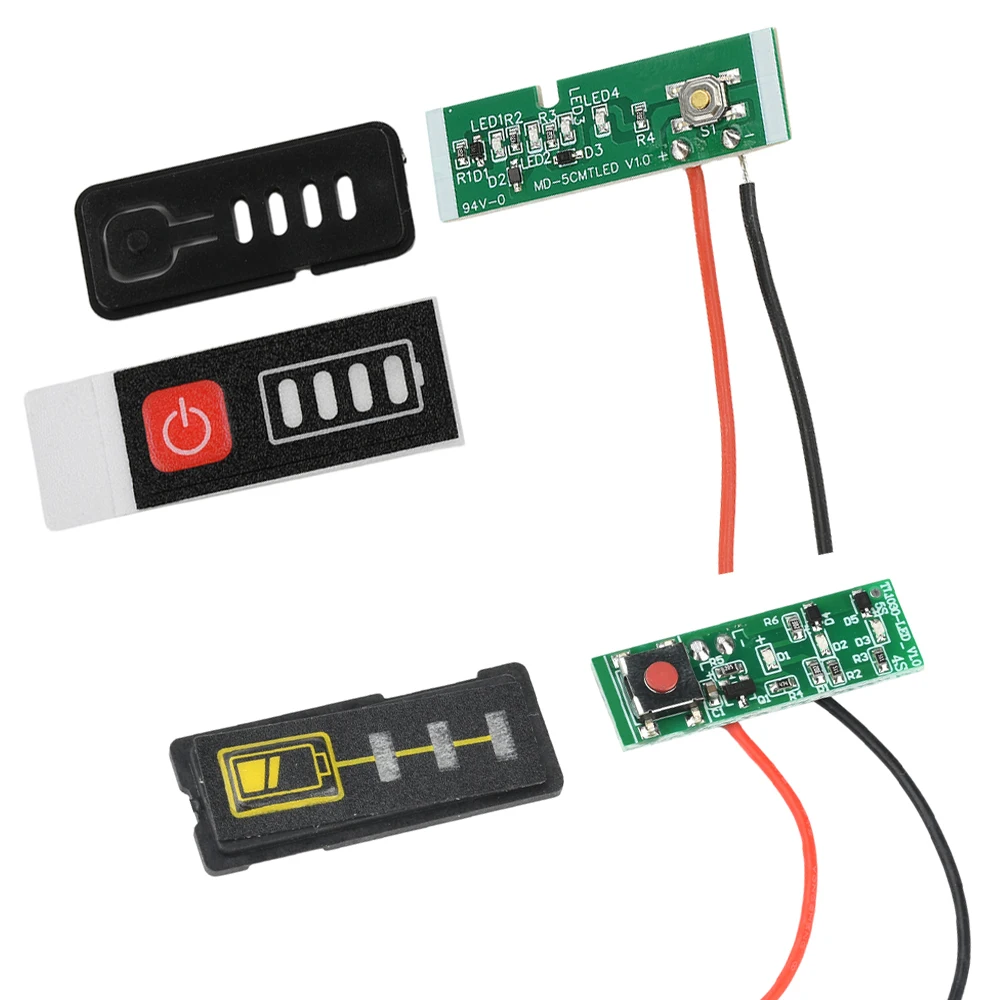

The visible components suggest a design intended for integration within a tool's battery housing or a custom enclosure. The circuit board appears to be a standard PCB with surface-mounted components, including a tactile button and several LEDs. The external plastic fascia, particularly for the 10S model with the red power button, suggests a robust, user-facing interface.
In a workshop environment, components can be subjected to dust, vibrations, and occasional impacts. While the bare PCB would require protection, the plastic overlays provide a degree of resilience for the display itself. The wired connections are direct, allowing for secure soldering or crimping into a battery management system. Durability is key for tool accessories.
Compared to delicate external meters, these integrated modules are designed to become part of the tool's ecosystem. Once properly installed and protected within an enclosure, they are less susceptible to damage. This integration minimizes external snag points.
Installation involves connecting the module to the appropriate positive and negative terminals of the battery pack. For the 5S and 10S models, this means ensuring the indicator is wired to the main output of the battery's Balance Management System (BMS) if one is present, or directly to the pack terminals. Correct polarity is essential.
For a carpenter building a custom battery pack or repairing an existing one, the wiring process is straightforward. The modules come with pre-attached red (positive) and black (negative) wires, simplifying the connection. Secure soldering or robust connectors are recommended to withstand the vibrations and demands of power tool use. A clean connection prevents issues.
Unlike plug-and-play accessories, these modules require a basic understanding of electronics and soldering. However, the benefits of a permanent, integrated solution far outweigh the minimal installation effort for those with the necessary skills. The result is a professional finish.
For professionals, time is money. A dead battery means lost productivity. This indicator directly contributes to maximizing tool uptime by providing actionable information. It allows for proactive battery management.
Imagine being in the middle of framing a wall or cutting intricate joinery. Suddenly, the drill slows to a halt. This scenario, common with unmonitored batteries, forces a halt in work, a search for a charged battery, and a break in concentration. With the indicator, a quick glance prevents this. It keeps the project moving.
This small investment in a battery display translates into significant efficiency gains. It eliminates the guesswork, reduces downtime, and allows carpenters to focus on their craft rather than their tool's power status. The clear, segmented display is easy to read even in varying light conditions, ensuring that critical information is always accessible. It's a simple upgrade that delivers substantial operational benefits, making every minute on the job count and ensuring that projects stay on schedule without frustrating power interruptions. This capability allows users to manage their battery-powered tools more efficiently, ensuring continuous workflow and preventing project delays.
Imagine the seamless flow of your workday, transitioning effortlessly between tasks without the jarring interruption of a dead battery. Visualize the confidence of knowing exactly how much power remains, allowing you to plan your cuts and drills with precision. This small module empowers you to maintain peak productivity, turning potential frustrations into smooth, uninterrupted progress on every project.
