Expert Analysis Overview
The KF 2EDGRKC 5.08mm Pitch Plug-in Terminal Blocks are a highly adaptable and secure interconnection solution engineered for electrical systems demanding both reliability and ease of maintenance. These components are crucial for professionals and hobbyists constructing or servicing control panels, industrial machinery, and various electronic circuits where modularity and robust connections are paramount.
These terminal blocks feature a standardized 5.08mm pitch, a critical dimension in printed circuit board (PCB) design. This specific spacing ensures broad compatibility with a vast array of existing PCB layouts and industrial standards, simplifying integration into new or legacy systems. The consistent pitch eliminates guesswork during design and replacement, fostering a streamlined workflow.
In practical applications, the 5.08mm pitch allows for dense yet manageable wiring configurations. This is particularly beneficial in control cabinets or embedded systems where space is at a premium, but individual wire access remains necessary. Unlike non-standardized terminal blocks that can complicate sourcing and lead to custom PCB designs, the KF 2EDGRKC adheres to an industry-accepted footprint, making it a versatile choice.
The core functionality of these units revolves around their solderless screw terminal connection. This method provides a mechanically secure and electrically sound contact without the need for specialized soldering equipment or skills. Wires are simply stripped, inserted, and tightened down with a screwdriver. This is a significant advantage for field installations or repairs where soldering might be impractical or prohibited due to environmental conditions.
For an electrician, the solderless connection translates directly to reduced installation time and enhanced safety. Proper torque on the screw ensures a low-resistance connection, minimizing heat generation and the risk of arcing. Compared to traditional soldered connections, which can be prone to cold joints or require skilled labor, screw terminals offer a more forgiving and accessible termination method, especially for stranded wires.
Furthermore, the inclusion of a lock plate mechanism elevates the security of the connection. This feature provides a positive mechanical latch between the plug and its mating header, preventing accidental disconnections due to vibration, shock, or inadvertent tugging on cables. This is a critical design element for equipment operating in dynamic environments.
Consider a scenario involving machinery subject to constant vibration. A standard plug-in terminal without a locking mechanism could gradually work itself loose, leading to intermittent faults or complete system failure. The integrated lock plate actively counters these forces, maintaining electrical continuity and system uptime. This contrasts sharply with basic friction-fit connectors, which offer minimal resistance to mechanical stress.
These terminal blocks are designed for plug-in socket mounting, offering unparalleled flexibility in system assembly and maintenance. The ability to quickly connect and disconnect entire sections of wiring simplifies troubleshooting, module replacement, and system upgrades. This modular approach significantly reduces downtime in complex electrical installations.
Imagine a large control system with numerous sensors and actuators. If a module needs servicing, the plug-in design allows for its rapid removal and replacement without disturbing adjacent wiring or requiring extensive re-termination. This capability is a stark improvement over permanently wired systems, where component replacement often necessitates cutting and re-splicing wires, introducing potential points of failure.

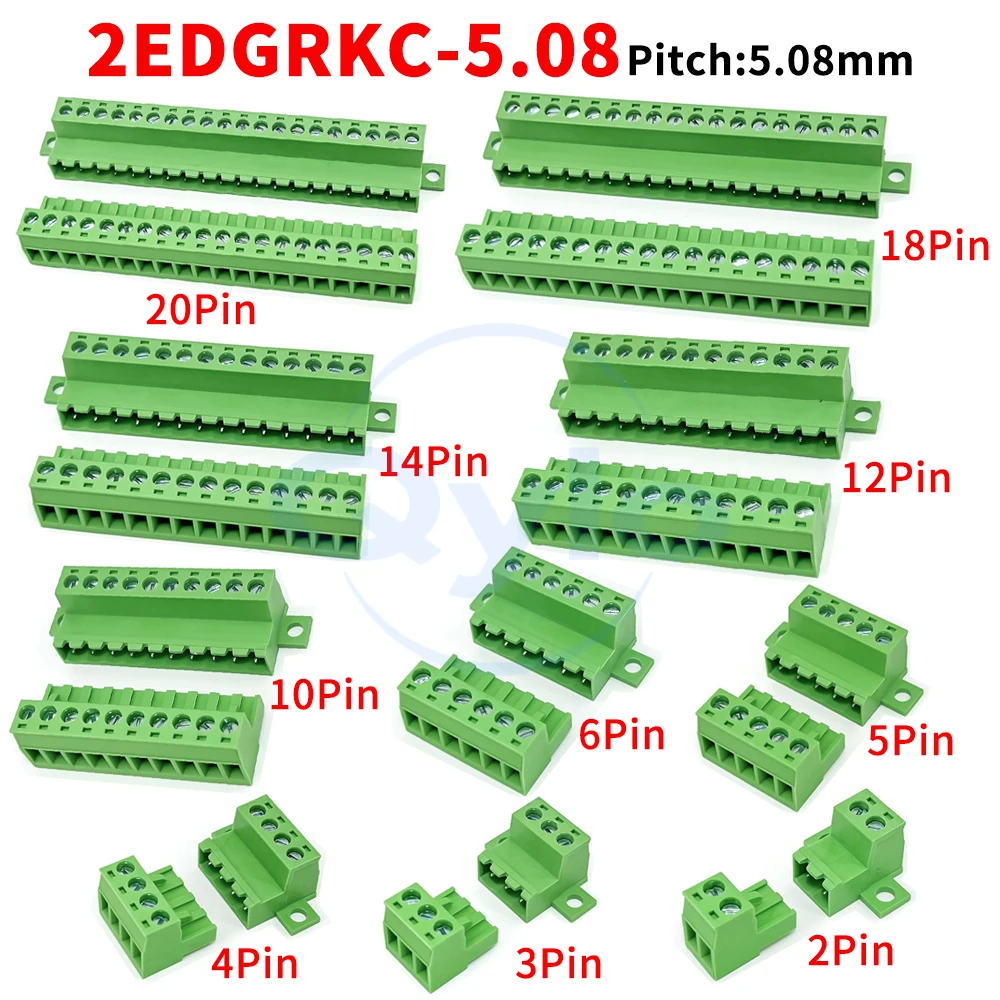

The modular construction is evident in the availability of various pin counts, ranging from 2-pin to 24-pin configurations. This extensive range allows designers to select the exact number of connections required for each specific circuit, optimizing space utilization and minimizing unnecessary bulk. A smaller footprint is often better.
This versatility means a single product line can cater to diverse application needs, from simple two-wire sensor connections to complex multi-channel data or power distribution. Unlike fixed-size terminal blocks that might force designers to use oversized connectors or multiple smaller ones, the KF 2EDGRKC series provides a tailored solution for virtually any pin count requirement within its range.
Constructed from insulated plastic, typically a polyamide (PA66), these terminal blocks offer good electrical insulation properties and mechanical strength. The green color is a common industry standard for such components, aiding in visual identification within a crowded electrical panel. The material choice balances cost-effectiveness with performance.
While plastic construction is generally robust for typical indoor industrial and commercial applications, it is important to consider its limitations. The material provides adequate protection against common environmental factors but may not be suitable for extreme high-temperature environments or applications requiring chemical resistance beyond standard industrial solvents. For such specialized needs, ceramic or metal-bodied terminals would be necessary.
The voltage rating of 300V and current rating of 10A (as indicated in the technical drawings) positions these terminal blocks firmly within the low-voltage control and signal wiring domain. These ratings are suitable for a wide range of industrial control circuits, power supplies for small devices, and general electronic projects. Always verify the specific ratings for the exact part number.
Exceeding these ratings can lead to overheating, insulation breakdown, and potential fire hazards. Compared to heavy-duty power distribution blocks designed for hundreds of amps, these units are optimized for signal integrity and lower power applications, where their compact size and modularity offer distinct advantages.
Investing in reliable terminal blocks like the KF 2EDGRKC series offers significant long-term value. The initial cost, while minimal, is offset by the reduced labor time during installation and maintenance, and the enhanced system reliability. Preventing just one service call due to a loose connection can easily justify the cost of these components.
Consider the total cost of ownership for an electrical system. Components that facilitate quick repairs and offer robust connections contribute directly to operational efficiency and reduced downtime. This is a stark contrast to cheaper, less reliable alternatives that might save a few cents upfront but lead to costly failures and extensive troubleshooting later.
When selecting terminal blocks, factors such as wire gauge compatibility, environmental conditions, and required current/voltage ratings are paramount. The KF 2EDGRKC series supports a wire gauge range of 12-24 AWG, accommodating a broad spectrum of common electrical wiring. This flexibility ensures that a single type of terminal block can be used across various parts of a project.
Proper wire stripping and insertion are crucial for optimal performance. The screw terminals are designed to securely clamp the conductor without damaging the wire strands, provided the correct stripping length is observed. This attention to detail in the connection process directly impacts the long-term reliability of the electrical system.
The KF 2EDGRKC 5.08mm Pitch Plug-in Terminal Blocks represent a practical and efficient solution for managing electrical connections. Their design prioritizes ease of use, security, and modularity, making them an excellent choice for applications ranging from prototyping to industrial control systems. The standardized pitch and robust locking mechanism ensure that your electrical infrastructure remains stable and adaptable.
Imagine the efficiency gained when troubleshooting a complex system, quickly swapping out modules without re-wiring. Picture the peace of mind knowing that critical connections are secured against vibration and accidental dislodgement. These terminal blocks empower you to build and maintain electrical systems with confidence, ensuring longevity and operational continuity for all your projects.
