Insulated 4mm Banana Plugs for Multimeter Test Leads
Official Store Deal
Expert Analysis Overview
Precision Connections: An Electrical Engineer's Review
The Insulated 4mm Banana Plugs are essential electrical connectors engineered for secure, low-resistance connections in multimeter test leads and various DIY electronics projects. This 10-piece set provides a fundamental component for anyone constructing or repairing their own electrical testing apparatus. The design prioritizes user safety and connection integrity, critical aspects in any electrical work.
These plugs are not merely generic connectors. They represent a deliberate choice for applications demanding both flexibility and a degree of protection. The visible construction suggests a focus on practical utility for hobbyists, students, and professional technicians alike. Each component plays a role in the overall performance.
Compared to basic, uninsulated banana plugs, these shrouded versions offer a significant upgrade in user protection. This is a crucial distinction for safety.
Safeguarding Electrical Integrity
The most prominent feature of these banana plugs is their shrouded design. Each plug consists of a metal pin housed within a robust, insulated plastic casing, available in distinct red and black colors. This shrouding extends over the conductive metal, minimizing the risk of accidental contact with live terminals.
Accidental contact can lead to short circuits, equipment damage, or even electrical shock. The insulated housing acts as a physical barrier, preventing fingers or other conductive objects from inadvertently touching the energized pin. This is a fundamental safety measure.
Standard banana plugs often leave a portion of the metal conductor exposed. This product's design mitigates that inherent risk, aligning with safer electrical practices for test and measurement applications. It enhances user confidence.
The Conductor's Core: Pin Quality and Conductivity

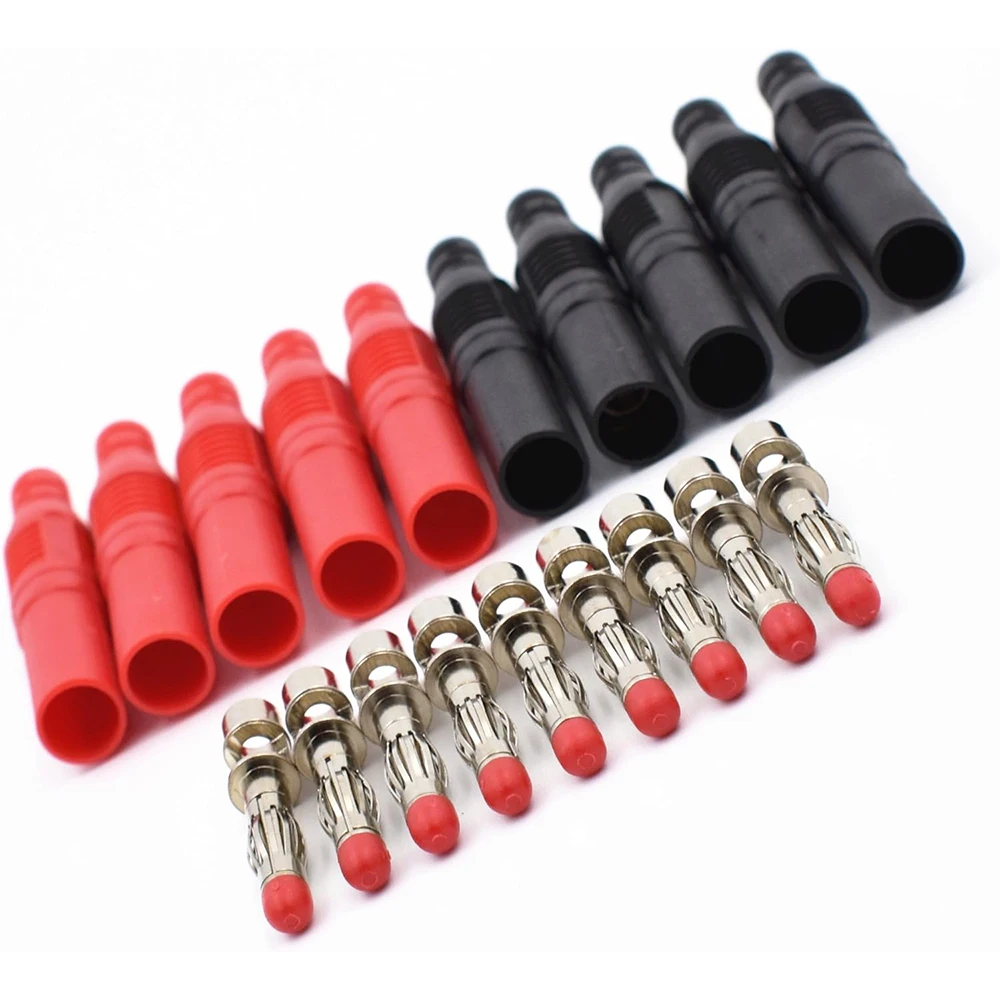

At the heart of each plug is a 4mm metal pin, visible in the disassembled views. These pins are typically constructed from a copper alloy, chosen for its excellent electrical conductivity and corrosion resistance. The spring-loaded design ensures a snug fit within corresponding 4mm banana jacks, maintaining a consistent electrical connection.
Good conductivity is paramount for accurate measurements, especially when dealing with sensitive multimeter readings. A poor connection can introduce unwanted resistance, leading to inaccurate voltage or current readings. The robust spring mechanism helps to counteract this.
Unlike lower-quality connectors that might use inferior metals or weak spring mechanisms, these pins appear designed for reliable, repeated insertions. This ensures signal integrity over time. Consistent performance is expected.
Assembly and Application Versatility
These are solder DIY connectors, meaning they require the user to solder their own wires to the internal contact points. This approach offers significant advantages in terms of connection quality and customization. A soldered joint provides a mechanically strong and electrically stable connection.
Users can select the precise wire gauge and length required for their specific application, tailoring test leads to their exact needs. This flexibility is invaluable for custom projects or replacing damaged leads without purchasing entirely new assemblies. Customization is a key benefit.
Pre-made test leads, while convenient, often come in fixed lengths and wire gauges that may not always be optimal. The DIY nature of these plugs empowers the user to create bespoke solutions, potentially saving costs and improving functionality. It's an economical choice.
Longevity in the Lab and Field
The visible plastic housing appears to be made from a durable, impact-resistant material. This is crucial for connectors that will see frequent use and potential handling in various environments. The material choice directly impacts the lifespan of the plugs.
Connectors used in test and measurement often endure bending, pulling, and occasional drops. A resilient housing protects the internal metal components from physical damage and maintains the integrity of the insulation. Durability is a practical concern.
While not designed for extreme industrial abuse, these plugs offer sufficient robustness for typical laboratory, workshop, and field service applications. They are built for consistent, everyday use. Expect reliable service.
The Value Proposition for the Electrical Enthusiast
This set provides 10 pieces, offering excellent value for money. Having a supply of these connectors on hand allows for multiple projects, repairs, or the creation of various specialized test leads. It's a practical bulk purchase.
The cost-effectiveness of these DIY plugs, especially when compared to purchasing multiple sets of pre-assembled test leads, is substantial. This makes them an attractive option for educational institutions, hobbyists, and small businesses. Budget-friendly solutions are always welcome.
Investing in these connectors means investing in the capability to build and maintain a versatile set of electrical testing tools. It's an enabler for electrical exploration and problem-solving. Your toolkit expands significantly.
Installation Protocol and Best Practices
Proper installation of these solder-type banana plugs is critical for both performance and safety. The process involves stripping the wire, tinning the conductor, and then carefully soldering it to the internal cup of the metal pin. A clean, strong solder joint is essential.
Using the correct soldering iron temperature and appropriate solder ensures a solid electrical and mechanical bond. Overheating can damage the insulation, while insufficient heat results in a cold joint, leading to intermittent connections and increased resistance. Precision is key here.
After soldering, the insulated shroud slides over the pin and wire, securing the connection and completing the insulation. Verifying the integrity of the solder joint and the insulation before use is a mandatory safety check. Always inspect your work.
Understanding Current Ratings and Wire Gauge
While specific current ratings are not explicitly provided for these generic plugs, the 4mm banana plug standard typically implies suitability for low to medium current applications, often up to 10-15 Amperes, depending on the wire gauge used. The wire gauge selected by the user will ultimately dictate the maximum safe current. Thicker wires handle more current.
It is imperative to match the wire gauge to the expected current load of the circuit being tested. Using too thin a wire for a high current can lead to overheating, insulation breakdown, and potential fire hazards. This is a critical safety consideration.
For multimeter test leads, where currents are generally low, these plugs are well-suited. However, for power supply applications or high-current testing, users must exercise caution and ensure their wire choice and soldering technique can safely handle the load. Always calculate your load.
Polarity and Identification
The inclusion of both red and black insulated housings is not merely aesthetic; it serves a crucial function in electrical safety and proper circuit identification. Red typically denotes positive polarity or a live connection, while black signifies negative or ground. This color coding is a universal standard.
Maintaining correct polarity is vital when working with DC circuits and sensitive electronic components. Incorrect polarity can damage devices or lead to erroneous readings. The distinct colors make identification straightforward.
This clear visual distinction helps prevent wiring errors during assembly and ensures that test leads are connected correctly to the multimeter and the circuit under test. It simplifies complex setups. Visual cues are powerful.
The Importance of a Secure Connection
The spring-loaded design of the 4mm banana pin ensures a secure, low-resistance connection when inserted into a compatible jack. This mechanical integrity is as important as the electrical conductivity. A loose connection can cause intermittent signals or arcing.
Intermittent connections can be frustrating during troubleshooting, leading to false readings or difficulty in diagnosing circuit issues. The robust spring action helps maintain constant contact, even with slight movement. Stability is non-negotiable.
Compared to friction-fit or poorly designed plugs, these offer a more reliable engagement, reducing the chances of accidental disconnection during critical measurements. This contributes to overall testing accuracy and efficiency. Trust your connections.
Environmental Considerations and Storage
While these plugs are not rated for extreme environmental conditions, their plastic housing offers a degree of protection against dust and minor splashes. Proper storage in a dry, clean environment will extend their lifespan and maintain their electrical integrity. Keep them clean.
Exposure to excessive moisture, corrosive chemicals, or extreme temperatures can degrade the plastic insulation and metal contacts over time. Storing them in a dedicated compartment or case is recommended. Protect your investment.
Regular inspection for any signs of physical damage, such as cracks in the insulation or bent pins, is a good practice. Damaged plugs should be replaced immediately to prevent safety hazards. Safety first, always.
Final Assessment: Empowering the Electrical Practitioner
These insulated 4mm banana plugs are a practical and safety-conscious choice for anyone involved in electrical work, from hobbyists to professional technicians. Their DIY nature allows for unparalleled customization, while the shrouded design significantly enhances user safety. The robust construction and clear color coding contribute to reliable performance and ease of use. By providing the means to create custom, secure test leads, these plugs empower users to tackle a wide range of electrical projects with confidence and precision. Imagine the efficiency of having perfectly tailored test leads for every specific task, knowing each connection is secure and insulated, streamlining your diagnostic process and enhancing your overall safety in the workshop. This set is a foundational element for any well-equipped electrical bench.
Key Features for Electrical Work
Enhanced Safety with Shrouded Design
The shrouded 4mm banana plugs provide a critical layer of protection against accidental contact with live terminals, significantly reducing the risk of electrical shock or short circuits during testing. This design ensures safer handling in various electrical environments.
Optimal Conductivity with Copper Alloy Pins
Featuring high-quality copper alloy pins, these connectors ensure superior electrical conductivity and minimal resistance, which is essential for accurate and reliable measurements with multimeters and other testing equipment. Expect precise readings every time.
Clear Polarity Identification
The inclusion of red and black insulated housings allows for immediate and unambiguous identification of positive and negative polarities, preventing wiring errors and ensuring correct circuit connections. This simplifies setup and enhances safety.
Robust Solder Connection Points
Designed for solder connections, these plugs offer a permanent and highly stable electrical bond between the wire and the connector, minimizing signal loss and ensuring long-term reliability in custom test leads. A secure connection is guaranteed.
Versatile DIY Application
As DIY connectors, they provide the flexibility to create custom-length test leads with specific wire gauges, making them ideal for tailored solutions in electronics projects, repairs, and specialized testing setups. Build exactly what you need.
Cost-Effective 10-Piece Set
This 10-piece set offers excellent value, providing multiple connectors for various projects or replacements, making it an economical choice for hobbyists, students, and professionals. Stock up and save.
Electrical Connection Essentials
Secure and Insulated Connections
The shrouded design of these banana plugs is a primary safety feature, preventing inadvertent contact with live conductors. This is crucial for maintaining a safe working environment, especially when dealing with energized circuits. The insulation extends over the metal pin, providing a physical barrier.
Reliable Signal Transmission
The copper alloy pins are engineered for optimal electrical conductivity. This ensures that the signals from your multimeter are transmitted accurately and with minimal resistance, which is vital for precise diagnostic work. Poor conductivity can lead to erroneous readings, making troubleshooting difficult.
Clear Polarity Identification
The red and black color coding is a universally recognized standard for electrical polarity. This visual cue helps prevent misconnections, which can damage sensitive electronic components or lead to incorrect test results. Proper identification streamlines the setup process.
Durable Construction for Longevity
The plastic housing is designed to withstand the rigors of regular use in a workshop or field environment. Its durability protects the internal components and maintains the integrity of the insulation, ensuring a longer lifespan for your test leads. These plugs are built to last.
Customization for Specific Needs
Being solder-type connectors, they allow users to choose their preferred wire gauge and length. This customization is invaluable for creating specialized test leads that perfectly match the requirements of a particular project or measurement task. Tailored solutions enhance efficiency.
Economical Bulk Purchase
This 10-piece set offers significant cost savings compared to buying individual plugs or pre-assembled leads. It's an ideal choice for those who frequently build or repair electrical test equipment, providing a ready supply of essential connectors. Value is clear.
Considerations for Electrical Work
Soldering Requirement
These plugs require soldering for assembly, which means users must possess basic soldering skills and equipment. This is not a plug-and-play solution, and improper soldering can compromise both electrical performance and safety. It adds an assembly step.
Unspecified Current Rating
While suitable for typical multimeter use, the maximum current rating is not explicitly stated. Users must exercise caution and ensure the chosen wire gauge and application do not exceed the inherent current-carrying capacity of a 4mm banana plug, which is generally in the low to medium ampere range. This requires user judgment.
Plastic Housing Durability
The plastic housing, while robust, may not withstand extreme mechanical stress or harsh industrial environments as effectively as more specialized, heavy-duty connectors. Repeated severe impacts could potentially compromise the insulation. Handle with reasonable care.
Generic Origin
As a generic product, specific certifications (e.g., UL, CE) for the insulation material or overall assembly are not typically provided. While the design incorporates safety features, users relying on strict regulatory compliance for professional applications should verify suitability. This is a common trade-off for generic components.
