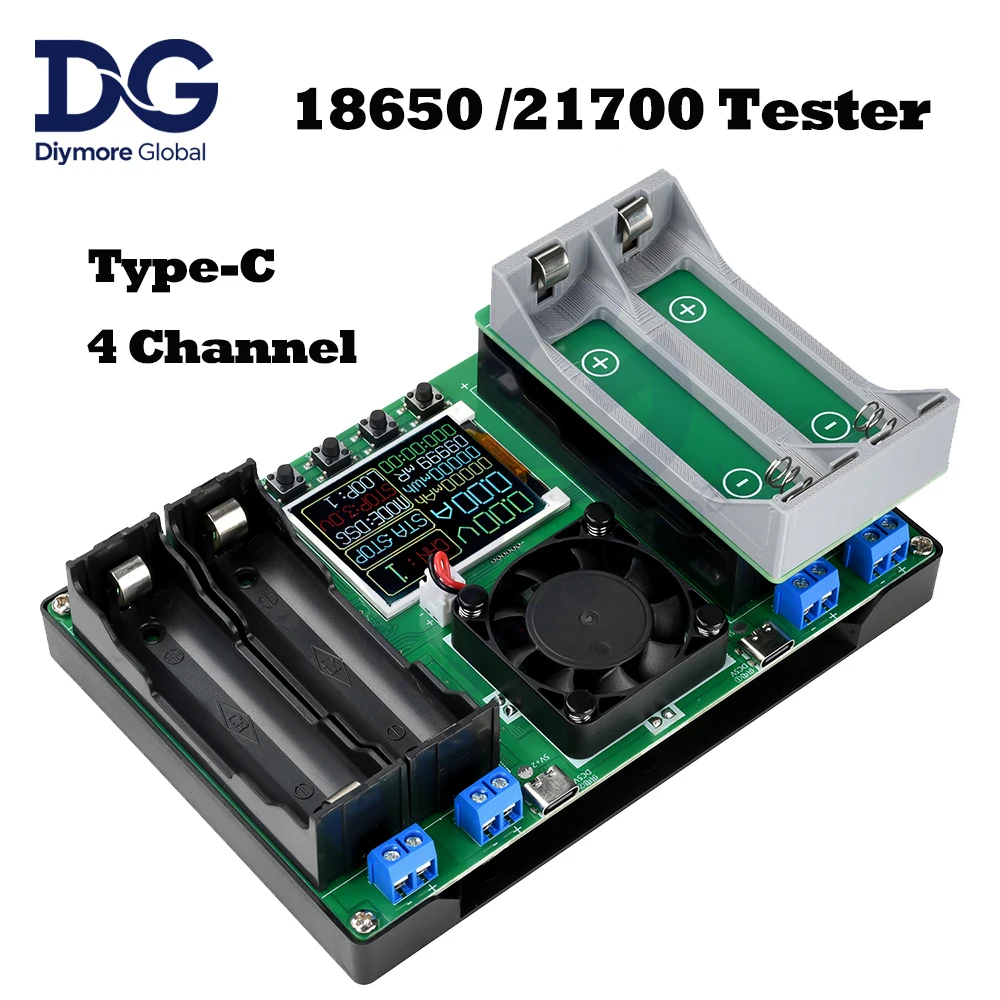

DIYMORE 18650/21700 4-Channel Battery Tester

Precision Battery Diagnostics for the Modern Enthusiast

The DIYMORE 18650/21700 4-Channel Battery Tester is a critical diagnostic instrument designed for enthusiasts and professionals who demand precise insights into their lithium-ion cell performance. This device serves as an essential tool for evaluating the true health and capacity of 18650 and 21700 batteries, offering a level of detail far beyond what standard chargers provide. It is a robust solution for anyone involved in battery reclamation, custom pack building, or simply ensuring optimal power source reliability.

Unveiling True Battery Health

The core functionality of this tester revolves around its ability to conduct comprehensive charge and discharge cycles. The device visually displays real-time voltage, current, and accumulated capacity (mAh/Wh) on its integrated LCD screen. This provides immediate feedback on battery behavior.

Such detailed real-time data is crucial for identifying underperforming cells within a batch. It allows users to quickly sort and categorize batteries based on their actual usable capacity, rather than relying on manufacturer labels which can often be inaccurate for used cells. This level of scrutiny ensures that only healthy, reliable batteries are put into service, preventing potential issues down the line.

Unlike basic battery chargers that merely indicate a full charge, this tester performs a full cycle analysis. It measures the energy a battery can *actually* store and deliver, offering a definitive assessment of its remaining lifespan and performance characteristics. This capability is paramount for safety and efficiency.

Advanced Internal Resistance Measurement

A standout feature is the integrated internal resistance tester. The device can measure the internal resistance of each battery. This is a key indicator of a battery's overall health and ability to deliver current.

High internal resistance signifies an aging or damaged cell, which can lead to reduced performance, increased heat generation, and even safety hazards during discharge. The tester provides a quantifiable metric for this crucial parameter. This allows for proactive identification of cells that are nearing end-of-life or are unsuitable for high-drain applications. It's a vital diagnostic.

Compared to simpler testers that might only show voltage, the inclusion of internal resistance measurement elevates this unit to a professional-grade diagnostic tool. It empowers users to make informed decisions about cell suitability for specific applications, enhancing both performance and safety in battery-powered projects. This is a significant upgrade.

Multi-Channel Operation and Cycle Testing

The unit features four independent channels, allowing for simultaneous testing of up to four batteries. Each channel operates autonomously, meaning different batteries can be in various stages of testing (charging, discharging, or idle) concurrently. This significantly boosts efficiency.

For users managing a large inventory of cells, the ability to process multiple batteries at once drastically reduces the overall testing time. It streamlines the workflow for battery pack builders or those engaged in large-scale cell reclamation. Time is money.

Many entry-level testers offer only one or two channels, creating bottlenecks in testing operations. This 4-channel configuration provides a distinct advantage, enabling parallel processing and quicker turnaround for comprehensive battery assessments. It's a productivity multiplier.

Furthermore, the device supports up to 9 charge and discharge cycles in automatic mode. This multi-cycle capability is essential for thoroughly conditioning new batteries or for deeply evaluating the consistency and stability of used cells over repeated stress tests. Consistency is key.

Performing multiple cycles helps to reveal intermittent faults or capacity degradation that might not be apparent after a single cycle. It provides a more robust and reliable assessment of a battery's long-term performance potential. This is invaluable for critical applications.

Simpler testers often lack multi-cycle functionality, providing only a snapshot of battery performance. The ability to automate multiple cycles offers a more comprehensive and statistically significant evaluation, mimicking real-world usage patterns more closely. This ensures thorough analysis.

Versatile Battery Compatibility

Designed primarily for 18650 and 21700 lithium-ion batteries, this tester caters to two of the most popular cell formats in use today. These battery types power everything from flashlights and power tools to electric vehicles and portable electronics. Broad compatibility is a major asset.

The inclusion of an optional 2P-21700 battery expansion test plug further enhances its versatility. This plug allows 21700 cells to be securely tested within the 18650 battery holders, eliminating the need for separate dedicated slots for the larger cells. Adaptability is crucial.

Many battery testers are limited to a single cell size or require cumbersome adapters. This thoughtful design ensures that users can test a wide range of common cylindrical lithium-ion cells with minimal fuss, making it a more flexible and future-proof investment. It covers essential formats.

Intuitive LCD Display and Control

The integrated LCD display provides clear, concise information at a glance. It presents voltage, current, capacity, and internal resistance readings in an easy-to-understand format. Data visibility is excellent.

This visual feedback is critical for monitoring the testing process in real-time and for quickly interpreting the results. The display ensures that users can track the progress of each battery and identify any anomalies without needing external equipment. Clear data is essential.

Compared to testers that rely on LED indicators or require connection to a PC, the standalone LCD offers immediate accessibility and convenience. Users can operate and monitor the device directly, making it highly practical for workbench use. It's user-friendly.

Robust Power and Cooling System

The tester is powered by two 5V 3A Type-C power supplies. This dual input ensures stable and sufficient power delivery for simultaneous charging and discharging across all four channels, even under heavy loads. Stable power is vital.

Adequate power input is essential for accurate testing and for preventing measurement inaccuracies due to power fluctuations. The Type-C interface offers modern connectivity and broad compatibility with existing power adapters. It's a modern choice.

Some budget testers may struggle with power delivery when all channels are active, leading to slower testing or inaccurate results. This dual 5V 3A setup ensures consistent performance, even when pushing the device to its limits. It handles the load.

An integrated cooling fan is a crucial component for maintaining optimal operating temperatures during intensive testing cycles. Charging and discharging batteries, especially at higher currents, generates heat. The fan dissipates this heat effectively.

Effective thermal management is paramount for both the longevity of the tester and the safety of the batteries being tested. Overheating can compromise measurement accuracy and potentially damage cells. The fan prevents this.

Many simpler testers omit active cooling, risking thermal throttling or premature component failure. The inclusion of a dedicated cooling fan demonstrates a commitment to reliable, long-term performance under demanding conditions. It ensures stable operation.

Comprehensive Diagnostic Capability

This device acts as a comprehensive diagnostic station for battery health. It allows users to identify hidden degradation in cells that might otherwise appear functional. This prevents unexpected failures.

By meticulously measuring capacity and internal resistance, the tester can pinpoint cells with reduced energy storage or impaired current delivery capabilities. This is akin to a home inspector using specialized tools to find structural weaknesses before they become major problems. It reveals underlying issues.

Furthermore, the ability to perform multiple charge/discharge cycles helps in pinpointing inefficient charge/discharge cycles. This is crucial for understanding how a battery performs under repeated stress and identifying any inconsistencies in its behavior. Consistent performance is key.

This level of detailed analysis helps users understand the true performance envelope of their batteries, much like an inspector evaluates a building's energy efficiency. It provides actionable data for optimizing battery usage and extending their practical lifespan. Data drives decisions.

Finally, the clear display and data output allow users to generate precise data for informed battery management. While not a literal report generation, the presented metrics provide all the necessary information to document and track battery performance over time. This supports systematic management.

This detailed data empowers users to make informed decisions about which batteries to keep, which to recondition, and which to safely dispose of. It transforms battery management from guesswork into a data-driven process, ensuring optimal resource utilization. Informed decisions are better.

The Inspector's Final Assessment

This 4-channel battery capacity tester is more than just a charging station; it is a diagnostic powerhouse. It empowers users to move beyond superficial battery checks, offering deep insights into cell health, capacity, and internal resistance. The ability to test multiple batteries simultaneously, coupled with multi-cycle capabilities, makes it an invaluable asset for anyone serious about battery management. Imagine the confidence of knowing the exact state of every cell in your inventory, preventing project delays due to unexpected battery failures, and optimizing the lifespan of your valuable power sources. This tool provides the clarity and control needed to build reliable battery packs and maintain peak performance for all your portable electronics. It's an investment in reliability and efficiency, ensuring that your power sources are always ready for the task at hand.
