DIY USB-C Male Connector Kit (10-Pack)

Precision Engineering for Custom Connectivity

The DIY USB-C Male Connector Kit is a specialized offering for electronics enthusiasts and professional technicians requiring bespoke cable solutions. This kit provides the fundamental components to construct custom USB Type-C male-to-male or male-to-other-connector cables, emphasizing the critical role of proper assembly in achieving reliable data transfer and power delivery. The visible components suggest a focus on functional utility over aesthetic flair, catering to those who prioritize specific cable lengths, repair capabilities, or unique wiring configurations.

Core Component Integrity: The Connector Head

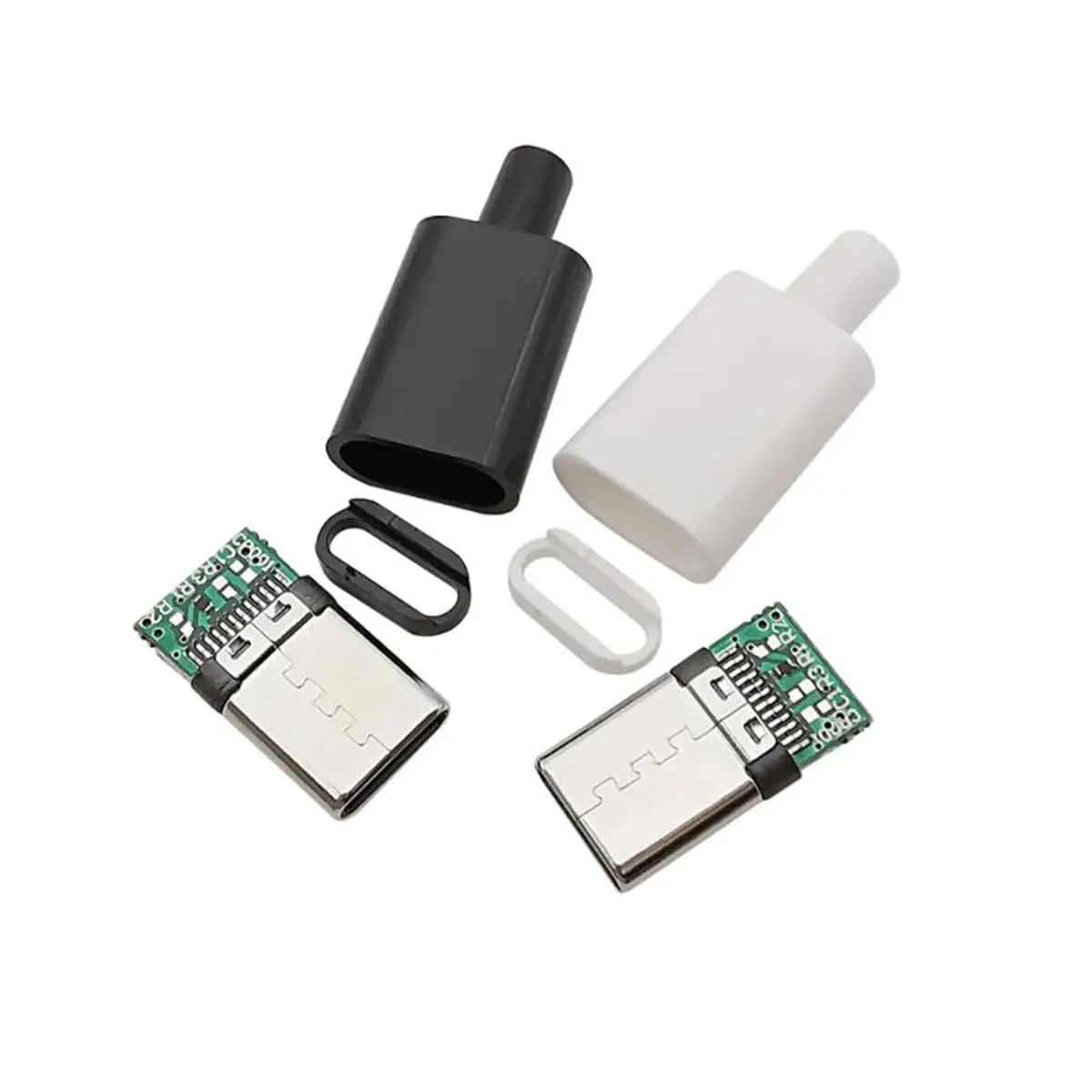

The kit's primary element is the USB-C male plug, featuring a metal housing and a visible printed circuit board (PCB) with solder pads. This design allows for direct soldering of individual wires, a method preferred for robust, custom connections. The metal housing provides essential shielding against electromagnetic interference, crucial for maintaining signal integrity in data transmission. It also offers mechanical protection for the delicate internal contacts. The exposed PCB clearly displays the multiple contact points necessary for USB-C's reversible design and advanced functionalities, including power delivery and various data modes. This is a critical interface.

Unlike many mass-produced, molded connectors, this DIY approach grants the assembler full control over the internal wiring. This level of access is invaluable for troubleshooting or for integrating specific wire types not typically found in off-the-shelf cables. The quality of these internal contacts directly influences the longevity and performance of the finished cable, making careful inspection prior to assembly a recommended practice.

Compared to pre-assembled cables, where internal connections are hidden, this kit offers transparency. Technicians can visually verify each solder joint, ensuring optimal electrical contact and minimizing potential points of failure. This transparency is a significant advantage for applications demanding high reliability or where custom pinouts are required.

Power Delivery Capabilities: The 3A Fast Charging Claim

The product title explicitly states "3A fast charging," indicating the connectors are designed to handle currents up to 3 Amperes. This capability is directly tied to the quality of the solder pads on the PCB and the subsequent wiring. Achieving consistent 3A charging requires not only a robust connector but also appropriate wire gauges within the cable itself. Inadequate wire thickness will lead to voltage drop and heat generation, compromising both charging speed and safety. Proper soldering technique is paramount.

For an electrician, the ability to sustain 3A without excessive heat is a key performance indicator. This necessitates clean, strong solder joints that minimize resistance. Cold solder joints or insufficient contact area can create hot spots, posing a significant fire risk, especially during prolonged charging cycles. The visible solder pads appear adequately sized for standard wire termination, but the ultimate current handling depends on the assembler's skill.

Standard USB-C cables often incorporate specific wire gauges (e.g., 22-28 AWG for power lines) to support various charging standards. When constructing a cable with these DIY connectors, selecting the correct wire gauge for the intended current load is non-negotiable. Overlooking this detail can result in a cable that fails to meet the advertised charging speed or, worse, becomes a safety hazard. This kit provides the opportunity to exceed generic cable specifications if high-quality wire is used.

Mechanical Resilience and Assembly: Housing and Strain Relief

Each connector kit includes a plastic outer shell, available in black or white, and an internal strain relief component. The outer shell provides insulation and a finished aesthetic, protecting the soldered connections from physical damage and environmental factors. The strain relief, typically a small plastic insert, is designed to clamp around the cable jacket, preventing tension on the soldered joints when the cable is pulled or bent. This is a crucial design element.

Without effective strain relief, repeated flexing of the cable near the connector can cause wire fatigue and eventual breakage at the solder points. This leads to intermittent connections or complete cable failure, a common issue with poorly constructed or low-quality cables. The inclusion of a dedicated strain relief mechanism in this kit is a positive indicator of thoughtful design, aiming to extend the lifespan of the custom-built cable.

Assembling these components requires precision. The plastic shell must fit snugly over the soldered PCB, and the strain relief must properly secure the cable. Any misalignment or loose fit can compromise the cable's durability and expose internal wiring. Compared to factory-molded connectors, which offer integrated and often superior strain relief, DIY solutions place the onus on the assembler to ensure these mechanical protections are correctly implemented. The small metal ring also aids in securing the assembly.

The DIY Advantage: Customization and Repair

This 10-piece kit is ideal for individuals or businesses needing custom-length USB-C cables. Standard cable lengths often do not suit specific installations, such as in industrial control panels, custom PC builds, or automotive applications. The ability to create a cable of exact dimensions reduces cable clutter and optimizes signal path length. This offers unparalleled flexibility.

Furthermore, these connectors are invaluable for repairing damaged USB-C cables. Instead of discarding an entire cable due to a faulty connector, a technician can cut off the damaged end and solder on a new one, extending the cable's useful life and reducing electronic waste. This repair capability is a significant cost-saving measure over time, especially for specialized or expensive cables. It promotes sustainability.

Unlike purchasing pre-made cables that might not meet specific quality or length requirements, this kit empowers the user to build a cable tailored to their exact needs. This can result in a higher-quality, more durable cable than many budget-friendly, mass-produced alternatives, provided the assembly is performed correctly. The cost-per-connector is also highly competitive, making bulk custom cable creation economical.

Electrical Safety Protocols for Assembly

Assembling these connectors demands adherence to strict electrical safety protocols. The small size of the solder pads requires a fine-tipped soldering iron and steady hands to prevent solder bridges between contacts, which can cause short circuits. Proper ventilation is also essential to dissipate solder fumes. Always work in a well-lit area.

After soldering, thorough inspection with a magnifying glass is critical to verify the integrity of each connection and ensure no stray strands of wire or solder are present. Continuity testing with a multimeter is a mandatory step to confirm correct wiring and absence of shorts before connecting the cable to any device. This prevents damage to connected electronics.

Compared to simple two-wire connections, USB-C involves numerous data and power lines, making the potential for wiring errors higher. A systematic approach to wiring, perhaps using a pinout diagram, is essential to ensure functionality and safety. Rushing the assembly process can lead to costly mistakes or, more critically, electrical hazards. Patience is key.

Imagine the satisfaction of creating a perfectly tailored USB-C cable, precisely the right length for your workstation, or repairing a favorite device's charging cable with confidence. This kit provides the means to achieve reliable, high-performance connectivity solutions, ensuring your devices charge efficiently and transfer data without interruption. The control over quality and customization offered by these components translates directly into a more robust and dependable electrical connection, safeguarding your valuable electronics and streamlining your setup. This is an investment in reliable power and data flow.
