What devices are compatible with this DC power splitter cable?

This splitter cable is compatible with devices that use a 5.5x2.1mm DC barrel connector and operate within 5V, 12V, or 24V, such as LED strip lights, CCTV cameras, routers, and various small electronics.

Can I use this splitter for both 12V and 24V devices simultaneously?

No, all devices connected to a single splitter cable must operate at the same voltage as your primary power adapter. Mixing voltages on one splitter will damage devices.

Does using a splitter cable cause a significant voltage drop?

For short runs and moderate loads, voltage drop is minimal, especially with the pure copper core. However, for longer cables or high-current applications with many devices, a slight voltage drop can occur. It's advisable to calculate total current draw.

Is this cable suitable for outdoor use with solar panels?

While the PVC shell offers durability, for direct outdoor exposure to harsh weather, additional weatherproofing and UV protection would be recommended. It is best suited for protected outdoor or indoor applications.

What is the maximum current capacity for these splitter cables?

The maximum current capacity depends on the specific gauge of the copper wire, which is not explicitly stated. However, for typical low-voltage applications like LED strips and CCTV cameras, they are generally sufficient. Always ensure the total current draw of all devices does not exceed the capacity of your main power supply.

DC Power Splitter Cable for 5.5x2.1mm Devices

Expert Analysis Overview

Streamlining DC Distribution for Solar Setups

The DC Power Splitter Cable is an essential utility component for solar energy enthusiasts and DIY power system builders seeking to expand their low-voltage DC distribution with efficiency and reliability. This accessory consolidates power delivery from a single source to multiple devices, simplifying complex wiring schemes. Its core function is to eliminate the need for numerous individual power adapters. This saves space and reduces clutter significantly. The design caters specifically to 5.5x2.1mm DC barrel connectors, a ubiquitous standard in many low-power electronics.

Unlike relying on multiple individual power bricks, this splitter consolidates power delivery. The visible construction suggests a straightforward, plug-and-play approach. Users can quickly integrate new devices into an existing power infrastructure. This reduces installation time. The various split options (2-way up to 8-way) provide flexibility for different project scales. These cables are critical for managing power efficiently in off-grid applications.

Compared to standard entry-level models, the emphasis on an all-copper wire core suggests a commitment to consistent power delivery. This is a vital aspect for maintaining system stability. The cable's robust construction implies a longer operational lifespan. This translates to better long-term value for the user.

Conductor Integrity and Durability

The product images highlight an "All Copper Wire Core" with a "Bold pure copper wire core + thickened flame-retardant PVC shell." This is a significant detail. Copper is an excellent electrical conductor. It minimizes resistance and power loss. A thickened, flame-retardant PVC shell provides crucial insulation and mechanical protection. This enhances safety and durability. Such construction is vital for outdoor or semi-exposed solar installations.

In real-world usage, this translates to more stable voltage delivery across all connected devices. Less power is wasted as heat. This directly impacts the efficiency of a solar power system. Every watt counts in off-grid scenarios. The robust insulation also protects against physical wear and environmental factors. This extends the cable's service life. It is a smart investment.

Many generic splitter cables often use copper-clad aluminum (CCA) which has higher resistance. The pure copper core featured here offers superior conductivity. This ensures devices receive consistent power. It also reduces the risk of overheating. This is a clear upgrade over cheaper alternatives.

Versatile Connectivity Options

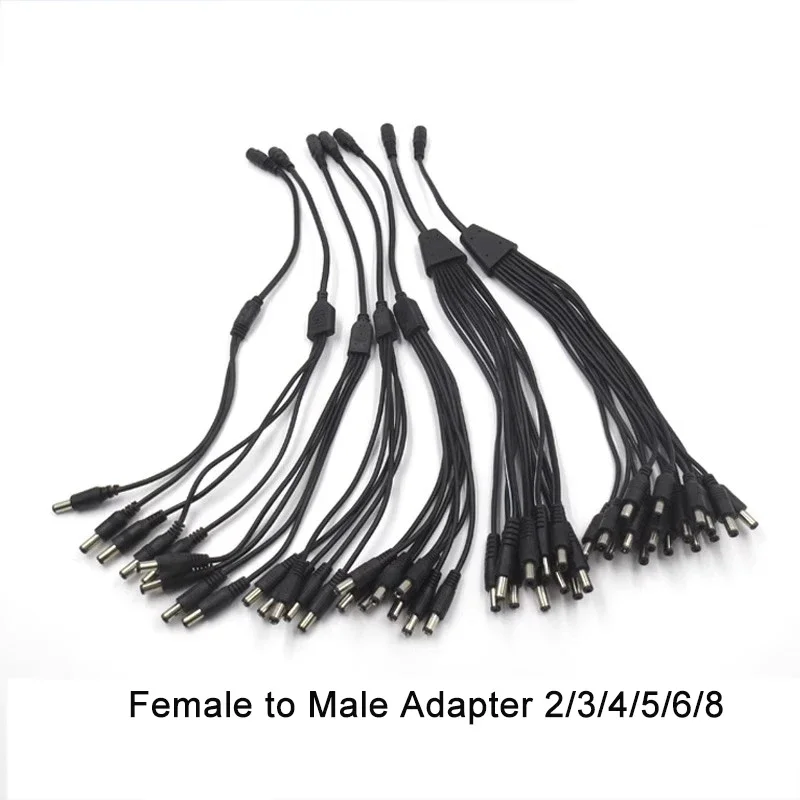

This splitter cable is available in configurations from 1-to-2 up to 1-to-8 ways. This broad range of options allows users to select the precise number of outputs needed for their specific application. The female input connects to a single power source. Multiple male outputs then distribute power. This simplifies power distribution considerably.

For a solar energy hobbyist, this versatility means adapting to various system requirements without purchasing multiple specialized cables. Whether powering a few LED lights or a network of CCTV cameras, a suitable splitter is available. This adaptability supports scalable system designs. It makes expansion straightforward. The right splitter simplifies wiring.

Traditional setups often require multiple power bricks or complex wiring harnesses. This product offers a streamlined alternative. It reduces the number of connections at the power source. This minimizes potential failure points. It also creates a much cleaner installation. This is a significant advantage for system management.

Compatibility and Application Scope

The specified 5.5x2.1mm DC connector size is a widely adopted standard for low-voltage DC devices. This includes LED strip lights, CCTV cameras, routers, and various small electronic gadgets. The cable supports 5V, 12V, and 24V systems. This broad voltage compatibility makes it suitable for a wide array of applications. It fits common solar battery systems.

For off-grid solar systems, verifying compatibility with existing solar charge controllers and battery banks is straightforward due to this standard. Users can confidently connect devices knowing the physical dimensions match. This prevents frustrating fitment issues. Proper voltage matching is essential for device longevity. The cable facilitates this. It is a universal solution.

Unlike proprietary connectors, the 5.5x2.1mm standard ensures broad interoperability. This reduces the need for specialized adapters. It simplifies component sourcing for DIY projects. This open standard is a boon for hobbyists. It promotes greater flexibility.

Efficiency Considerations for Solar Integration

When integrating these splitter cables into a solar power system, efficiency losses are a critical consideration. While the pure copper core minimizes resistive losses, any additional connection introduces some degree of inefficiency. For short cable runs and moderate current draws, these losses are negligible. However, for longer runs or high-current applications, voltage drop across the cable becomes more pronounced. Careful planning is required.

Users should calculate the total current draw of all connected devices. This ensures the power supply and the splitter cable can handle the load. Overloading can lead to excessive heat and potential system failure. Proper sizing prevents issues. It ensures system stability. This is paramount for reliable operation.

Compared to direct, individual connections, a splitter introduces a shared path. This means the total current is distributed. While convenient, this shared path necessitates a robust power source. Always ensure the primary power adapter can supply the combined requirements. This prevents undervoltage conditions. It protects connected devices.

Installation and Maintenance Simplicity

The plug-and-play nature of these cables makes installation incredibly simple. There are no complex wiring diagrams or specialized tools required. Users simply connect the female end to their power adapter and the male ends to their devices. This ease of use is a major benefit.

For maintenance, the modular design allows for easy troubleshooting. If a device fails, it can be disconnected without affecting others. This simplifies fault isolation. Regular visual inspection for wear and tear is recommended. This ensures continued safe operation. Simple checks maintain reliability.

Many DIY power solutions can become overly complicated. This splitter offers a refreshing simplicity. It reduces the learning curve for new users. This makes solar power more accessible. It empowers more individuals to build their own systems.

Imagine a solar-powered shed where a single 12V output from your battery bank efficiently powers multiple LED strip lights, a small fan, and a security camera, all neatly organized without a tangle of individual adapters. This splitter cable is the silent workhorse behind such a clean, functional setup, ensuring your off-grid projects remain robust and easy to manage, allowing you to focus on expanding your sustainable energy footprint with confidence.
