Compact Multi-Size Drill Guide for DIY Accuracy

Precision Drilling for the Budget-Conscious Craftsman

The Compact Multi-Size Drill Guide is a fundamental precision accessory designed for hobbyists and DIY enthusiasts seeking to elevate their drilling accuracy without a significant investment. This tool aims to provide a reliable solution for creating straight, accurately sized holes, addressing a common frustration in home improvement and woodworking projects. It is a straightforward answer to crooked holes. The guide serves as a practical upgrade from freehand drilling, offering consistent results for various applications.

Form and Function: Engineering for Everyday Use

The drill guide features a robust block-like design, visibly constructed from what appears to be a high-strength ABS composite material. This material choice implies a balance of durability and affordability, essential for a tool intended for regular workshop use. The exterior boasts a ribbed texture. This design element is not merely aesthetic; it offers a secure, non-slip grip, crucial when applying pressure during drilling operations. Such thoughtful ergonomics ensure the user maintains control, even with slightly oily or dusty hands, minimizing the risk of slippage and potential injury.

The integrated numbering system, clearly visible on the guide's surface, denotes the various drill bit diameters it accommodates, from 4mm to 10mm. This direct labeling simplifies bit selection, eliminating guesswork and speeding up project setup. Unlike generic, unmarked drill blocks, this guide provides immediate visual feedback, ensuring the correct bushing is utilized for the intended hole size every time. This straightforward approach reduces errors and improves workflow efficiency, a key consideration for any budget-minded project.

Furthermore, the guide incorporates an angled edge design, a subtle yet impactful feature. This allows for precise drilling into the edges of boards, a common requirement for dowel joinery and other furniture construction tasks. The ability to transition seamlessly from flat surface drilling to edge drilling expands the tool's utility, making it a versatile addition to any home workshop. This thoughtful inclusion means fewer specialized jigs are needed, saving both space and money.

Achieving Drilling Precision: The Guided Path

At the core of this tool's function are the integrated steel guide bushings, each precisely sized for 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, and 10mm drill bits. These metal sleeves are critical. They provide a rigid channel for the drill bit, preventing it from wandering or deflecting as it enters the material. This guided entry is paramount for achieving perfectly perpendicular holes, a task that proves challenging even for experienced users when drilling freehand.

The implication of these precision bushings is profound for project quality. Straight holes are foundational for strong, aesthetically pleasing joints, especially in woodworking applications like dowel joinery. By eliminating drill bit walk and ensuring consistent angles, the guide dramatically reduces splintering and tear-out around the hole's entry point. This leads to cleaner finishes and reduces the need for extensive rework, saving both time and material. The result is a professional-looking outcome.

Compared to the inherent inaccuracies of attempting freehand drilling, which often results in angled, off-center, or oversized holes, this guide offers a significant upgrade in precision. While not a substitute for a dedicated drill press in terms of ultimate rigidity and depth control, it provides a cost-effective alternative for occasional tasks. Investing in this guide means avoiding the frustration and material waste associated with imprecise drilling, a common pitfall for many DIYers. It keeps projects on track.

Versatility in Application: Beyond Flat Surfaces

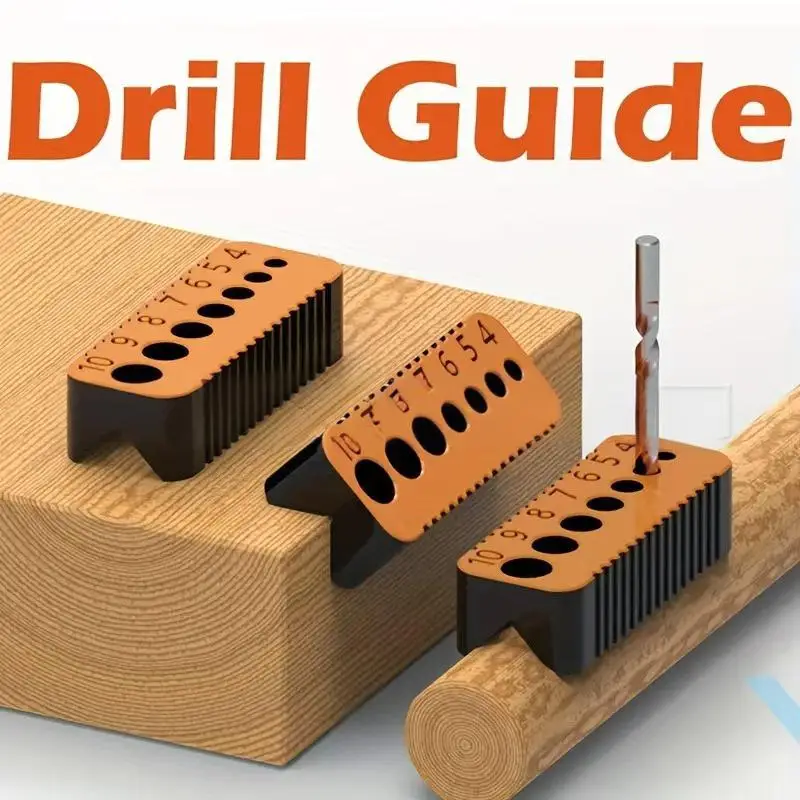

One of the standout features of this drill guide is its adaptability across different material forms. The images clearly depict its use not only on flat wooden planks but also on cylindrical stock, such as dowel rods. This flexibility is a considerable advantage for varied woodworking and repair tasks. This broad utility means fewer specialized tools are needed.

For instance, when working with round materials, maintaining a straight drill path is notoriously difficult due to the curved surface. The guide's stable base and precise bushings overcome this challenge, allowing users to drill accurately into dowels or other cylindrical components for joinery or mounting purposes. This capability extends the range of projects that can be tackled with confidence, from crafting custom furniture to repairing broken household items. It truly empowers the user.

Furthermore, the angled side of the guide, as previously noted, facilitates precise drilling along the edges of boards. This is invaluable for creating strong, hidden dowel joints, which are a cornerstone of robust woodworking construction. The ability to consistently place holes along an edge with accuracy ensures proper alignment and a secure fit for dowels. This feature alone makes the guide a versatile asset for anyone engaged in assembly work, reducing the margin for error in critical joint preparation.

Durability and Longevity: A Smart Investment

The visible construction from what appears to be a high-strength ABS composite, coupled with the integrated steel bushings, speaks to the guide's intended durability. ABS is known for its impact resistance and rigidity, making it suitable for the knocks and bumps of a workshop environment. This material choice is practical. The plastic body protects the precision metal inserts, ensuring their integrity over time.

These steel bushings are particularly important for the tool's longevity and performance. Unlike guides with plastic-only holes, the metal sleeves resist wear from the spinning drill bit, maintaining their precise diameter even after numerous uses. This protection extends the life of the guide itself and, crucially, helps to prolong the sharpness and accuracy of the drill bits. Worn bushings lead to inaccurate holes, but these steel inserts prevent that degradation.

For the budget-conscious user, investing in durable tools means fewer replacements and consistent performance over a longer period. This guide is designed to withstand the rigors of occasional to moderate use without rapidly deteriorating. It represents a 'good enough' replacement for more expensive, larger jigs, offering a functional lifespan that justifies its modest cost. This extends the life of your projects.

The Budget Fixer's Advantage: Value for Money

With a price point around $3.71 USD, this drill guide stands out as an exceptionally budget-friendly solution for improving drilling accuracy. This low cost significantly lowers the barrier to entry for anyone needing better results than freehand drilling can provide. It's an accessible upgrade. The value proposition here is not just about the initial purchase price, but the long-term savings it facilitates.

By preventing misdrilled holes, the guide helps users avoid wasting expensive materials, a common occurrence when precision is lacking. This translates directly into cost savings on lumber, hardware, and even replacement drill bits that might otherwise be damaged by inaccurate guiding. The cost-per-use of such an inexpensive yet effective tool becomes negligible over time. This tool keeps projects running cheaply.

Furthermore, for those who cannot justify the expense or space requirement of a full-sized drill press, this compact guide offers a practical, 'good enough' alternative. It provides a significant portion of the precision benefits at a fraction of the cost. It effectively extends the life of existing hand drills by enabling them to perform tasks with greater accuracy, transforming a basic tool into a more capable one. This is smart money management.

Operational Simplicity: Getting Started Quickly

The design of this drill guide prioritizes ease of use, making it approachable for even novice users. There are no complex adjustments, calibration procedures, or intricate setups required. Simplicity is key. Users simply select the appropriate numbered hole for their drill bit, position the guide on the workpiece, and begin drilling.

This straightforward operation means less time spent on preparation and more time dedicated to the actual project. The intuitive nature of the tool reduces the learning curve, allowing users to achieve accurate results almost immediately. Unlike more elaborate jigs that can intimidate new users with multiple settings and clamps, this guide offers instant functionality. It gets the job done.

While lacking an integrated depth stop, this omission contributes to its simplicity and compact size. Users can easily manage drill depth by marking their drill bits with tape or a marker, a common and effective technique. This design choice keeps the tool basic and functional, perfectly aligning with its budget-friendly ethos. It's a tool that works.

Understanding Limitations: Strategic Trade-offs

While highly effective for its intended purpose, this drill guide does present a few inherent limitations, which are important to acknowledge. The primary trade-off is the absence of an integrated depth stop. This means users must manually monitor and control drilling depth, either by marking the drill bit or using a separate depth gauge. For simple tasks, this is manageable.

Additionally, while it significantly improves accuracy over freehand drilling, it cannot replicate the absolute precision and rigidity of a dedicated drill press for industrial-grade or highly specialized fine woodworking applications. For projects demanding sub-millimeter accuracy across many identical pieces, a drill press remains the superior choice. This guide is for general use.

Another consideration is the need for manual clamping or firm hand-holding to stabilize the guide during use. While its ribbed exterior aids grip, securing both the workpiece and the guide with clamps is recommended for optimal stability and accuracy, especially with larger drill bits or harder materials. This is a minor inconvenience. Its fixed range of 7 drill bit sizes also means it won't accommodate every possible diameter, requiring users to ensure their needs fall within the specified 4-10mm range.

Empowering Your Projects with Confidence

This Compact Multi-Size Drill Guide represents a smart, economical investment for anyone looking to improve the quality of their drilling tasks. It bridges the gap between imprecise freehand work and the expense of larger machinery, providing a practical solution for common DIY and woodworking challenges. The tool's robust construction and thoughtful design ensure reliable performance, helping to extend the life of your projects by ensuring accurate, strong joints. Imagine the satisfaction of consistently achieving perfectly straight holes in your next furniture assembly or home repair project, free from the frustration of crooked, misaligned work. This guide empowers you to tackle tasks with greater confidence and precision, making your efforts more efficient and your finished products more professional. It is a small tool with a big impact on project quality, allowing you to focus on the creative aspects of your work rather than struggling with basic drilling accuracy. This guide is a fundamental step towards better craftsmanship, ensuring every hole you drill contributes positively to the overall integrity and appearance of your creations.
