Closed-End Wire Connectors (CE-1, CE-2, CE-5) - 1000 Pack

Precision Wire Termination for Secure Connections

The Closed-End Wire Connector assortment, featuring CE-1, CE-2, and CE-5 types in a bulk 1000-piece package, represents a fundamental component for reliable electrical installations. This collection of connectors is engineered to provide a secure, insulated splice for multiple conductors, ensuring both mechanical integrity and electrical safety. The design prioritizes ease of use with standard crimping tools, making it a practical choice for both professional electricians and dedicated DIY enthusiasts tackling various wiring projects.

The Engineering Behind a Secure Splice

These closed-end connectors are characterized by their robust construction, typically comprising a clear or translucent insulating shell and an internal metal crimp barrel. The insulating shell, visible in the product imagery, allows for visual inspection of the wire insertion, a critical feature for verifying proper conductor seating before crimping. This transparency aids in preventing common wiring errors such as insufficient wire penetration or stray strands.

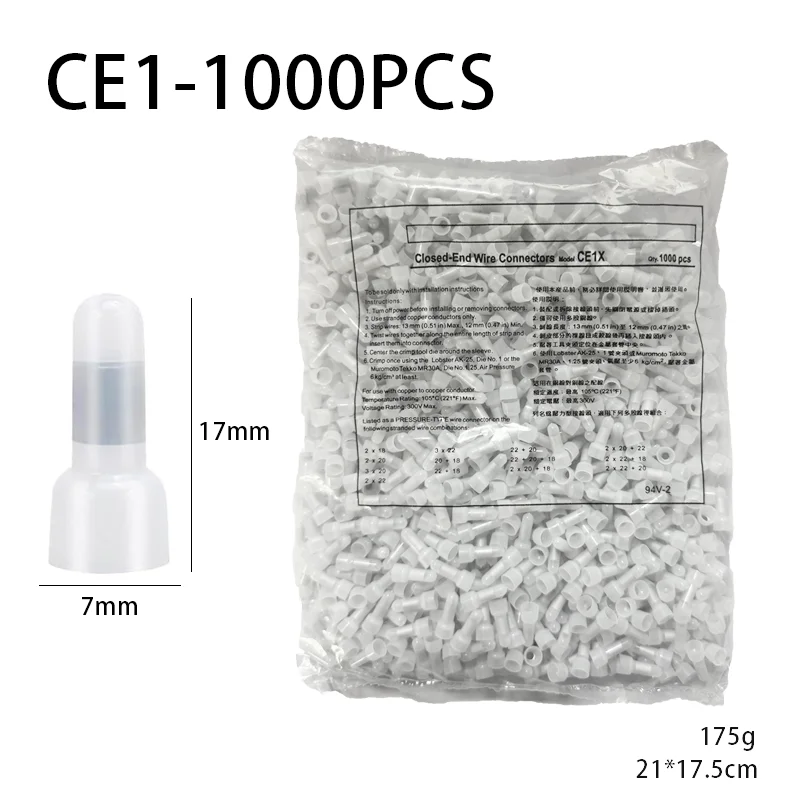

The internal metal barrel, though not explicitly detailed in material, is designed to deform under pressure from a crimping tool, creating a gas-tight connection around the stripped wire ends. This gas-tight seal is paramount in preventing oxidation and ensuring long-term electrical conductivity. Without such a seal, moisture and air can degrade the connection, leading to increased resistance, heat buildup, and potential failure. The physical dimensions provided for each connector type—CE-1 at 17mm length and 7mm diameter, CE-2 at 18mm length and 8mm diameter, and CE-5 at 24mm length and 12mm diameter—indicate a graduated sizing system tailored to accommodate different wire gauges effectively. Each size is distinct. This ensures a proper fit for the specified wire ranges, which is crucial for maintaining the integrity of the connection.

Compared to twist-on wire nuts, closed-end crimp connectors offer a more permanent and vibration-resistant connection. Twist-on connectors rely on spring tension and friction, which can loosen over time, especially in environments subject to movement or temperature fluctuations. Crimp connectors, once properly applied, form a cold weld between the wire and the connector, providing superior mechanical strength and electrical continuity. This makes them a preferred choice in applications where reliability is non-negotiable, such as in control panels or automotive wiring.

Gauge Compatibility and Current Handling

Accurate wire gauge compatibility is non-negotiable for electrical safety. The product clearly delineates the supported wire gauges for each connector type: CE-1 handles AWG 22-16 (0.5-1.5mm²), CE-2 accommodates AWG 16-14 (1.5-2.5mm²), and CE-5 is designed for AWG 12-10 (4-6mm²). These specifications are critical for preventing overheating and ensuring the safe operation of electrical circuits. Using an undersized connector for a given wire gauge can lead to inadequate contact area, increased resistance, and excessive heat generation, posing a significant fire risk. Conversely, an oversized connector may not provide a sufficiently tight crimp, resulting in a loose connection.

Each connector type also specifies a maximum current rating: 19A for CE-1, 27A for CE-2, and 48A for CE-5. These ratings are directly correlated with the wire gauge capacity and the connector's ability to dissipate heat. Adhering to these current limits is essential to prevent thermal runaway, where the connector heats up due to resistive losses, further increasing resistance and heat in a dangerous cycle. Proper selection based on the circuit's anticipated load is a fundamental principle of electrical design. Overloading a connector is a serious hazard.

Unlike generic, unrated connectors, these clearly labeled specifications provide electricians with the necessary data to make informed decisions, ensuring compliance with electrical codes and safety standards. This transparency in specifications is a hallmark of professional-grade electrical components, allowing for precise application matching. The clear markings on the packaging and the visual differentiation in size further aid in correct selection, reducing the likelihood of misapplication in a busy work environment.

Application and Installation Integrity

The installation process for these closed-end connectors is straightforward, yet demands precision. Wires must be stripped to the correct length, inserted fully into the connector, and then crimped using an appropriate tool. The visual guide provided illustrates a four-step process: insert wires, position the connector in the crimping tool, crimp, and verify. This simplicity belies the importance of using a dedicated crimping tool designed for closed-end connectors. Pliers or improper tools will not create the necessary deformation for a secure, gas-tight connection, leading to unreliable splices that can fail under load or vibration.

The ability to accommodate both hard (solid) and soft (stranded) cables, as indicated, enhances the versatility of these connectors. This broad compatibility means electricians do not need to stock separate connector types for different conductor constructions, streamlining inventory and simplifying field work. The robust nature of the crimped connection ensures that even in applications where wires are subject to movement or strain, the electrical integrity remains uncompromised. This is a significant advantage over less secure methods that can degrade over time due to mechanical stress.

In contrast to soldering, which requires heat and can create brittle joints susceptible to fatigue, crimping provides a mechanically strong and electrically stable connection without altering the metallurgical properties of the wire. The cold-weld created by a proper crimp is often more reliable in high-vibration environments than a soldered joint. This makes these connectors ideal for a wide range of applications, from household wiring to industrial control systems and automotive electrical work, where long-term reliability is paramount. The bulk packaging of 1000 pieces per type also offers significant value for high-volume users, ensuring a ready supply for ongoing projects.

Durability and Material Considerations

The visible material of the insulating shell appears to be a durable, clear polymer, likely nylon or polypropylene, chosen for its electrical insulation properties and mechanical strength. This material resists common environmental factors such as moisture, dust, and minor abrasions, which are prevalent in many electrical installation environments. The clarity of the material is a functional design choice, enabling visual confirmation of proper wire insertion and crimp quality. This visual feedback is invaluable for quality control during installation, allowing immediate correction of errors before the circuit is energized.

While specific material certifications (e.g., UL, CE) are not explicitly stated in the provided images, the design and common application of such connectors imply adherence to industry standards for insulation and fire resistance. Reputable electrical components are typically manufactured from self-extinguishing or flame-retardant materials to minimize fire hazards in the event of an electrical fault. The robust nature of the plastic shell also provides a degree of strain relief, protecting the crimped connection from direct mechanical stress that could otherwise lead to premature failure.

Compared to connectors with opaque insulation, the translucent design offers a distinct advantage in terms of inspection and troubleshooting. An electrician can quickly assess the quality of a connection without needing to remove the insulation, saving time and reducing the risk of damaging the splice. This feature contributes to overall system reliability and simplifies maintenance tasks. The bulk quantity ensures that a consistent, high-quality connector is always on hand, reducing the temptation to use substandard alternatives when supplies run low.

Long-Term Value and Operational Efficiency

Investing in a bulk supply of these closed-end wire connectors translates into significant long-term value and enhanced operational efficiency for any electrical professional or serious hobbyist. The 1000-piece bags for each size (CE-1, CE-2, CE-5) ensure that the right connector is always available, eliminating costly delays associated with running out of specific components. This proactive stocking strategy minimizes downtime on projects and allows for uninterrupted workflow, directly impacting project timelines and labor costs.

The consistent quality implied by the clear specifications and standard design reduces the incidence of faulty connections, which can be time-consuming and expensive to diagnose and repair. A reliable connection from the outset means fewer call-backs and a higher standard of work. The cost-per-unit in a bulk package is inherently lower than purchasing smaller quantities, providing a tangible return on investment over the lifespan of multiple projects. This economic advantage, combined with the safety and reliability benefits, makes these connectors a smart procurement choice.

Unlike relying on a mixed bag of unknown quality connectors, standardizing on a known type with clear specifications ensures consistency across all installations. This consistency simplifies training for new technicians and establishes a baseline for quality control. The ability to quickly identify and select the correct connector based on visible size and stated gauge compatibility further streamlines the assembly process, contributing to overall project efficiency. This is not merely a purchase of components; it is an investment in reliable infrastructure.

Imagine completing complex wiring projects with confidence, knowing that every splice is secure, insulated, and rated for the intended load. Visualize a workspace where the correct connector is always within reach, eliminating frustrating searches and ensuring seamless progress. These closed-end wire connectors provide the foundational reliability necessary for safe and efficient electrical work, allowing you to focus on the intricate details of your circuit design rather than worrying about the integrity of your connections. This is the peace of mind that comes with using dependable components.
