CKCTINNER 4mm Banana Plug Audio Connectors (10-Pack)

Precision Interconnects: An Electrical Engineer's Perspective

The CKCTINNER 4mm Banana Plug Audio Connectors are essential termination components designed for reliable electrical connections in audio systems and test equipment. These plugs offer a practical solution for securing speaker wires, multimeter leads, and power supply outputs, mitigating the common issues of frayed wire ends and intermittent signal paths. Their design prioritizes both ease of installation and consistent performance, a critical factor in maintaining signal integrity across various applications. This set provides a versatile solution for both new installations and the repair of existing setups.

The Anatomy of a Connection: Material Science and Design

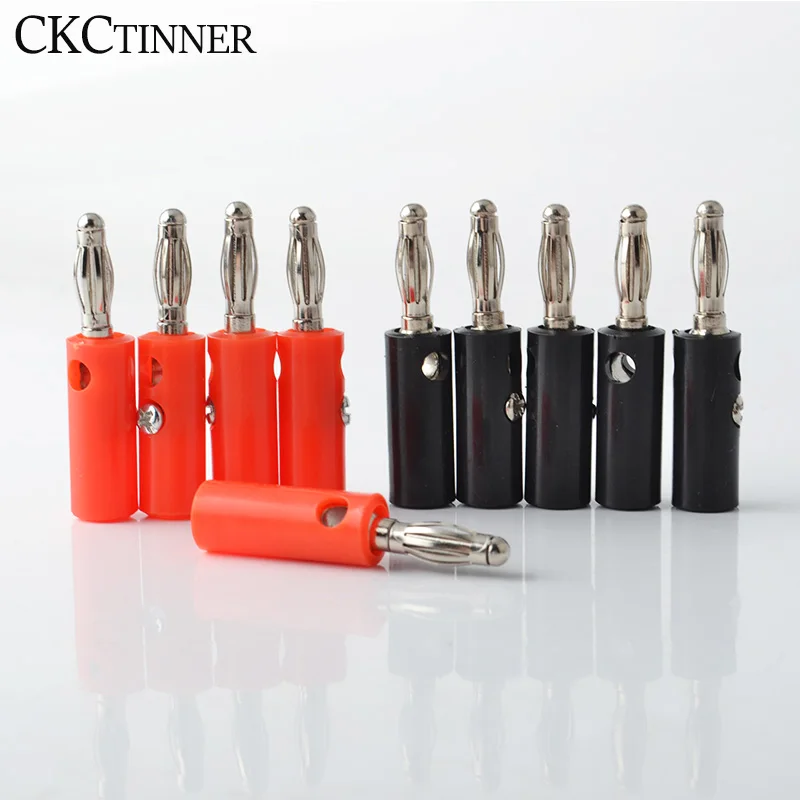

The visible construction of these banana plugs indicates a combination of durable materials engineered for electrical conductivity and mechanical stability. The primary conductive element, the 4mm banana pin, appears to be constructed from a nickel-plated brass alloy. This material choice is standard for its balance of conductivity, corrosion resistance, and mechanical strength, ensuring a robust connection over time. The plating prevents oxidation, which can degrade signal quality.

Unlike many budget connectors that utilize thin, stamped metal, the solid appearance of the pin suggests a more substantial component. This contributes directly to the plug's ability to withstand repeated insertions and withdrawals without deforming. A solid pin maintains consistent contact pressure within the jack, reducing the likelihood of signal dropouts or increased resistance. Such a design is crucial for applications where connection reliability is paramount, such as in laboratory testing or high-fidelity audio systems.

The insulating body of the banana plug is fabricated from a rigid plastic, available in both red and black. These color options are not merely aesthetic; they serve as a crucial visual aid for polarity identification in electrical circuits. This simple yet effective coding prevents accidental reverse polarity connections, which can damage sensitive audio equipment or power supplies. The housing material provides adequate insulation, protecting against accidental short circuits when plugs are closely spaced.

Installation Mechanics: Securing the Signal Path

These banana plugs employ a screw-type termination mechanism for wire attachment. This method is preferred by many technicians over soldering for its simplicity and field-repairability. The screw compresses the wire against the conductive core of the plug, establishing a mechanical and electrical connection. The compatibility with wire diameters ranging from 2mm to 5mm allows for a broad range of speaker cables or test leads to be accommodated.

Proper wire termination is critical for optimal performance. The screw mechanism, when correctly tightened, creates a low-resistance contact point. This minimizes power loss and signal degradation, which are common issues with poorly terminated connections. A secure connection also prevents the wire from pulling out under tension, a frequent failure point in frequently moved setups.

Compared to crimp-style connectors, screw terminals offer greater flexibility. Users can easily re-terminate wires if needed, without requiring specialized crimping tools. This makes them ideal for hobbyists, educators, and field technicians who need adaptable solutions. The absence of a soldering requirement also lowers the barrier to entry for users without soldering experience.

Signal Integrity and Longevity Considerations

The primary function of any connector is to transmit electrical signals with minimal loss or distortion. The nickel-plated brass construction of the banana pin contributes to excellent conductivity. Nickel plating, while not as conductive as gold, offers superior hardness and wear resistance, making it suitable for connectors that undergo frequent mating cycles. This ensures the contact surfaces remain clean and conductive over an extended operational lifespan.

Long-term reliability is a key concern for any electrical component. The robust construction of these plugs suggests a good service life, particularly when installed correctly. The screw-down mechanism, if periodically checked for tightness, maintains a consistent connection. Loose connections can lead to increased resistance, heat generation, and intermittent signal, all of which degrade system performance and can pose safety risks.

Unlike spring-loaded or solder-only alternatives, the screw-type connection offers a balance of security and user-friendliness. While soldering generally provides the most permanent and lowest-resistance connection, it requires specific tools and skills. The screw terminal provides a reliable alternative for many applications, especially where quick changes or repairs are necessary. The visible quality of the plastic housing also implies resistance to common workshop chemicals and physical impacts.

Versatility in Application

These banana plugs are highly versatile, finding utility across various electrical and electronic domains. In audio setups, they simplify speaker connections, allowing for quick, secure attachment and detachment from amplifiers and speakers. This is particularly beneficial for home theater systems, professional audio installations, and car audio where frequent reconfigurations might occur. The clear color coding ensures correct phase alignment for speakers.

For laboratory and educational environments, these plugs are indispensable. They are commonly used to terminate leads for power supplies, multimeters, oscilloscopes, and function generators. The ability to quickly connect and disconnect test leads speeds up experimental setups and troubleshooting. Their compatibility with standard 4mm banana jacks makes them universally applicable in most educational and professional test equipment.

Beyond traditional uses, these connectors can be integrated into custom projects requiring reliable, modular power or signal connections. Robotics, DIY electronics, and prototyping benefit from the ease of use and reusability of these plugs. Their robust design makes them suitable for environments where components might experience moderate mechanical stress.

Value Proposition and Economic Impact

At the listed price point, these banana plugs offer significant value, especially when considering the cost of repairing or replacing damaged equipment due to poor connections. Investing in reliable connectors like these can prevent costly downtime and component failures. The ability to properly terminate wires extends the life of cables and connected devices, offering a strong return on investment.

Compared to integrated, non-replaceable cable ends, these modular plugs allow for easy repair of damaged cables. Instead of discarding an entire speaker cable due to a faulty connector, only the connector itself needs replacement. This reduces waste and saves money in the long run. The bulk pack of 10 pieces further enhances the cost-effectiveness for users with multiple connection needs.

This product is an upgrade from simply twisting bare wires or using flimsy spring clips. Bare wire connections are prone to fraying, short circuits, and oxidation, leading to signal degradation. Spring clips often provide weak contact pressure, resulting in intermittent connections. These banana plugs provide a professional, secure, and durable alternative, ensuring a clean and consistent signal path. Imagine the clarity of sound from your audio system, free from crackles and dropouts, or the precision of your measurements in a lab setting, all facilitated by robust, low-resistance connections. This small investment ensures the integrity of your entire electrical chain, providing peace of mind and superior performance for years to come.
