Automotive Refrigerant Charging Hose

Precision in Refrigerant Management

The Automotive Refrigerant Charging Hose is a crucial diagnostic and service component designed for efficient and reliable air conditioning system maintenance. This compact, purpose-built hose facilitates the precise transfer of refrigerants and other essential fluids within automotive AC circuits. Its design prioritizes both accessibility and operational integrity, making it an indispensable asset for technicians and dedicated DIY enthusiasts alike. The hose simplifies complex AC tasks.

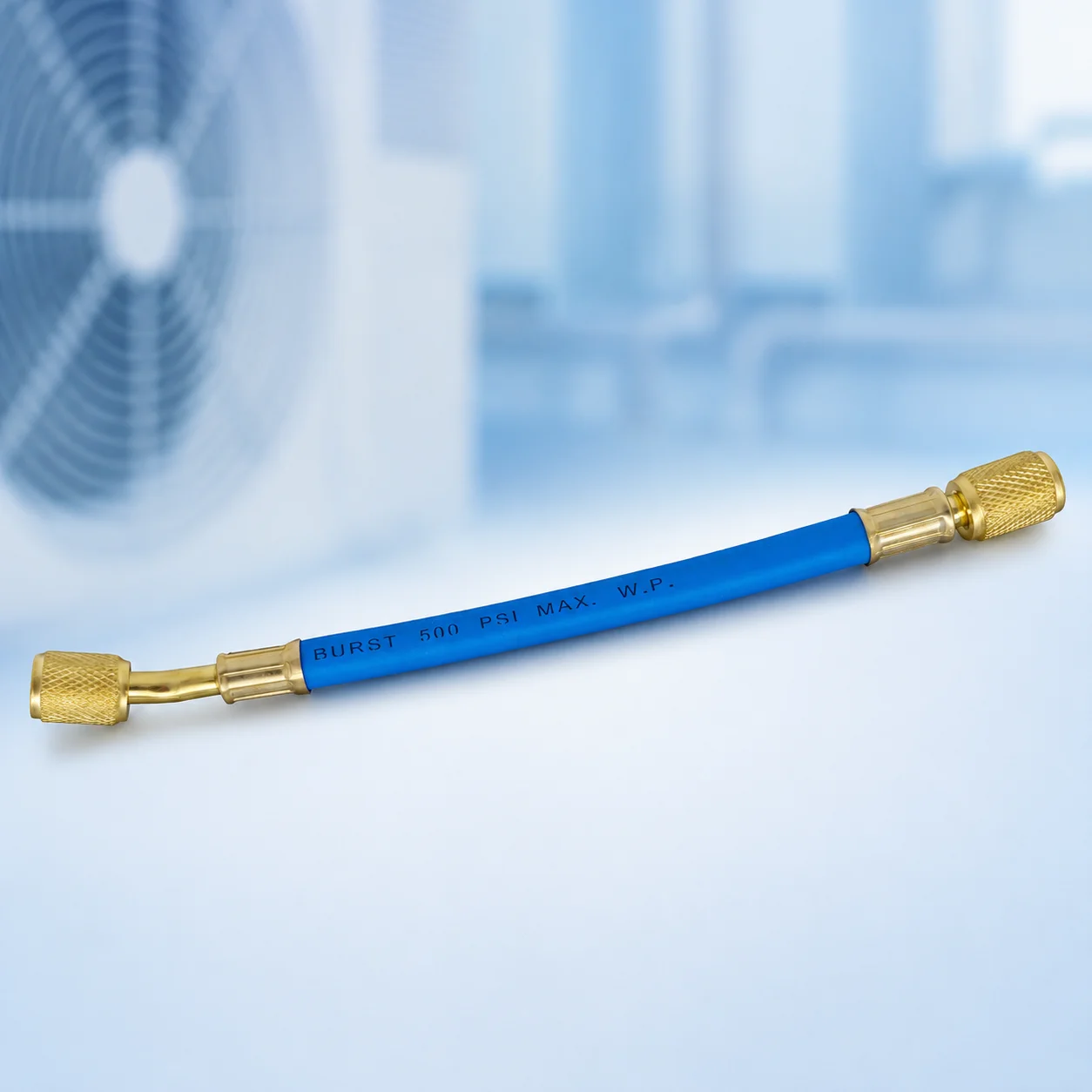

Visible attributes include a vibrant blue hose material, robust brass fittings, and a total length of 21.5 centimeters, or approximately 8.46 inches. One end features a 90-degree elbow connector equipped with an ejector pin, while the opposite end terminates in a straight connector. Both fittings adhere to the 1/4 inch SAE imperial standard, a widely recognized specification in the automotive and HVAC industries. This ensures broad compatibility.

This specific configuration offers significant operational advantages. The short length is particularly beneficial for navigating the often-cramped confines of modern engine bays, allowing for connections in tight spaces where longer, more unwieldy hoses would be impractical. It minimizes the volume of refrigerant trapped within the hose itself, reducing waste during charging or recovery procedures. The 1/4 inch SAE standard guarantees a direct fit with most common automotive AC service ports, eliminating the need for cumbersome adapters that can introduce potential leak points. This hose connects quickly and securely, enhancing workflow efficiency.

Compared to standard, longer charging hoses, this shorter variant offers superior maneuverability and reduces the risk of kinking or entanglement. Unlike generic, unrated hoses that might compromise safety or accuracy, this unit's specified dimensions and fitting types provide a clear benchmark for reliable performance. Older AC systems, in particular, often benefit from such a tailored tool, as it allows for precise interventions without requiring a complete overhaul of existing service equipment. This is a targeted solution.

The Engineering of Endurance

The material composition of this refrigerant charging hose is engineered for both durability and performance under pressure. It features a multi-layer braided construction, a design choice that significantly enhances its structural integrity and resistance to internal pressures. This robust layering is crucial for maintaining the hose's form and function over extended periods of use, especially in demanding automotive environments. It resists wear and tear effectively.

Key specifications highlight its impressive pressure capabilities: a working pressure of 500 PSI and a burst pressure of 2500 PSI. These ratings indicate a substantial margin of safety, allowing the hose to reliably handle the high pressures typically encountered in automotive air conditioning systems without risk of failure. Furthermore, the material exhibits low temperature resistance, ensuring the hose remains flexible and functional even in colder climates, preventing brittleness that could lead to cracking or leaks. The brass fittings, known for their corrosion resistance and strength, complement the hose's durability, providing secure and lasting connections.

Such high-pressure ratings and material resilience directly translate into a longer service life and enhanced operational safety. Users can perform refrigerant charging, recovery, or diagnostic tasks with confidence, knowing the equipment is designed to withstand the stresses involved. The multi-layer braiding prevents expansion under pressure, maintaining consistent flow rates and reducing the likelihood of hose rupture. This robust construction safeguards against unexpected failures, protecting both the user and the vehicle's AC system. It is a reliable component.

In contrast to single-layer or lower-grade rubber hoses, which are prone to premature wear, kinking, and pressure degradation, this multi-layer braided design offers a significant upgrade in reliability. Many generic hoses lack specified pressure ratings, leaving users vulnerable to potential hazards. This hose's engineering ensures it surpasses the performance of many entry-level alternatives, providing a more secure and efficient tool for critical AC service. This is a durable choice.

Versatility in Automotive Service

This short refrigerant charging hose is not limited to a singular function; its design supports a broad spectrum of automotive AC system maintenance tasks. Its utility extends beyond simple refrigerant top-offs to include more complex procedures such as automotive fluoride application, oil injection, leak detection, and general liquid addition. The inclusion of a thimble fluorinated tube further optimizes its performance for these specialized applications, ensuring chemical compatibility and efficient transfer. It handles many tasks.

For the automotive technician or serious DIYer, this versatility means a single tool can address multiple aspects of AC system health. Whether it is adding UV dye for leak detection, introducing compressor oil, or precisely charging the system with refrigerant, this hose provides the necessary conduit. The thimble fluorinated tube minimizes material absorption and chemical reactions, ensuring the integrity of the fluids being transferred and preventing contamination. This capability streamlines the diagnostic and repair process, making AC service more efficient.

Unlike dedicated single-purpose tools that require constant swapping or a larger inventory, this hose serves as a multi-functional component within an AC service kit. Less flexible or chemically incompatible hoses might restrict the types of fluids that can be safely transferred, forcing users to purchase specialized equipment for each task. This hose's broad application capability reduces tool clutter and offers a more integrated solution for comprehensive AC system care. It simplifies the toolkit.

Ergonomics and Connection Integrity

The design of the hose's connectors plays a pivotal role in its ergonomic efficiency and the integrity of its connections. The presence of an elbow fitting on one end, coupled with an ejector pin, is a deliberate design choice aimed at improving user experience in challenging environments. The opposing straight connector offers a more traditional attachment point. Both are 1/4 imperial specification.

This elbow fitting is particularly advantageous for accessing AC service ports located in awkward or tightly packed areas of an engine bay. The 90-degree angle allows for a cleaner, less strained connection, reducing the physical stress on the hose and the port itself. The integrated ejector pin ensures that the Schrader valve within the service port is reliably depressed upon connection, facilitating immediate and uninterrupted flow of refrigerant or vacuum. This eliminates the need for external valve depressors or struggling with misaligned connections. A secure seal is paramount.

Compared to hoses with two straight connectors, the elbow fitting significantly enhances accessibility and reduces the bending radius required for connection, thereby extending the hose's lifespan by minimizing stress points. Less secure designs might rely on less precise valve depression mechanisms, leading to partial flow or even refrigerant leakage. This hose's thoughtful connector design ensures a robust and leak-free interface, crucial for accurate AC system servicing. It offers superior access.

Value Proposition for the Restoration Enthusiast

For those dedicated to automotive restoration, this refrigerant charging hose represents a significant value proposition, particularly in avoiding the expense of new, often complex, AC system components. The ability to precisely service and maintain existing AC units with a reliable tool can extend the life of vintage systems, preserving originality and functionality. This saves considerable capital. It is an investment in longevity.

This tool empowers enthusiasts to perform routine maintenance and diagnostics themselves, circumventing the high labor costs associated with professional AC service. By enabling tasks like targeted refrigerant top-offs or oil injections, it helps prevent minor issues from escalating into major, costly failures that might necessitate a full system replacement. It allows for proactive care, keeping classic vehicles on the road with comfortable, functioning air conditioning. This avoids buying a new expensive unit, a common challenge for maintaining older vehicles.

Unlike the prohibitive costs of replacing an entire AC system, especially for older or rare vehicles where parts can be scarce and expensive, this hose offers a cost-effective alternative. It facilitates the repair and rejuvenation of existing components, a core tenet of restoration work. The investment in such a durable, specialized tool quickly pays for itself through avoided professional service fees and the extended operational life of the vehicle's original AC system. This is a smart financial decision.

Furthermore, the quality of internals matters. This hose, with its multi-layer braiding and high-pressure ratings, can be seen as an upgrade to the internal components of a service kit. It ensures that the critical interface between the service equipment and the vehicle's AC system is robust and reliable, preventing failures that could damage other tools or the vehicle itself. This is about upgrading your capability.

Maintaining Peak Performance

Proper care and handling of specialized tools like this refrigerant charging hose are essential for ensuring its longevity and consistent performance. Regular visual inspections are critical. Users should examine the blue hose for any signs of cracking, fraying, or hardening, which could indicate material fatigue or exposure to damaging chemicals. The brass fittings should be checked for corrosion, stripped threads, or deformation, as these can compromise the integrity of the seal. Any visible damage warrants immediate replacement of the hose to prevent leaks or system failures. Cleanliness is also key.

After each use, especially when working with different refrigerants or oils, the hose should be purged and cleaned according to industry best practices. This prevents cross-contamination between systems and ensures that residual chemicals do not degrade the internal lining of the hose. Storing the hose in a clean, dry environment, away from direct sunlight and extreme temperatures, will help preserve its material properties and prevent premature aging. Coiling it loosely, rather than sharply bending it, avoids stress points. Proper storage extends life.

Ignoring these maintenance steps can lead to a shortened lifespan for the hose, inaccurate readings during service, and potential safety hazards due to refrigerant leaks. A compromised hose can also introduce contaminants into a vehicle's AC system, leading to expensive repairs. Unlike tools that can tolerate rough handling, precision AC service equipment requires a more considered approach to maintenance. This attention to detail ensures the hose remains a reliable asset for years to come.

Imagine the satisfaction of confidently diagnosing and recharging an automotive AC system, knowing your tools are precise, durable, and up to the task. Envision the cool, comfortable cabin of a classic car, its air conditioning purring thanks to meticulous maintenance performed with the right equipment. This hose empowers you to tackle AC challenges efficiently, preserving your vehicle's comfort and value for every journey ahead. It brings peace of mind.
