ANENG ST170 Digital Clamp Meter

Precision in Portable Diagnostics: The ANENG ST170

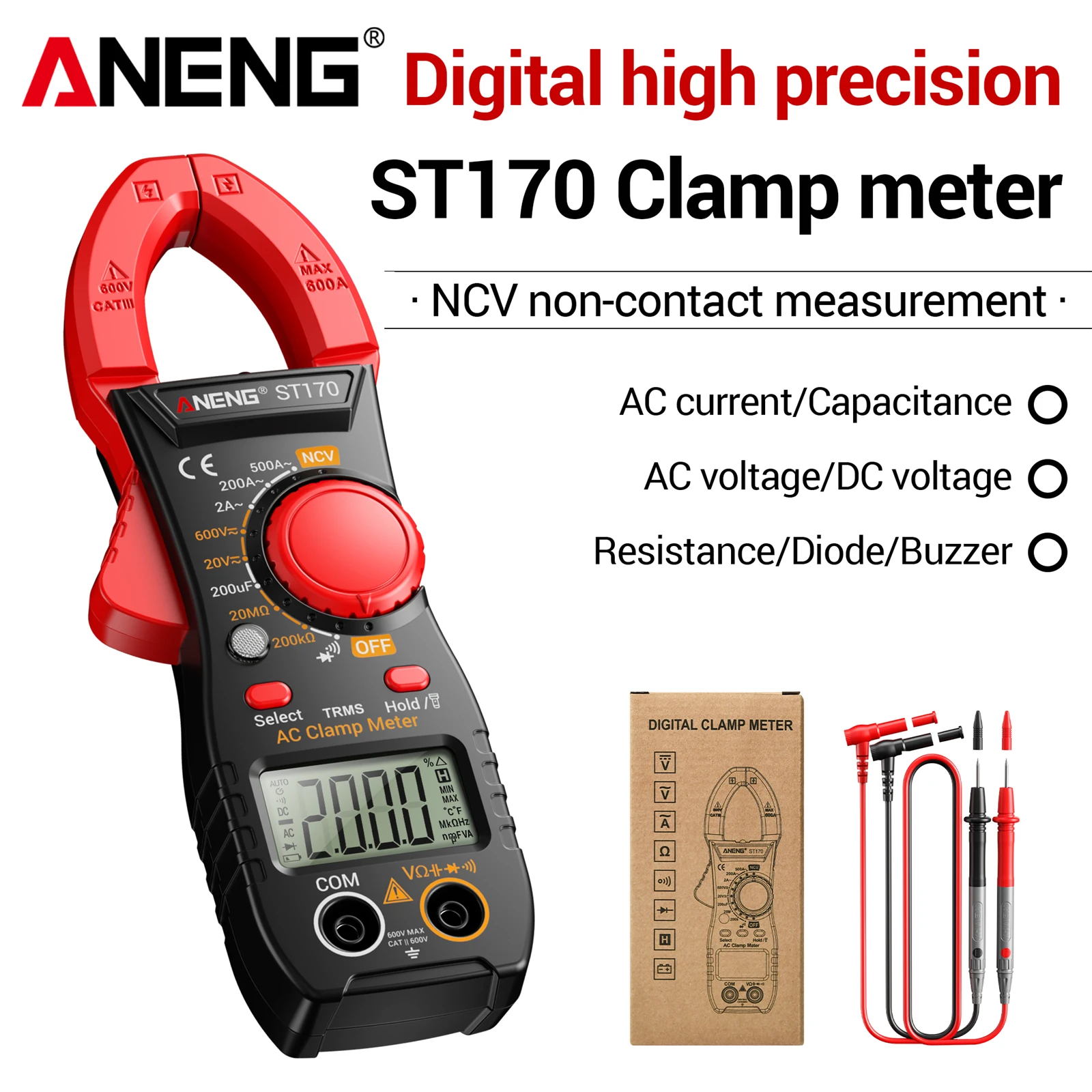

The ANENG ST170 Clamp Meter is a foundational diagnostic instrument engineered for electrical technicians and DIY enthusiasts requiring reliable current and voltage measurements. This device offers a practical blend of essential functions within a compact, ergonomic form factor. Its design prioritizes ease of use and safety for routine electrical checks. The ST170 provides a clear digital readout, enhancing measurement confidence.

Core Measurement Capabilities

This clamp meter is specified with a 2000-count display, a common resolution for entry-level to mid-range digital multimeters. A 2000-count display means the meter can show up to 1999 units before autoranging to the next scale. This resolution is sufficient for most residential and light commercial electrical work, allowing for precise readings in common voltage and current ranges. For instance, when measuring 120V AC, it can display 120.0V, offering a tenth of a volt precision. This level of detail is often adequate.

Compared to older analog meters, the digital 2000-count display significantly reduces interpretation errors. Analog meters rely on needle alignment, which introduces parallax error and subjective reading. The ST170's digital display eliminates this ambiguity, providing a direct numerical value. This directness streamlines diagnostic processes, particularly for those new to electrical measurements. It simplifies data acquisition.

Current Sensing and Safety

The ANENG ST170 features a non-contact AC current measurement capability up to 500A. This function is critical for safety, as it allows current to be measured without breaking the circuit or making direct contact with live conductors. The clamp jaw simply encircles a single conductor, sensing the magnetic field generated by the current flow. This method significantly reduces the risk of electrical shock or short circuits during diagnostics. It is a fundamental safety feature.

The 30mm large jaw design accommodates a wide range of wire gauges, from standard household wiring to thicker industrial cables. This versatility ensures the meter is applicable across various electrical environments, from appliance repair to panel diagnostics. A larger jaw also makes clamping easier in confined spaces. This design choice enhances practical utility.

Compared to traditional in-line ammeters, which require the circuit to be opened and the meter inserted in series, the clamp meter offers a non-invasive and much safer alternative. This non-contact method is particularly beneficial when working with high currents where direct contact would be hazardous. It minimizes downtime during troubleshooting. This approach saves time and reduces risk.

Voltage and Resistance Diagnostics

Beyond current, the ST170 handles AC/DC voltage measurements up to 600V. This range covers standard residential and commercial power systems, making it suitable for checking outlets, circuit breakers, and appliance power supplies. The auto-ranging feature simplifies operation, as the user does not need to manually select the correct voltage range. The meter automatically adjusts for optimal resolution. This automation prevents potential damage from incorrect range selection.

Resistance measurement is also included, allowing for continuity checks and component testing. This function is invaluable for diagnosing open circuits, short circuits, or verifying the integrity of resistors and wiring. A low resistance reading typically indicates continuity, while an open circuit shows infinite resistance. This capability aids in pinpointing faults quickly. It helps isolate problems.

Many basic multimeters require manual range selection for resistance, which can be cumbersome. The ST170's auto-ranging extends to resistance, further simplifying its use. This feature is particularly helpful for users who may not be familiar with the expected resistance values of various components. It reduces operational complexity. This makes the tool more accessible.

Capacitance and Diode Testing

The inclusion of capacitance measurement allows for the testing of capacitors, which are common components in power supplies, motors, and electronic circuits. This function helps identify faulty capacitors that might be causing circuit malfunctions. A capacitor's value can drift over time, and this meter provides a means to verify its integrity. This extends the meter's diagnostic utility. It broadens its application scope.

Diode testing is another valuable feature, enabling technicians to check the functionality of diodes, which are essential for rectifying AC to DC current. A healthy diode will show a specific voltage drop in one direction and an open circuit in the reverse direction. This test helps confirm diode health. It ensures proper circuit operation.

These specialized functions elevate the ST170 beyond a basic voltage and current tester. They provide a more comprehensive diagnostic toolkit for troubleshooting a wider array of electrical and electronic issues. For hobbyists building circuits or technicians repairing appliances, these capabilities are highly beneficial. They offer enhanced diagnostic depth.

User Interface and Ergonomics

The ANENG ST170 features an HD backlight display, ensuring readability in various lighting conditions, including dimly lit electrical panels or outdoor environments. The clear digital readout minimizes eye strain during prolonged use. The display is crisp. The rotary dial for function selection is intuitive, allowing for quick transitions between measurement modes. This design choice prioritizes user experience.

Ergonomically, the meter is designed for single-handed operation, with the clamp trigger positioned for easy access. The compact size and lightweight construction make it comfortable to hold and transport. The included test leads are robust, with standard banana plug connections, ensuring compatibility and secure attachment. This attention to physical design enhances field usability. It promotes efficient workflow.

Compared to bulkier, more complex industrial meters, the ST170 offers a streamlined interface that is less intimidating for casual users. Its straightforward controls mean less time spent consulting a manual and more time performing actual measurements. This simplicity is a significant advantage for quick checks. It reduces the learning curve.

Durability and Portability

The visible materials imply a robust plastic casing, designed to withstand the rigors of typical field use. While not explicitly rated for drop protection, the construction appears solid enough for general electrical work. The compact form factor makes it highly portable, easily fitting into a tool bag or even a large pocket. This portability ensures the meter is always on hand when needed. It is ready for immediate deployment.

For professionals who frequently move between job sites, the ST170's lightweight design is a distinct advantage. It reduces the overall burden of carrying multiple tools. Its small footprint also means it takes up minimal space in a crowded toolbox. This design facilitates mobility. It supports agile work practices.

Unlike some larger, more specialized clamp meters that can be cumbersome to carry, the ST170 strikes a balance between functionality and portability. This makes it an ideal secondary meter for quick checks or a primary meter for those with less demanding measurement requirements. Its size is a practical benefit. It offers convenience without sacrificing core functions.

Value Proposition and Application

Considering its price point, the ANENG ST170 offers significant value for its array of features. It provides essential measurement capabilities for AC current, AC/DC voltage, resistance, capacitance, and diode testing, all within a user-friendly package. This makes it an excellent choice for homeowners, automotive technicians, and entry-level electricians. It is a cost-effective solution.

If you are frequently troubleshooting household appliances, checking car electrical systems, or performing basic circuit diagnostics, this meter provides the necessary tools without overcomplicating the process. Its non-contact current measurement is a standout safety feature for these applications. The auto-ranging function further simplifies operation. It empowers confident diagnostics.

Imagine confidently diagnosing a faulty circuit breaker or a malfunctioning appliance, knowing you have a reliable and safe tool at your disposal. The ANENG ST170 streamlines these tasks, allowing for quick identification of electrical issues and enabling timely repairs. This meter becomes an indispensable part of your toolkit, enhancing your ability to maintain and troubleshoot electrical systems effectively and safely. It provides peace of mind. The clear display and intuitive controls mean less time fumbling with settings and more time getting the job done. This efficiency translates directly into saved time and reduced frustration, making every electrical task more manageable. It is a smart investment for practical applications.
