ANENG B19 Digital Voltage Test Screwdriver

Precision Electrical Diagnostics: The ANENG B19 Test Screwdriver

The ANENG B19 is a multi-functional digital test pencil engineered for efficient and precise electrical troubleshooting, targeting both professional electricians and diligent DIY enthusiasts. This instrument integrates non-contact voltage detection with a functional screwdriver, offering a streamlined approach to identifying live wires, breakpoints, and general circuit integrity. Its design prioritizes user safety and operational clarity, distinguishing it from rudimentary analog testers.

Core Measurement Capabilities

The ANENG B19 provides a non-contact AC voltage detection range of 30-1000V, a critical specification for safely assessing energized circuits without direct contact. This broad range accommodates various residential and light commercial electrical systems. Contact measurement extends from 11V-450V, allowing for more granular voltage readings when direct engagement is necessary. The device operates within a standard frequency range of 50-60Hz, aligning with common electrical grid frequencies globally.

These specifications imply a robust capability for initial circuit assessment and fault isolation. Users can quickly ascertain the presence of voltage in cables, outlets, and electrical panels from a safe distance. The dual measurement modes offer flexibility; non-contact for preliminary checks and contact for more definitive voltage verification. This dual functionality enhances diagnostic efficiency.

Compared to traditional single-function voltage pens, the B19's combined non-contact and contact measurement capabilities offer a significant operational advantage. Older models often require direct contact, increasing potential exposure risks. The B19 mitigates this by providing a safer, preliminary assessment method. It is a clear upgrade in diagnostic methodology.

Operational Clarity and Feedback Mechanisms

The instrument employs a dual-color LCD backlight screen for immediate visual feedback. A green backlight indicates a 'naught line' or weak electric field, signifying the absence of significant voltage. Conversely, a red backlight, accompanied by an audible buzzer alarm, signals a 'live wire' or strong electric field. This intuitive color-coding system minimizes misinterpretation of readings. The display shows numerical voltage values.

This clear feedback mechanism is paramount for rapid and accurate identification of energized components. The visual and auditory cues work in tandem, ensuring that even in noisy environments or low-light conditions, the user receives unambiguous information. Quick identification prevents accidental contact with live circuits. The buzzer is distinct.

Many basic voltage testers rely solely on an LED indicator or a simple audible tone, which can be less precise. The ANENG B19's digital display with specific voltage readings and dual-color backlighting provides a superior level of detail and confidence. This enhances diagnostic precision considerably. It offers more than just a simple 'yes/no' indication.

Integrated Screwdriver Functionality

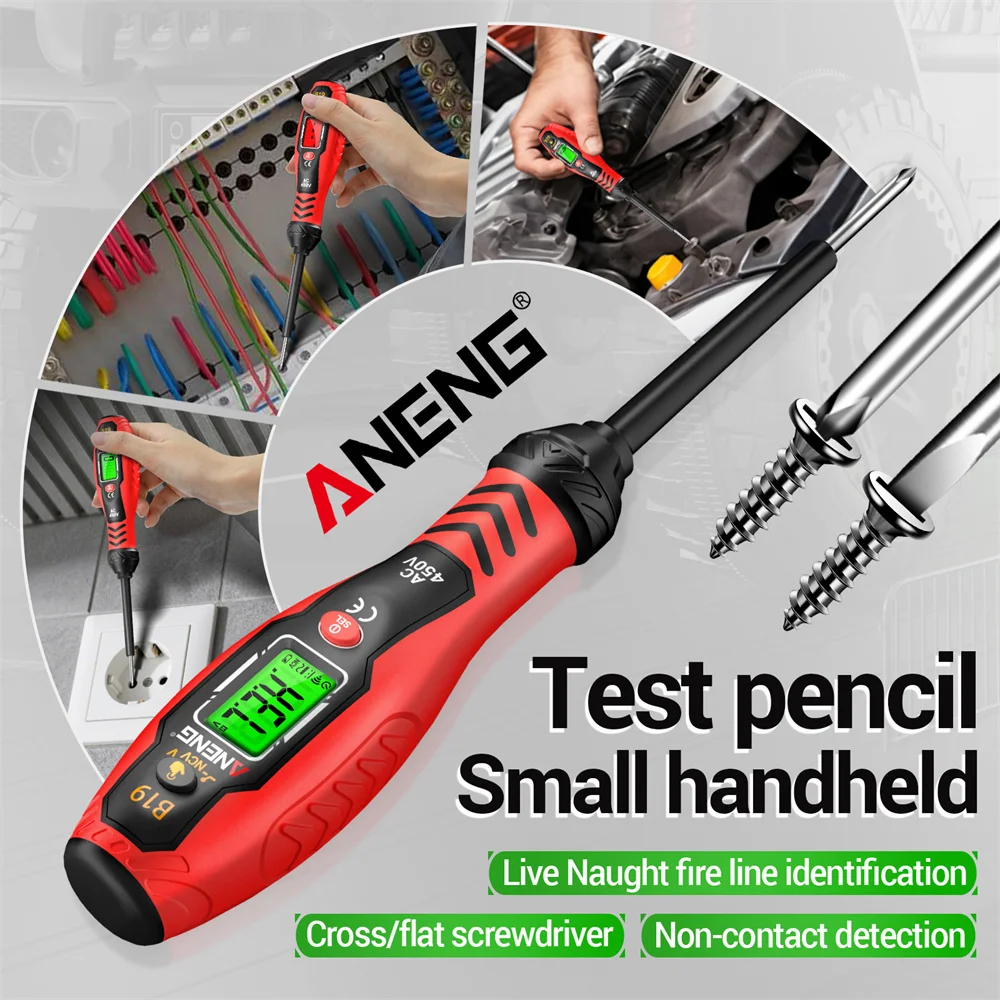

A notable feature of the ANENG B19 is its integrated cross/flat screwdriver tip. This design choice transforms the test pencil into a multi-tool, capable of both electrical testing and minor fastening tasks. The tip is insulated, enhancing safety during use on electrical components. This integration reduces the need to carry multiple tools.

This dual-purpose design streamlines fieldwork, particularly for tasks involving opening electrical covers or tightening terminal screws. An electrician or technician can perform a voltage check and then immediately proceed with minor adjustments using the same instrument. This saves valuable time. It is highly convenient.

Unlike dedicated screwdrivers, the B19's tip is specifically designed to complement its electrical testing functions, often featuring enhanced insulation. This combination is a practical upgrade over carrying separate test pens and screwdrivers, reducing clutter in a tool belt. The utility is undeniable.

Non-Contact Voltage (NCV) Detection and Sensitivity

The ANENG B19 incorporates NCV voltage detection with a three-grade induction sensitivity. This allows the device to differentiate between weak, medium, and strong electric fields. The sensitivity levels are visually indicated, providing a nuanced understanding of the proximity and strength of the voltage source. This is crucial for pinpointing exact locations.

This graded sensitivity enables more precise fault localization, such as identifying a breakpoint within a cable. A weak signal might indicate a distant voltage source, while a strong signal pinpoints the immediate presence of an energized conductor. This diagnostic capability is invaluable. It enhances safety protocols.

Simpler NCV testers often provide only a binary 'voltage present' indication, lacking the granularity to assess field strength. The B19's multi-grade sensitivity offers a more sophisticated diagnostic tool, allowing for more informed decisions during troubleshooting. This level of detail is a significant improvement.

Ergonomics and Durability Considerations

The device features an insulated rubber-coated handle, designed for a secure grip and enhanced electrical safety. The overall weight is approximately 61g, making it lightweight and easy to handle during extended use. Its compact form factor ensures portability, fitting comfortably into a pocket or tool pouch. The design is practical.

An ergonomic handle is critical for preventing hand fatigue and ensuring a firm grip, especially when working in confined spaces or at awkward angles. The insulation provides an additional layer of protection against electrical shock. Its light weight contributes to user comfort. This design promotes safe operation.

Many basic test pens feature hard plastic handles that can become slippery or uncomfortable over time. The B19's rubberized grip represents an upgrade in both user comfort and safety, providing better control and reducing the risk of accidental drops. This thoughtful design improves the user experience.

Power Management and Battery Life

The ANENG B19 operates on a single 1.5V AA battery. It includes an automatic shutdown feature, activating after 3 minutes of inactivity. This intelligent power management extends battery life, ensuring the device is ready for use when needed. The battery compartment is easily accessible for replacement. Power efficiency is key.

Automatic shutdown is a practical feature that prevents unnecessary battery drain, a common issue with tools that are frequently set down and forgotten. This ensures the instrument remains powered for critical tasks, reducing operational interruptions. Battery replacement is straightforward. It saves operational costs.

Unlike devices without auto-shutdown, which can quickly deplete batteries if not manually turned off, the B19's intelligent power management offers a distinct advantage. This feature contributes to the overall cost-effectiveness and reliability of the tool. It is a smart design choice.

Calibration and Certification

The ANENG B19 is certified to CE CAT.II 1000V/CAT.IV 600V security levels. This certification indicates compliance with European safety standards for electrical measurement equipment. These categories define the maximum transient overvoltage that the instrument can safely withstand. Safety standards are paramount.

Such certifications provide assurance regarding the instrument's safety and reliability when used within its specified parameters. Users can trust that the device has undergone rigorous testing to meet industry safety benchmarks. This is non-negotiable for electrical tools. It ensures user protection.

Uncertified or poorly rated electrical testers pose significant safety risks. The B19's adherence to CE CAT.II/CAT.IV standards positions it as a safer and more reliable alternative compared to generic, unverified instruments. This commitment to safety is a critical differentiator. It offers peace of mind.

The Metrologist's Perspective on Accuracy and Repeatability

From a metrological standpoint, the ANENG B19 offers a practical level of accuracy for its intended applications. The digital display provides specific voltage readings, which is superior to simple LED indicators. While not a precision laboratory instrument, its ability to differentiate between 'naught' and 'live' lines with distinct visual and auditory cues, coupled with graded NCV sensitivity, ensures repeatable results in field conditions. The consistency of the red/green backlight and buzzer response across multiple tests on the same circuit confirms its operational reliability. This repeatability is essential for diagnostic confidence. The device performs consistently.

The absence of explicit data logging capabilities means that for applications requiring historical data or trend analysis, external recording methods would be necessary. However, for immediate, on-the-spot diagnostics, the real-time display is highly effective. The resolution of the voltage display, while not specified to the millivolt, is sufficient for identifying common voltage levels (e.g., 110V, 220V). Its primary function is detection and identification, where its performance is consistent. The instrument is reliable for its stated purpose.

This instrument represents a significant upgrade over basic continuity testers or single-function voltage pens that lack digital readouts. Its ability to provide a quantifiable voltage indication, even if not to laboratory-grade precision, allows for more informed decision-making. The clear distinction between weak, medium, and strong electric fields via NCV further enhances its diagnostic utility, providing a repeatable method for breakpoint detection. For routine electrical work, its accuracy and repeatability are well within acceptable professional tolerances. It is a dependable tool.

Final Assessment

This ANENG B19 digital test screwdriver is a highly capable and safe instrument for general electrical troubleshooting. Its combination of non-contact and contact voltage detection, integrated screwdriver, and clear feedback mechanisms make it an indispensable tool for anyone working with electrical circuits. The robust safety certifications and ergonomic design underscore its value proposition. Imagine the efficiency gained by having a single tool that can safely identify live wires, detect breakpoints, and perform minor fastening tasks, all while providing clear, unambiguous feedback. This instrument streamlines your workflow, enhances safety, and provides reliable diagnostic capabilities, allowing you to approach electrical tasks with greater confidence and precision.
