8-Channel 18650 Battery Analyzer with Auto Charge/Discharge

Precision Power Management for the Modern Workshop

The 8-Channel 18650 Battery Analyzer is a specialized electronic load tester designed for comprehensive evaluation of 18650 lithium-ion cells, aimed squarely at professionals and serious hobbyists who demand meticulous battery health insights. This module goes beyond simple charging, offering automated charge and discharge cycles, capacity measurement, and internal resistance testing. For anyone relying on 18650 cells in power tool battery packs, custom electronics projects, or high-drain devices, understanding the true state of each cell is paramount. This analyzer provides the data needed to make informed decisions about battery use, maintenance, and pack construction.

Unpacking the Core Functionality

The device presents a robust circuit board layout, clearly indicating eight individual battery slots. Each slot is designed to accommodate a single 18650 cell, allowing for simultaneous testing across all channels. This multi-channel capability significantly accelerates the diagnostic process for larger collections of batteries.

Simultaneous testing means less downtime. Users can process a batch of cells efficiently, rather than cycling through them one by one. This efficiency is a direct upgrade from single-channel testers, where extensive battery collections could take days to fully assess.

Compared to basic chargers that merely indicate charge status, this unit provides a deep dive into cell performance. It offers a clear advantage for those managing numerous cells, such as in rebuilding cordless tool battery packs where cell matching is critical for longevity and performance.

Automated Charge and Discharge Cycles

A standout feature is the automatic charging and discharging capability. This isn't just a charger; it's a full-cycle battery conditioner. The module can execute a complete charge-discharge-charge cycle, or custom sequences, to accurately determine a battery's true capacity.

This automation removes the guesswork and manual intervention often required with less sophisticated setups. A user can initiate a test and allow the module to run its course, freeing up time for other tasks. This hands-off operation streamlines workflow in a busy shop.

Many entry-level testers require separate charging and discharging units, demanding constant supervision. This integrated approach simplifies the process, making it a more practical solution for consistent, repeatable battery analysis without constant human oversight.

Internal Resistance Measurement

Internal resistance is a critical indicator of a battery's health and ability to deliver current. This analyzer includes an internal resistance tester. High internal resistance signifies an aging or damaged cell, incapable of sustaining high loads.

Understanding a cell's internal resistance helps prevent power tool performance degradation. A cell with high internal resistance will heat up excessively and deliver less power under load, even if its voltage appears normal. This data is invaluable for predicting cell failure.

Generic battery testers often omit internal resistance measurement, leaving users blind to a key health metric. This specialized module provides a more complete picture, distinguishing truly healthy cells from those nearing the end of their useful life, a distinction vital for high-performance applications.

Capacity Verification

The primary goal for many users is accurate capacity measurement. The module precisely measures the actual discharge capacity of each 18650 cell. This real-world data is crucial for matching cells in multi-cell battery packs.

Knowing the true capacity ensures balanced battery packs. When building or repairing a power tool battery, using cells with mismatched capacities leads to premature pack failure and reduced run time. This tester eliminates that risk.

Unlike manufacturers' stated capacities, which can be optimistic, this device provides empirical data. It offers a tangible advantage over simply trusting labels, especially when dealing with salvaged or unbranded cells, ensuring every cell contributes optimally to the pack's overall performance.

User Interface and Display Clarity

The central display unit provides real-time feedback for each channel. Visible readouts include voltage, current, accumulated capacity, and total program running time. This immediate feedback is essential for monitoring test progress.

Clear, segment-based displays allow for quick assessment of each cell's status. The ability to see multiple parameters simultaneously on a single screen enhances the user's ability to diagnose issues rapidly. This is particularly useful when troubleshooting a batch of cells.

Simpler testers often cycle through parameters or offer only a single channel view. This multi-channel, multi-parameter display provides a comprehensive overview at a glance, minimizing the need for constant button presses or channel switching.

Cooling System Integration

Two active cooling fans are prominently featured on the board. Battery charging and discharging, especially at higher currents, generate heat. Effective thermal management is vital for accurate testing and the longevity of both the batteries and the tester itself.

Adequate cooling prevents thermal runaway in batteries and ensures consistent test results. Overheating can damage cells and skew capacity readings. The integrated fans actively dissipate heat, maintaining optimal operating temperatures.

Passive cooling solutions found in many simpler devices can struggle under continuous load. The active fan system here signifies a design focused on sustained, reliable performance, particularly important for extended test cycles or when processing many cells consecutively.

Power Input Flexibility

The module utilizes a Type-C 5V power supply interface, a common and convenient standard. Additionally, 5V power supply solder joints are present, offering flexibility for integration into custom setups or for users who prefer a more permanent power connection.

Standardized power input simplifies setup. Users can leverage existing USB-C chargers or power banks, making the unit highly adaptable to different workshop environments. This common interface reduces the need for proprietary power adapters.

Unlike devices requiring specific, often hard-to-find power bricks, the Type-C input ensures broad compatibility. The inclusion of solder points further caters to advanced users who might integrate this module into a larger, custom-built battery management system, offering a level of adaptability beyond typical off-the-shelf units.

Durability and Build Quality

The visible circuit board appears well-constructed with neatly arranged components. The battery holders are designed for secure contact. This robust assembly suggests the unit is built for repeated use in a workshop environment.

Reliable construction ensures consistent performance over time. Tools used frequently, especially in a professional setting, must withstand regular handling and operation. The evident build quality points to a device that will endure.

Flimsier, less expensive battery testers often suffer from poor contact points or fragile circuitry. This module's design, with its solid PCB and integrated cooling, positions it as a more durable alternative, capable of providing accurate data for years.

Operational Simplicity

Despite its advanced capabilities, the interface includes clearly labeled buttons for functions like 'Switch key', 'Language switching', 'Switch channel display', 'Test internal resistance', 'Charge Function', and 'Test capacity'. This intuitive layout suggests ease of operation.

Direct access to key functions reduces the learning curve. Users can quickly navigate between different test modes without complex menu structures. This straightforward approach benefits both seasoned technicians and those new to battery analysis.

Some multi-function devices bury essential features deep within menus. This tester's dedicated buttons for core functions streamline the user experience, making critical operations immediately accessible and reducing potential frustration during repetitive tasks.

Value Proposition for the Carpenter

For carpenters, reliable cordless tools are essential. This battery analyzer directly supports the longevity and performance of those tools. By testing and matching 18650 cells, users can build or rejuvenate battery packs that deliver consistent power and extended run times.

Imagine a workshop where every cordless drill, impact driver, and saw operates at peak efficiency. This tester helps achieve that by ensuring only healthy cells are used in critical applications. No more unexpected power drops mid-cut or during a crucial fastening operation.

Consider the frustration of a power tool dying prematurely on a job site. This device provides the capability to prevent such occurrences by proactively identifying weak cells. It's an investment that pays dividends in uninterrupted work and extended tool life, ultimately saving time and money on replacement battery packs.

Short Description

Master 18650 battery health with this 8-channel analyzer. Auto charge/discharge, capacity, and internal resistance testing for peak performance.

Components

Eight Independent Channels - Simultaneously test and analyze up to eight 18650 batteries, maximizing efficiency.

Automated Charge/Discharge Cycles - Perform full battery conditioning and accurate capacity determination with minimal user intervention.

Real-time Internal Resistance Tester - Identify weak or degraded cells instantly, crucial for optimal battery pack performance.

Integrated Cooling Fans - Maintain stable operating temperatures for precise results and extended device lifespan.

Clear Digital Display - Monitor voltage, current, capacity, and run time for all channels at a glance.

Universal Type-C Power Input - Conveniently power the unit with standard 5V USB-C chargers.

Intuitive Button Interface - Easily switch between test modes and view different parameters.

Pros

Significantly improves battery pack reliability by identifying and matching cells.

Automated testing reduces manual effort and increases diagnostic throughput.

Provides critical internal resistance data, often overlooked by simpler testers.

Active cooling ensures stable and accurate measurements during prolonged use.

Multi-channel design allows for efficient processing of numerous batteries.

Clear display offers comprehensive real-time insights into battery status.

Cons

Requires an external 5V Type-C power supply, which is not included.

Primarily designed for 18650 cells, limiting use with other battery formats.

The learning curve for advanced settings might require reviewing the manual.

Verdict

Buy this if: You regularly work with 18650 batteries for power tools, custom electronics, or pack rebuilding and need precise, automated data on cell capacity and internal resistance to ensure optimal performance and longevity.

Skip this if: You only need a basic charger for occasional 18650 use and do not require detailed diagnostic information or multi-cell testing capabilities.

The Bottom Line: This analyzer is an indispensable tool for serious battery management, offering unparalleled insight into 18650 cell health and performance.

Warnings

Always ensure correct battery polarity when inserting cells to prevent damage to the module or batteries.

Use only appropriate 5V Type-C power adapters to avoid overvoltage or undervoltage issues.

Do not operate the module in environments with excessive moisture or extreme temperatures.

FAQs

Question: Can this tester work with battery sizes other than 18650?

Answer: This module is specifically designed for 18650 lithium-ion cells due to its physical holders and internal programming.

Question: Is a power adapter included with the module?

Answer: No, the module requires an external 5V Type-C power supply, which must be purchased separately.

Question: How do I interpret the internal resistance readings?

Answer: Lower internal resistance generally indicates a healthier battery capable of higher current delivery; higher resistance suggests an aging or degraded cell.

Question: Can I test multiple batteries simultaneously?

Answer: Yes, the 8-channel design allows for simultaneous testing of up to eight 18650 batteries.

Question: Does it automatically stop charging/discharging when complete?

Answer: Yes, the module features automatic stop functions based on set voltage limits or completion of the test cycle.

Image Alt Texts

[

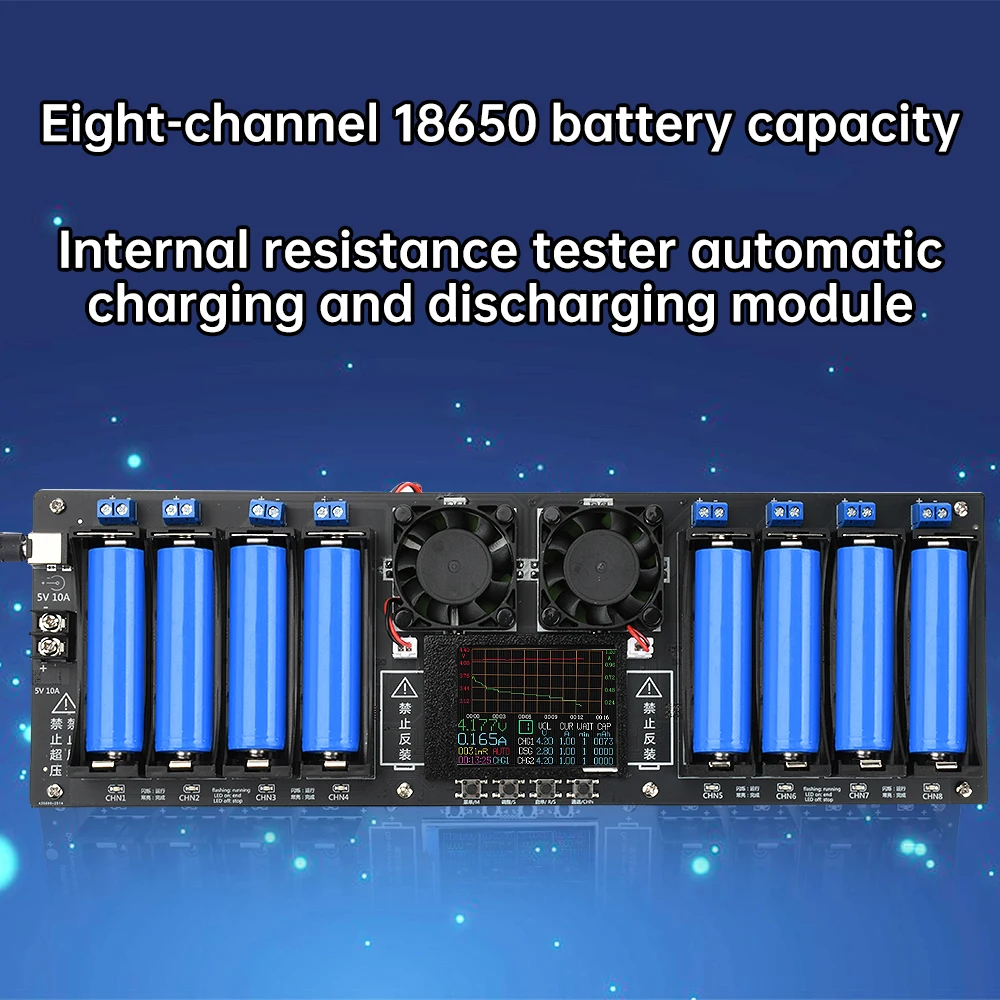

"Eight-channel 18650 battery capacity and internal resistance tester module with blue 18650 cells inserted, displaying real-time data on a dark background.",
