6-in-1 DIN Rail AC Power Monitor

Precision Under Load: Monitoring Your Electrical Backbone

The 6-in-1 DIN Rail AC Monitor is a robust and highly functional electrical measurement device, essential for any workshop or industrial setting requiring precise power consumption oversight. This unit provides a clear, real-time snapshot of critical electrical parameters, allowing tradespeople and facility managers to understand and manage their power usage effectively. Its design prioritizes both accuracy and ease of integration into existing electrical panels, a crucial consideration for any professional environment.

The core functionality of this device revolves around its ability to measure six key electrical metrics: voltage, current, active power, energy (KWH), frequency, and power factor. These readings are not merely numerical displays; they represent the health and efficiency of an electrical system. For a carpenter or any tradesperson relying on heavy machinery, understanding these metrics can prevent costly downtime and ensure optimal tool performance.

Unlike simpler voltmeters or ammeters, this monitor offers a comprehensive overview. It consolidates multiple measurement capabilities into a single, compact unit. This integration reduces clutter and simplifies the monitoring process, making it a superior choice for detailed electrical analysis.

Built for the Board: Installation and Durability

The physical construction of the monitor emphasizes its suitability for demanding environments. The device is housed in a durable white plastic casing, designed for DIN rail mounting. DIN rails are standardized metal rails widely used for mounting circuit breakers and industrial control equipment inside equipment racks and electrical enclosures. This mounting method ensures a secure and stable installation, resisting vibrations and accidental dislodgement common in busy workshops.

Installation is straightforward. The compact size of 79mm x 43mm x 43mm (approximately 3.11 x 1.69 x 1.69 inches) ensures it fits comfortably within most standard electrical panels without demanding excessive space. Wire connections are made via screw terminals, providing a reliable and robust electrical contact. Such a design is critical for long-term operational stability.

Compared to standalone meters that might require custom mounting or more complex wiring, the DIN rail compatibility of this monitor streamlines the setup. It integrates seamlessly into professional electrical installations. This means less time spent on installation and more time focused on the actual work, a significant advantage for any busy professional.

Clarity in the Chaos: The Display Advantage

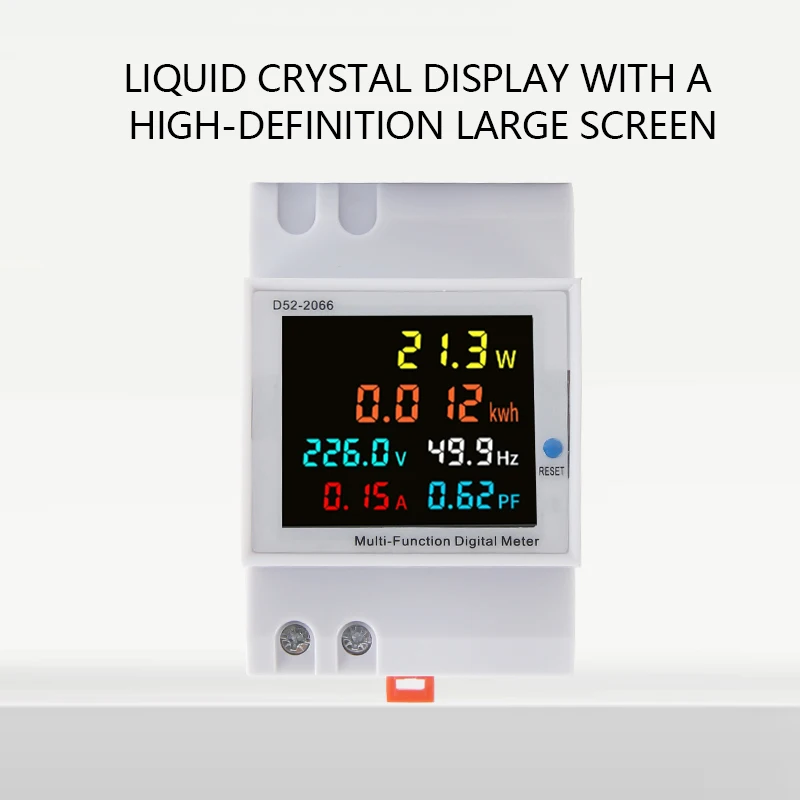

Central to the monitor's utility is its high-definition liquid crystal display (LCD). This isn't just a basic screen; it's a multi-color LED display that presents all six measured parameters simultaneously. Each parameter is assigned a distinct color – yellow for power (W), orange for energy (KWH), green for voltage (V) and frequency (Hz), and blue for current (A) and power factor (PF). This color-coding enhances readability significantly.

Readings are clear and large. The multi-color presentation allows for quick, at-a-glance interpretation of the data, even from a distance or in varied lighting conditions common on a job site. This is analogous to a carpenter needing to read precise measurements quickly and accurately from a tape measure; the display provides that same level of immediate clarity for electrical parameters. The display remains legible across different viewing angles, a practical benefit when the monitor is installed within an electrical panel that might not always be at eye level.

Unlike older single-color LCDs or analog meters, this multi-color digital display minimizes the potential for reading errors. It provides instant feedback on electrical status. This clarity supports proactive decision-making regarding power consumption and circuit load.

Beyond the Numbers: Practical Applications for the Tradesman

For a carpenter, understanding the power consumption of various tools is invaluable. This monitor can track the active power (W) drawn by a table saw, planer, or dust collector, helping to identify peak loads. The energy (KWH) reading accumulates total consumption over time, allowing for precise cost tracking and energy efficiency analysis for specific projects or an entire workshop. Knowing the KWH consumption can directly translate into operational cost savings.

Monitoring voltage (V) and frequency (Hz) ensures that tools are operating within their specified electrical parameters, preventing damage from undervoltage or overvoltage conditions. The current (A) measurement is crucial for preventing circuit overloads, a common safety concern in workshops with multiple high-draw tools. A high current reading indicates a potential issue.

Furthermore, the power factor (PF) measurement is particularly useful in industrial settings. A low power factor indicates inefficient use of electrical power, often due to inductive loads like motors. Improving the power factor can reduce electricity bills and improve the overall efficiency of the electrical system. This monitor provides the data needed to make informed decisions about power factor correction.

The Long-Term View: Efficiency and Safety

Implementing such a monitor offers significant long-term benefits beyond immediate data display. By continuously tracking energy consumption, users can identify energy-hungry equipment or inefficient operational practices. This data empowers informed decisions to optimize energy use, leading to reduced electricity bills and a smaller environmental footprint. It's an investment that pays dividends in operational savings.

Safety is another paramount concern addressed by continuous monitoring. Early detection of abnormal voltage or current levels can prevent equipment damage, electrical fires, or tripped breakers. The monitor acts as an early warning system, allowing for corrective action before minor issues escalate into major problems. This proactive approach to electrical safety is indispensable in any professional setting.

This monitor is not just a gadget; it is a critical component for modern electrical management. It provides the necessary data for optimizing performance, ensuring safety, and driving efficiency. Imagine the peace of mind knowing your workshop's electrical system is constantly monitored, allowing you to focus on your craft without worrying about hidden power inefficiencies or potential overloads. This device empowers users to take control of their electrical environment, making smarter decisions that benefit both their work and their bottom line.
