3:1 Adhesive-Lined Heat Shrink Tube

The Essential Shield: 3:1 Adhesive-Lined Heat Shrink Tubing for Solar Systems

The 3:1 Adhesive-Lined Heat Shrink Tube is a critical protective solution engineered for robust electrical insulation and environmental sealing, particularly within demanding applications like solar energy installations. This dual-wall polyolefin tubing, equipped with an internal adhesive layer, offers a superior alternative to conventional insulation methods, ensuring long-term reliability and safety for critical connections.

Unpacking the Core Technology

The fundamental characteristic of this product is its 3:1 shrink ratio. This means that when heat is applied, the tube will reduce to one-third of its original inner diameter. This high shrink ratio is not merely a specification; it directly translates to exceptional versatility, allowing a single tube size to accommodate a wider range of cable and connector dimensions. This flexibility minimizes inventory needs and simplifies selection for complex wiring projects. The ability to tightly conform to irregular shapes and varying diameters is a significant advantage.

Unlike standard heat shrink products, this variant features a dual-wall construction with an adhesive lining. The outer layer is a robust polyolefin, providing excellent electrical insulation, abrasion resistance, and protection against chemicals and UV radiation. The inner layer, a thermoplastic adhesive, melts and flows during the shrinking process, filling voids and creating a hermetic seal. This effectively prevents moisture ingress, corrosion, and reduces strain on connections. It's a comprehensive protective barrier.

Standard electrical tape, while common, often degrades under harsh environmental conditions, losing its adhesive properties and exposing conductors. This adhesive-lined heat shrink tube offers a permanent, weather-resistant solution that maintains its integrity over years, crucial for the exposed wiring in solar panel arrays. The material ensures lasting performance.

Engineered for Durability and Efficiency in Solar Applications

For solar energy hobbyists and professionals, the integrity of electrical connections is paramount. Exposed wires or poorly insulated terminals can lead to efficiency losses, system failures, and even fire hazards. This heat shrink tubing directly addresses these vulnerabilities by providing a robust, sealed enclosure for splices, terminals, and cable entries.

Consider a scenario where solar panel wiring is routed across rooftops or through conduit exposed to extreme temperatures, UV radiation, and moisture. Without adequate protection, the insulation can crack, allowing water to penetrate and corrosive elements to degrade copper conductors. This leads to increased resistance, voltage drops, and ultimately, reduced power output from the solar array. The system's lifespan is directly impacted.

Traditional heat shrink without adhesive offers good insulation but lacks the sealing capability against moisture. Standard electrical tape, while offering some initial protection, is prone to unwrapping, drying out, and becoming brittle over time, especially in direct sunlight. The dual-wall adhesive-lined tube provides a superior, long-term solution by creating a waterproof barrier that effectively encapsulates the connection, preserving its electrical properties and mechanical strength. This ensures peak performance.

Sizing and Application Precision

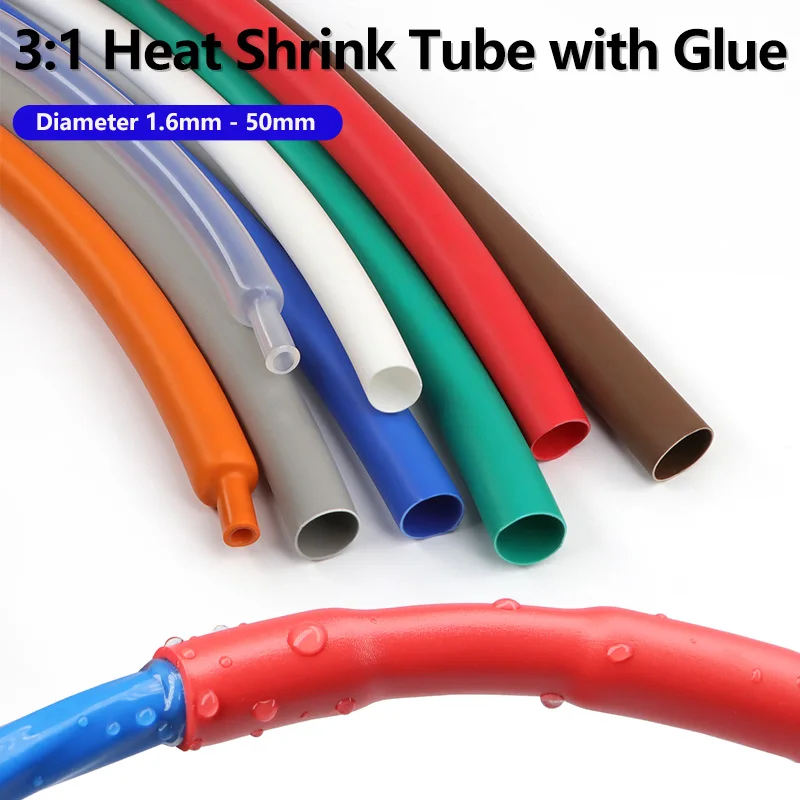

The product is available in a wide range of diameters, from 1.6mm up to 50mm, accommodating everything from small gauge control wires to larger battery bank cables. The images illustrate that smaller diameters (1.6mm-9.5mm) are typically supplied as round tubes, while larger diameters (12.7mm-65mm) are often provided as flat tubes, which expand into a round shape upon heating. This variety supports diverse project needs.

Accurate sizing is critical for optimal performance. The buyer notice clearly states that the advertised size refers to the *inner diameter* before shrinkage, not the outside diameter. It also provides a formula (OD = ID + WT*2) for calculating the outside diameter before shrinkage. This detail is important for ensuring the tube can slip over the component it needs to protect, while still shrinking down to a tight fit. Misjudging the size can compromise the seal.

Compared to guesswork with generic sizing, the detailed specification table provided in the product images is invaluable. It outlines the inner diameter, wall thickness, and recommended fit-for-wire diameter both before and after shrinkage. This level of detail allows for precise selection, ensuring a snug fit and effective adhesive flow, which is crucial for maximizing the protective benefits. The right fit is everything.

Ease of Use and Aesthetic Integration

One significant advantage highlighted is the lower shrink temperature required for application. This means a standard heat gun is sufficient, making the product accessible for most users without specialized, high-temperature equipment. The process involves simply sliding the tube over the connection and applying even heat until it shrinks and the adhesive flows. It's a straightforward process.

The availability of multiple colors (red, white, black, orange, green, blue, yellow, brown) is not just an aesthetic choice; it's a practical feature for circuit identification and organization. In complex solar installations, color-coding positive, negative, ground, or different circuit branches can significantly improve safety during maintenance and troubleshooting. This promotes clear system management.

Unlike messy liquid electrical tape or cumbersome multi-layer wraps, this heat shrink provides a clean, professional finish. The smooth, uniform surface not only looks better but also reduces points where dirt or debris can accumulate, further enhancing its durability and ease of inspection. A neat installation is a reliable installation.

The Long-Term Value Proposition

The initial cost of adhesive-lined heat shrink tubing might be slightly higher than basic electrical tape or non-adhesive shrink tubing. However, this perspective shifts dramatically when considering the long-term value and return on investment. The superior protection against environmental degradation, moisture, and mechanical stress translates directly into extended component lifespan and reduced maintenance frequency for solar installations. This saves money over time.

Preventing just one instance of corrosion-induced failure or short circuit in a solar array can easily offset the cost of using premium heat shrink on dozens of connections. The peace of mind that comes from knowing critical wiring is securely sealed against the elements is invaluable, especially for off-grid systems where reliability is paramount. It protects your investment.

For those building or maintaining self-sustaining energy systems, verifying compatibility with existing solar setups and calculating efficiency losses are key considerations. This tubing directly contributes to maintaining system efficiency by preventing resistive losses at connection points and ensuring consistent power flow. It is a small component with a large impact on overall system performance. The choice is clear.

Imagine your solar array, silently generating power, with every critical electrical connection meticulously protected against the harshest weather. Envision the confidence of knowing that moisture, UV radiation, and abrasion are no match for the robust, hermetic seals provided by this adhesive-lined tubing. Picture a system that performs optimally for years, minimizing maintenance and maximizing energy harvest, all thanks to the foundational integrity of its wiring. This product ensures that vision becomes reality, securing your energy independence with unwavering reliability and a professional finish that speaks volumes about the quality of your work.
